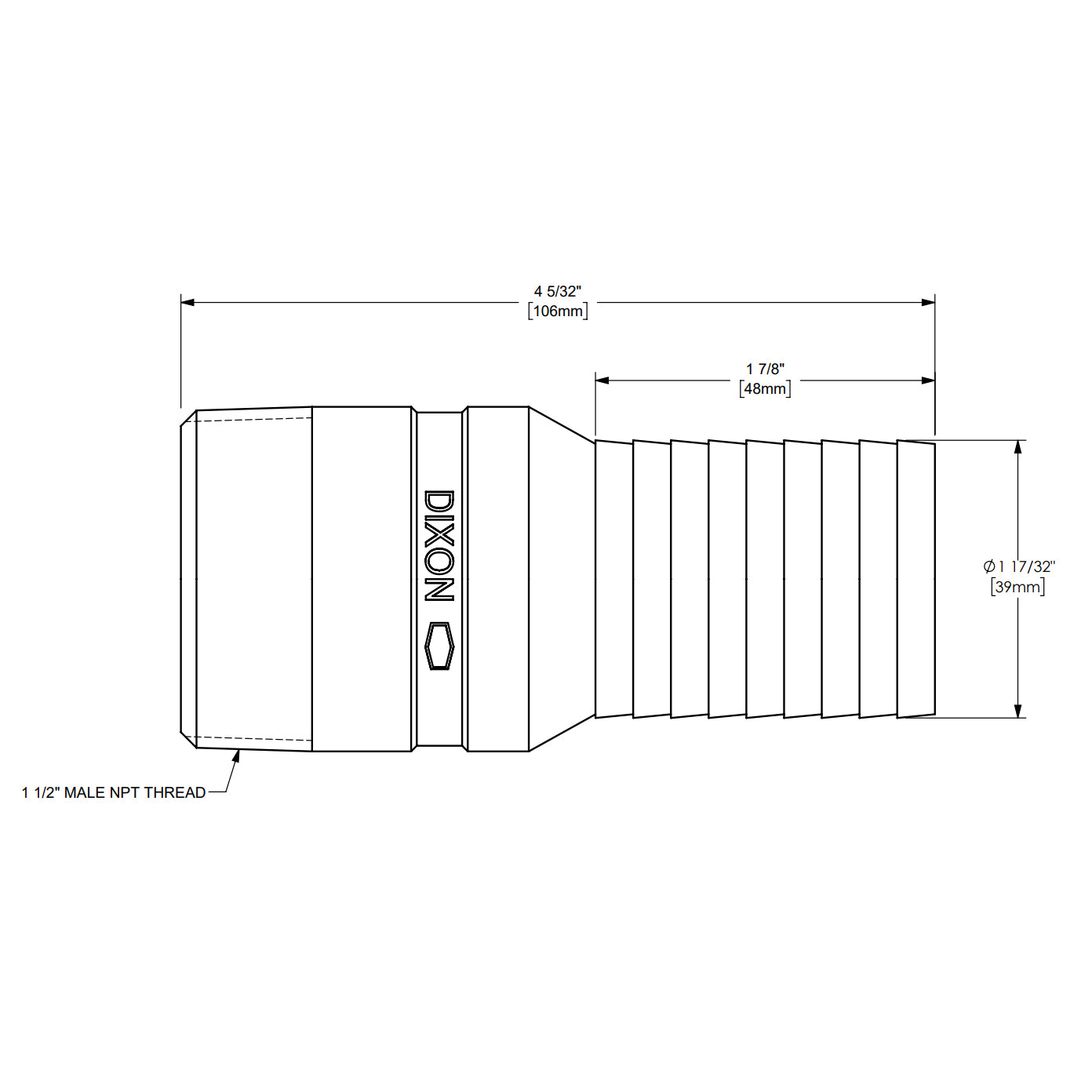

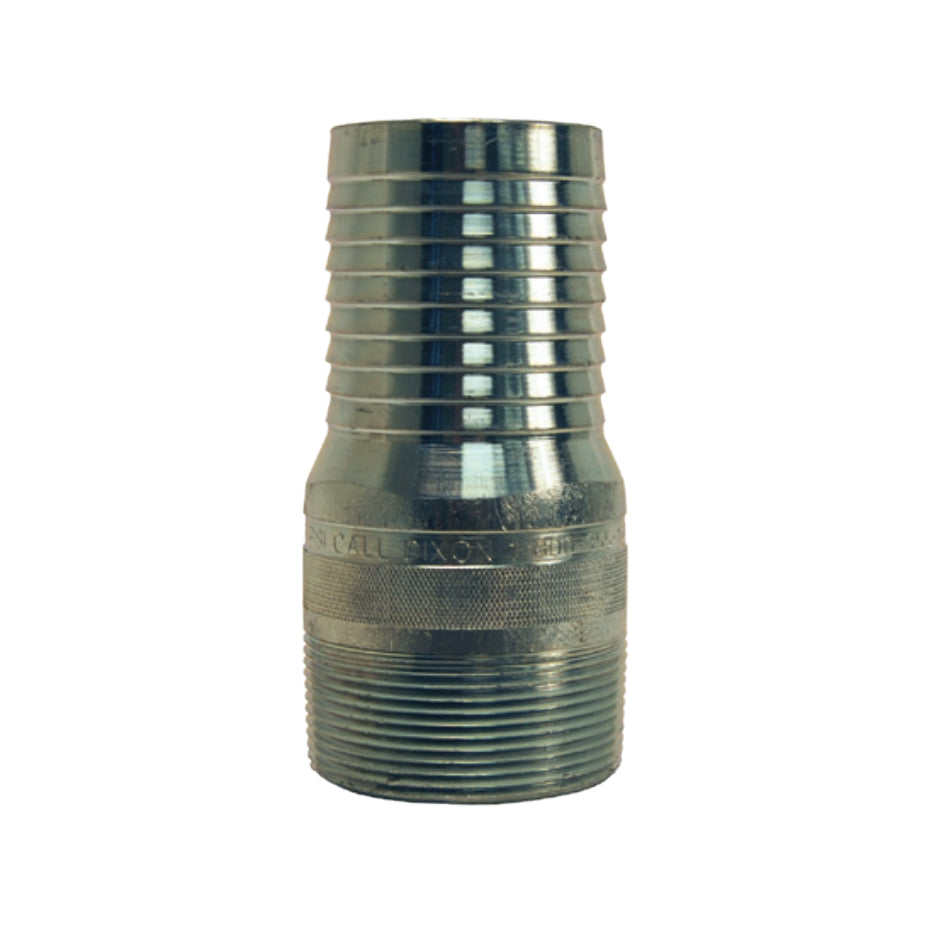

Dixon Valve ST20 - 1-1/2" King Combination Unplated Steel Nipple - NPT End with Knurled Wrench Grip

The working pressure may vary with the construction of the hose, the type of clamping system used and the application. Consult Dixon for recommendations.

Features

• In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement. For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
• Recommended for low-pressure discharge and suction service for compatible liquids
• NPT threaded end with knurled wrench grip
• King Combination Nipples are not recommended for steam.
• Not for compressible products such as air or nitrogen
• Crimp sleeves are available and recommended for reliable assemblies.
• Size: 1-1/4" (32 mm)
• Material: Unplated Steel
• Weight: 0.45 lbs

PZZSB12144
