Specification Sheet

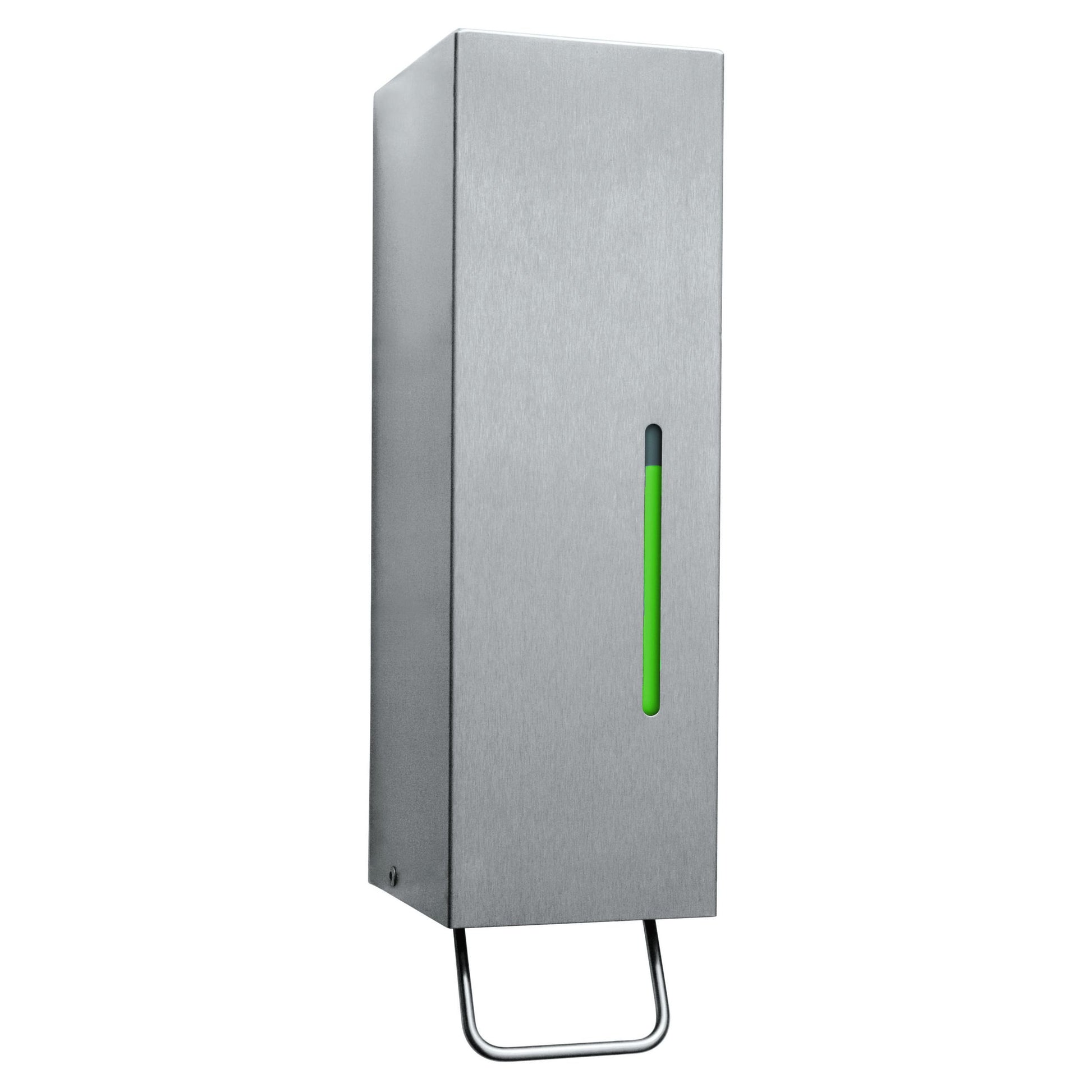

Surface-Mounted Foam Soap Dispenser- Satin-finish stainless steel

Features:

• Satin-finish stainless steel.
• Accepts foam soap cartridges* or bulk-fill foam soaps.
• Push activated with less than 5lb/22.2N of force. Capacity: 500ml/17 fl-oz.
• Concealed wall fastening.
• Hinged housing with key lock and soap refill window.
• 96mm x 298mm x 153mm.

Materials:

• Welded, 0.8mm (22 gauge) 1.4301, Typ CrNi 18/10
• AISI 304 stainless steel housing with satin finish
• Stainless steel operating lever; metal lock and key
• Soap level indicator
• Interchangeable plastic containers with plastic pumps
• Variety of plastic containers available including containers with pumps for soap or foam.

Operation:

• The cover is lockable with a Bobrick System lock. To refill the dispenser, open the cover by lifting and pulling forward. The soap level
  indicator shows how much product is remaining in the dispenser. The plastic container can be removed and re-installed for quick and
  easy refilling of up to 500 ml of bulk foam soap. Alternatively, soap can be poured directly into the plastic container. The dispenser has
  been designed for quick and easy refilling process.

*Please note, compatible cartridges are commercially available in select countries outside the USA. Bobrick does not supply cartridges. Product can be bulk-filled.
