Specification Sheet

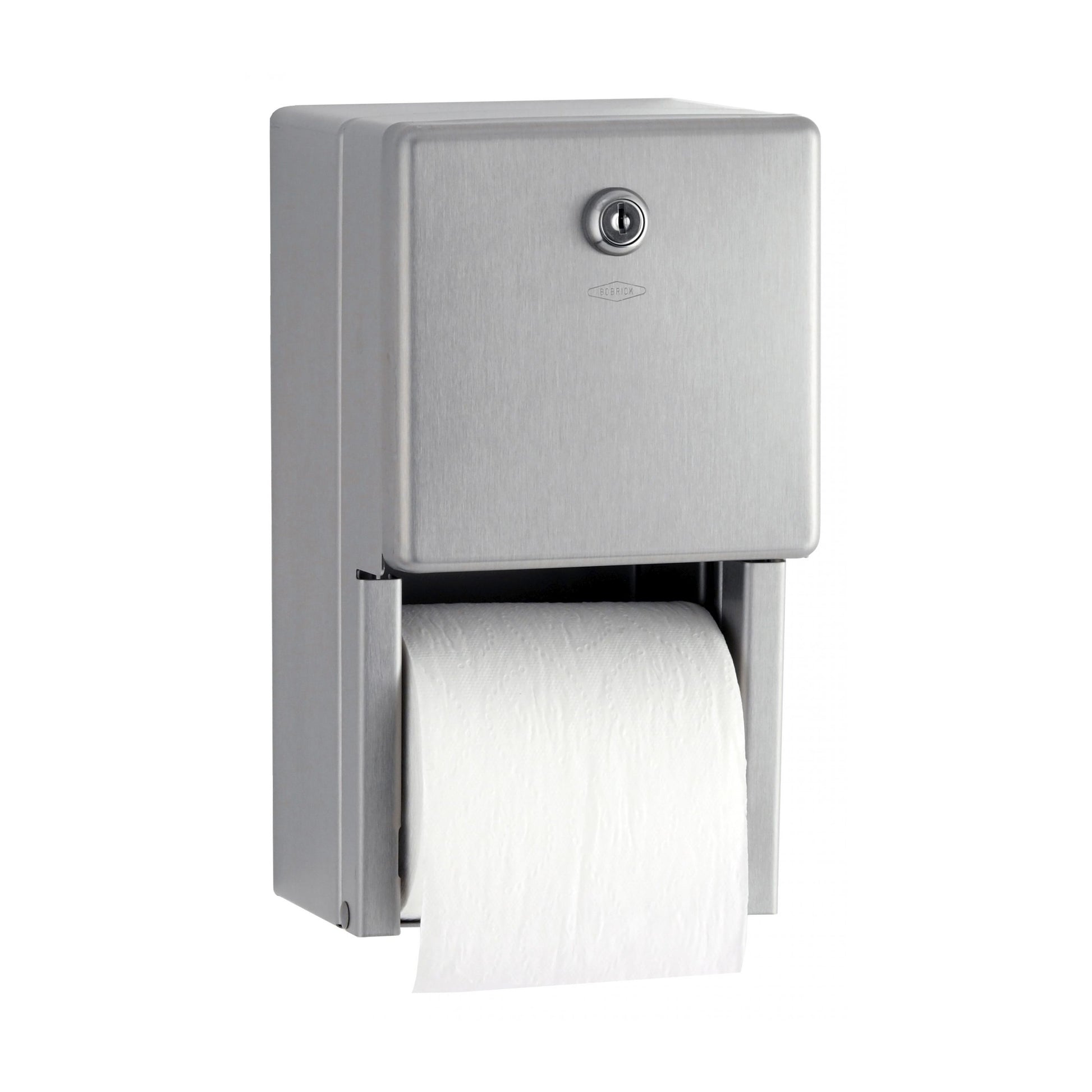

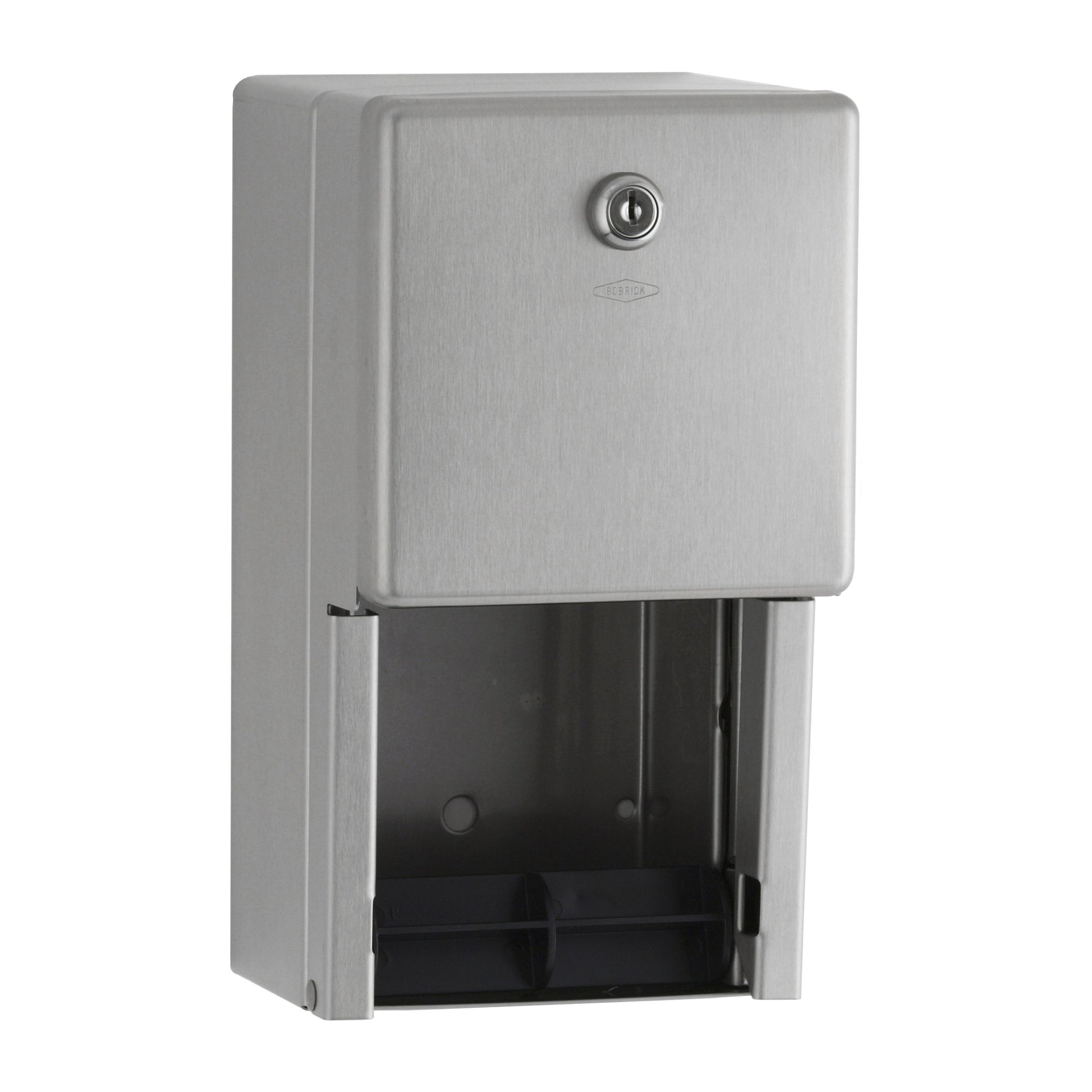

Surface-Mounted Multi-Roll Toilet Tissue Dispenser

Features:

• Satin-finish stainless steel unit with stainless steel dispensing mechanism.
• Door has flat face with protruding tumbler lock.
• Holds two rolls up to 5 1/4" (135mm) diameter (1800 sheets).
• Extra roll automatically drops in place when bottom roll is depleted.
• Theft-resistant, heavy-duty spindles.

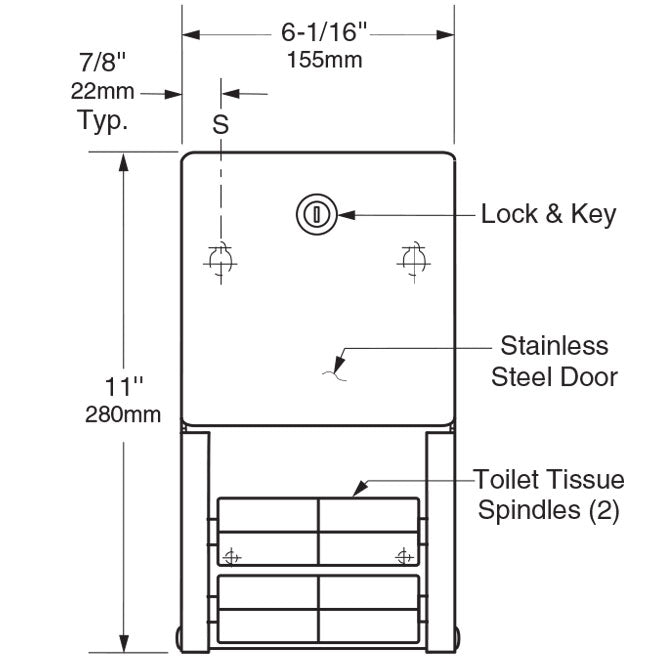

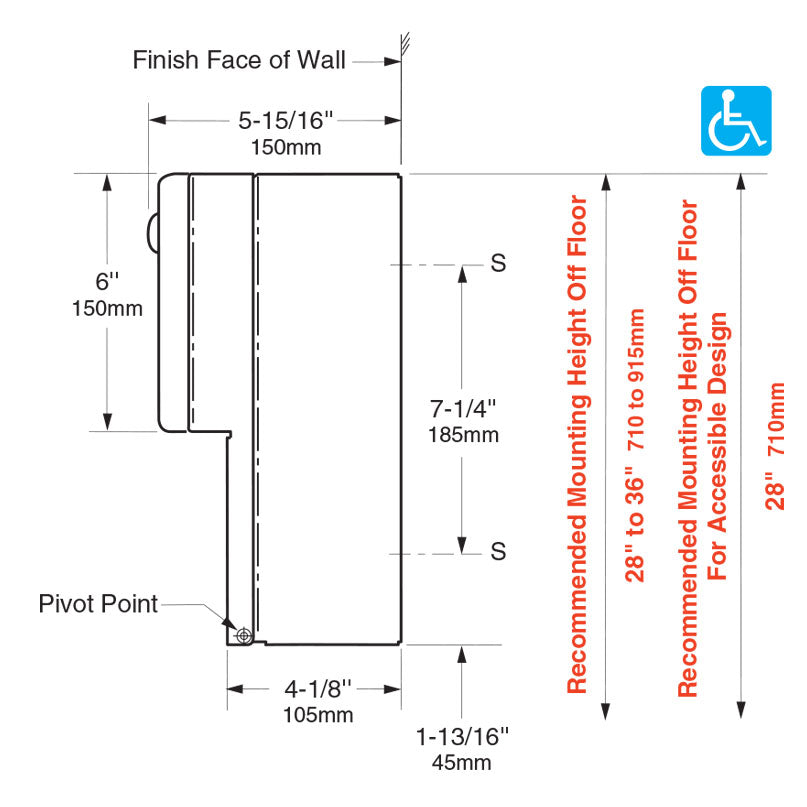

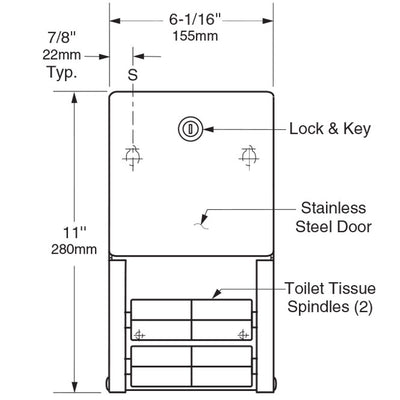

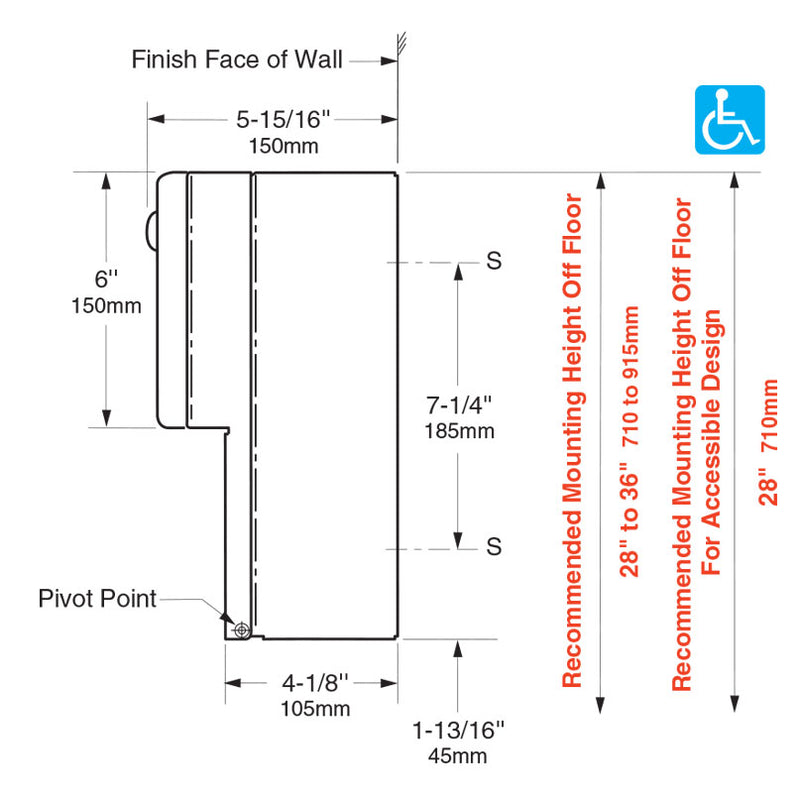

• Unit 6 1/16" W, 11" H, 5 15/16" D (155 x 280 x 150mm).

Materials:

• Cabinet — 18-8, type-304, 22-gauge (0.8mm) stainless steel. All-welded construction. Exposed surfaces have satin finish.
• Door — 18-8, type-304, 22-gauge (0.8mm) stainless steel with 18-gauge (1.2mm) stainless steel door frame. Exposed surfaces have satin finish. Front of door is drawn, one-piece, seamless construction. Secured to cabinet with two rivets. Equipped with a tumbler lock keyed like other Bobrick washroom accessories.
• Dispensing Mechanism, Inner Housing and Cam — 18-8, type-304, 18-gauge (1.2mm) stainless steel.
• Spindles (2) — Heavy-duty, one-piece, molded ABS. Theft-resistant. Retained in dispensing mechanism when door is locked.

Operation:

• Unit holds two standard-core toilet tissue rolls up to 5-1/4" (133mm) diameter (1800 sheets). Tissue rolls are loaded and locked into dispensing mechanism. Extra roll automatically drops in place when bottom roll is depleted. Depleted rolls can only be removed after unlocking door.
