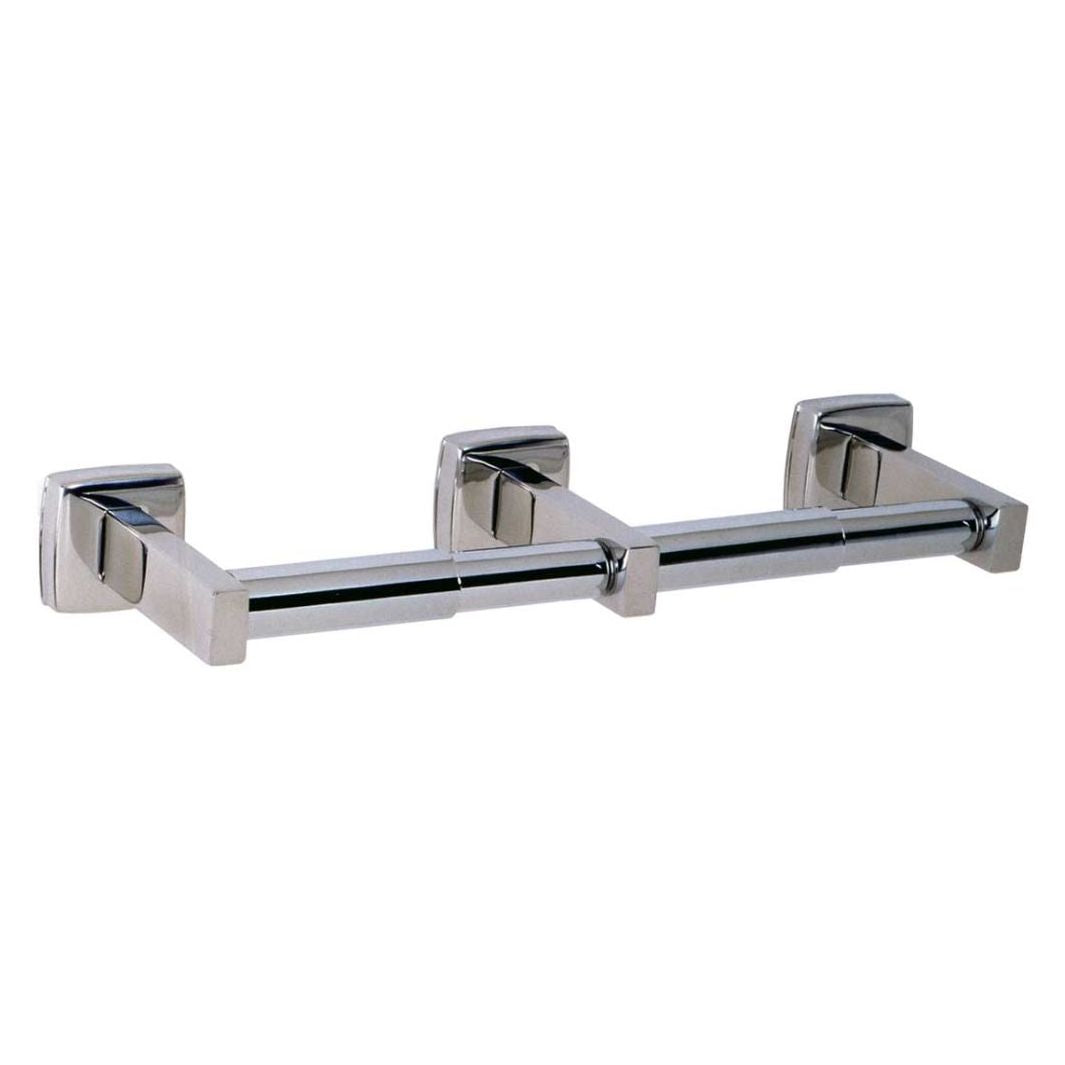

Surface-Mounted Toilet Tissue Dispenser-Satin

Features:

• Satin stainless steel surface mounted toilet tissue dispense
• Double-roll toilet tissue dispenser shall be type-304 stainless steel with satin finish
• Unit shall accommodate two standard-core toilet paper rolls up to 5-1/2" diameter
• Spindles shall be equipped with heavy-duty internal springs
• Measures 12-1/2" width by 2" height

Materials:

• Flanges & Support Arms (3) -— 18-8, Type-304, 22-gauge (0.8mm) stainless steel. Each flange has a concealed, 18-gauge (1.2mm) stainless steel mounting bracket. All-welded construction. Secured to wall plate with a stainless steel setscrew.
• Concealed Wall Plates (3) — 18-8, Type-304, 19-gauge (1.0mm) stainless steel.
• Spindles (2) — Chrome-plated plastic. Equipped with heavy-duty internal spring.

Installation:

• To remove concealed wall plates from back of flanges and mounting brackets, loosen setscrews. Mount each wall plate with prongs at top; secure with sheet-metal screws, furnished by manufacturer, at points indicated by an S. Engage mounting brackets onto prongs of wall plate, then secure into position by tightening setscrews at bottom of flanges.

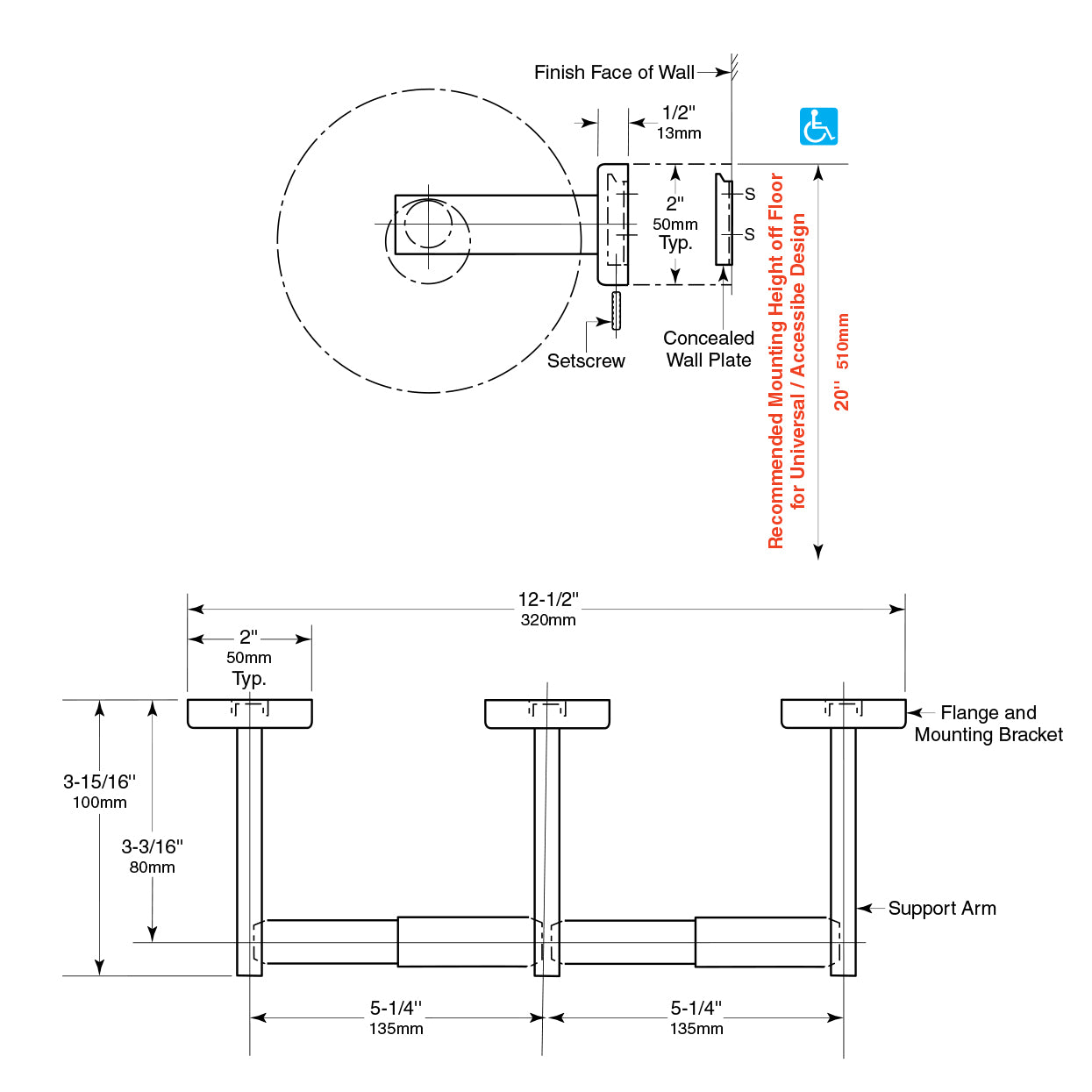

• Note: Centerline-to-centerline of concealed wall plates must be within 1/16'' (1.6mm) of dimension shown.
• For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure the unit with sheet-metal screws furnished. For other wall surfaces, provide fi ber plugs or expansion shields for use with sheet-metal screws furnished by manufacturer, or provide 1/8'' (3mm) toggle bolts or expansion bolts.
• For partitions with particle-board or other solid core, secure with sheet-metal screws furnished, or provide through-bolts, nuts, and washers. For hollow-core metal partitions, provide solid backing into which the furnished sheet-metal screws can be secured.
