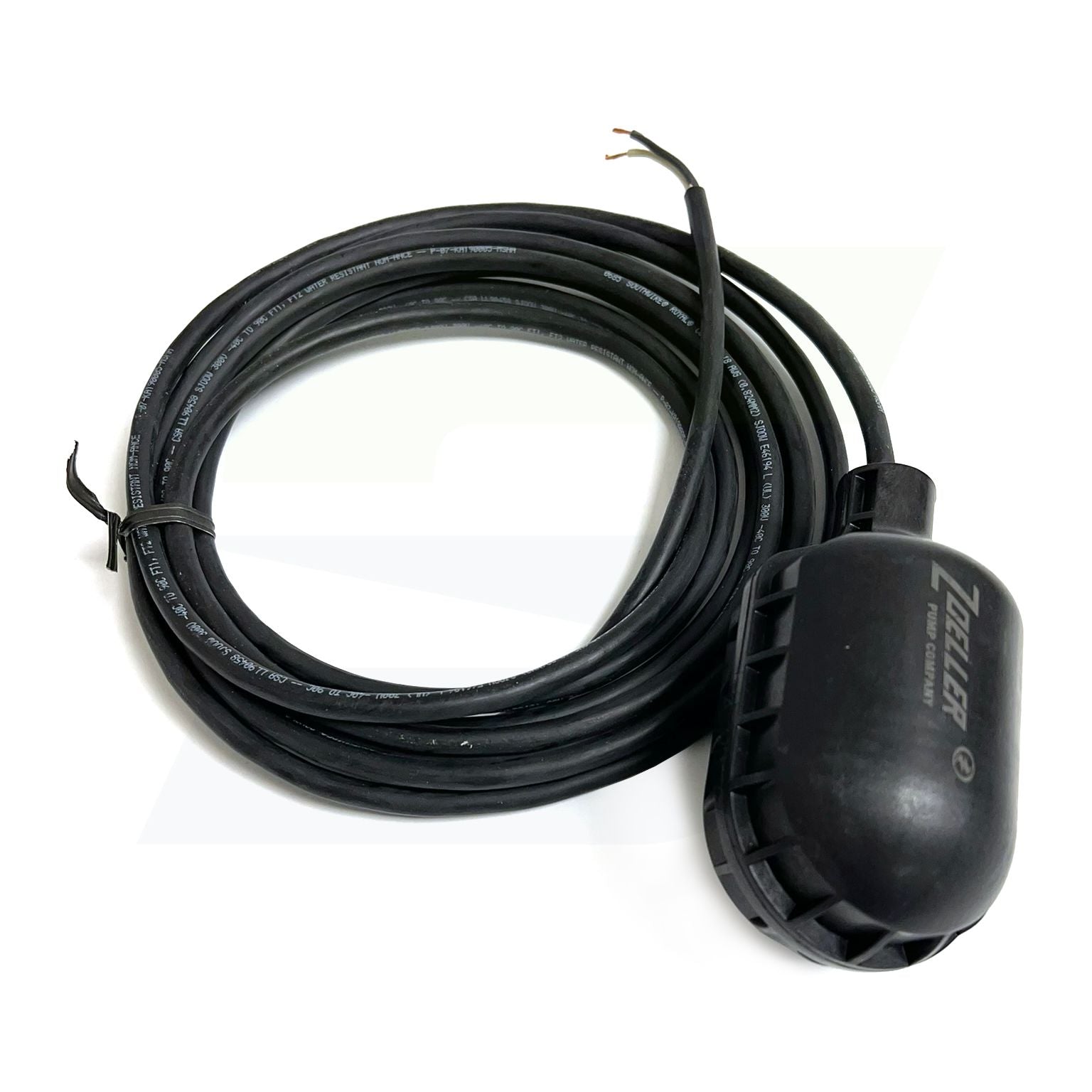

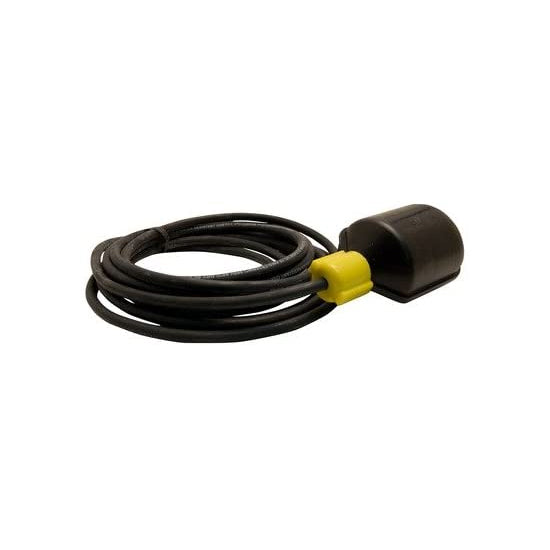

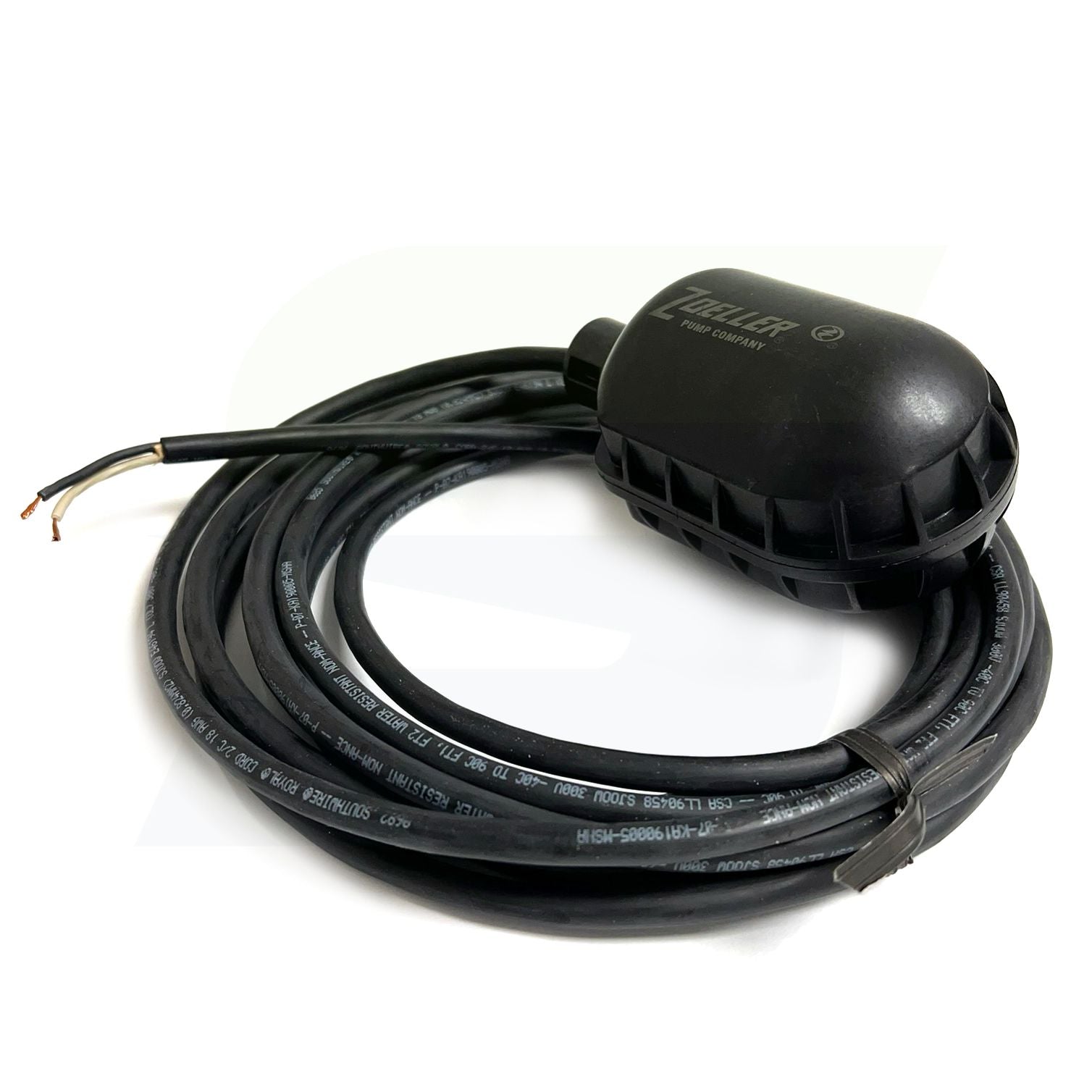

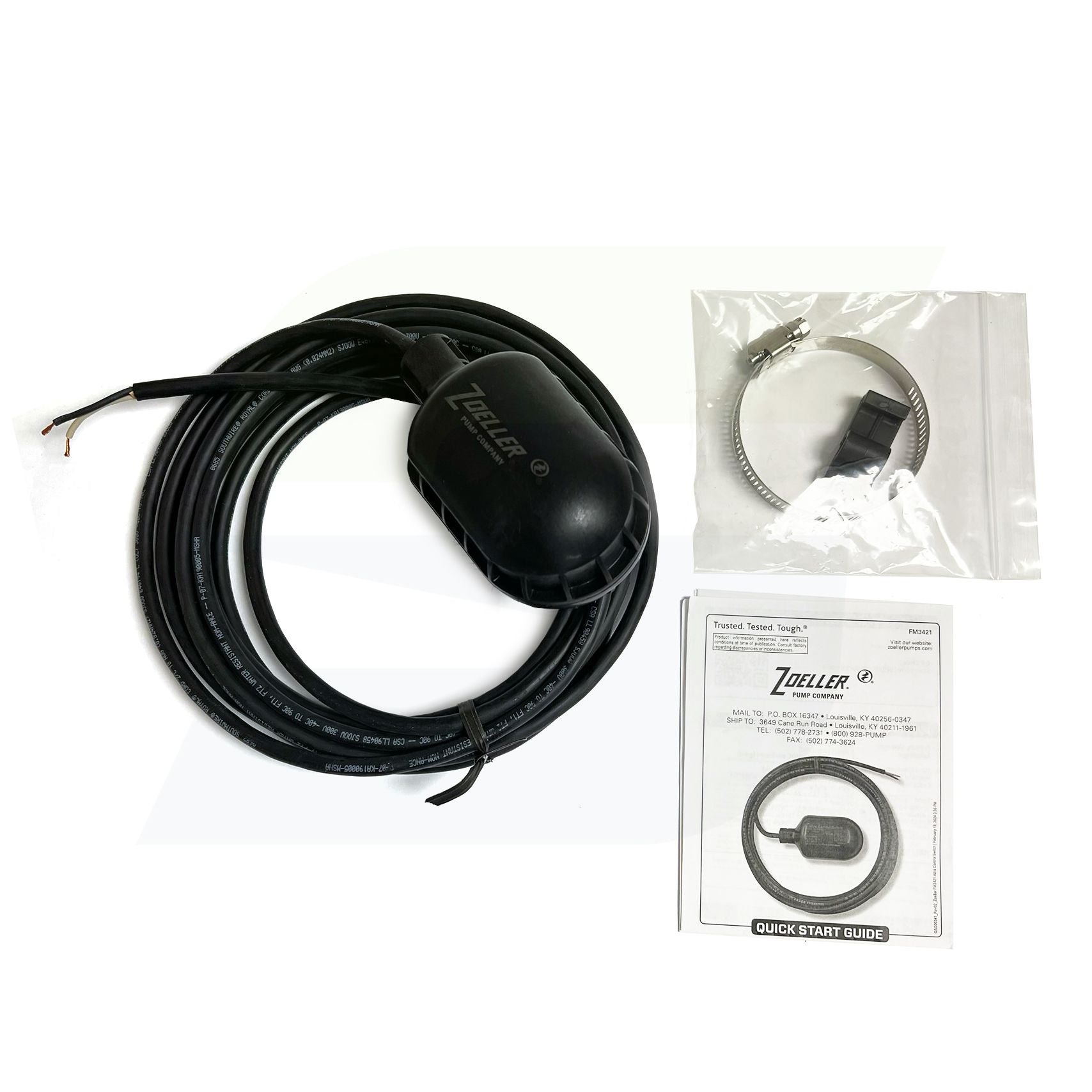

Zoeller 10-0743 - Variable Level Control Switch w/ 15 Ft Cord

Applications

• Simplex or duplex pump control and high level alarm on electrical alternating control panel systems
• For dewatering, effluent and sewage applications
• Switch for APak

Specifications

• Float is constructed of durable PVC/polypropylene
• Standard mechanical variable level control switches are rated for 115/230 V, 5 Amps
• Low-current, mechanical variable level control switches are rated for 125 VAC/30 VDC, 0.1 Amps
• 18/2 Type SJOW CPE cord standard
• 15 Ft cord
• Temperature rating of 140 degrees F
• Approximately 1.5" (38 mm) liquid level differential in switching action
• Adjustable Housing: (P/N 10-0689) provides an accurate pivot point for suspended float switches.
  • Gripping teeth on clip and weight channel securely lock float cable into place
  • Cable weight can be adjusted without the use of tools
• Housing: 1lb 12oz, 2.8" x 3.3" impact-resistant and non-corrodible PVC housing for liquids up to 140 degrees F
• Clip: injection-molded acetal plastic
• Shipping Weight: 2 lbs
