Specification Sheet

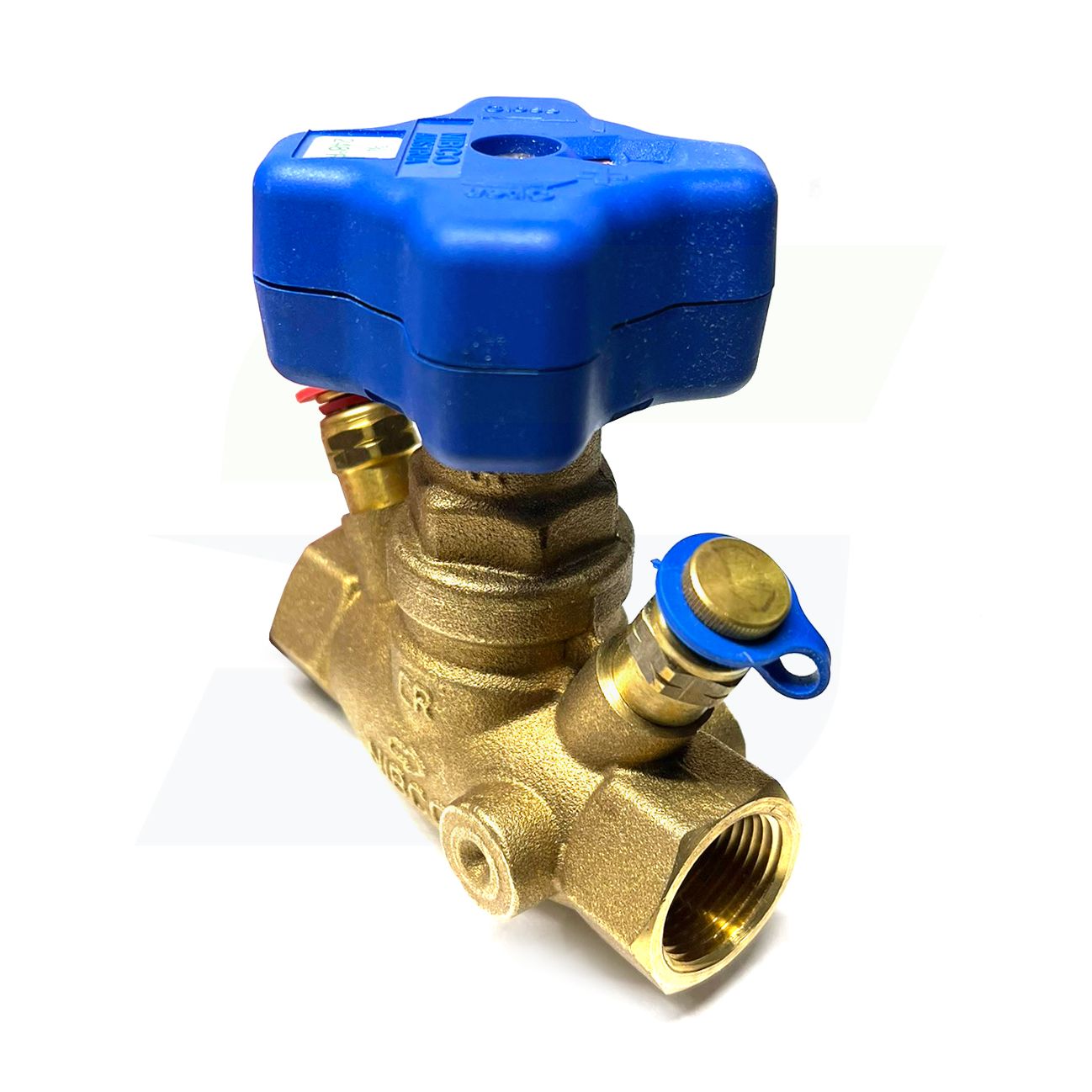

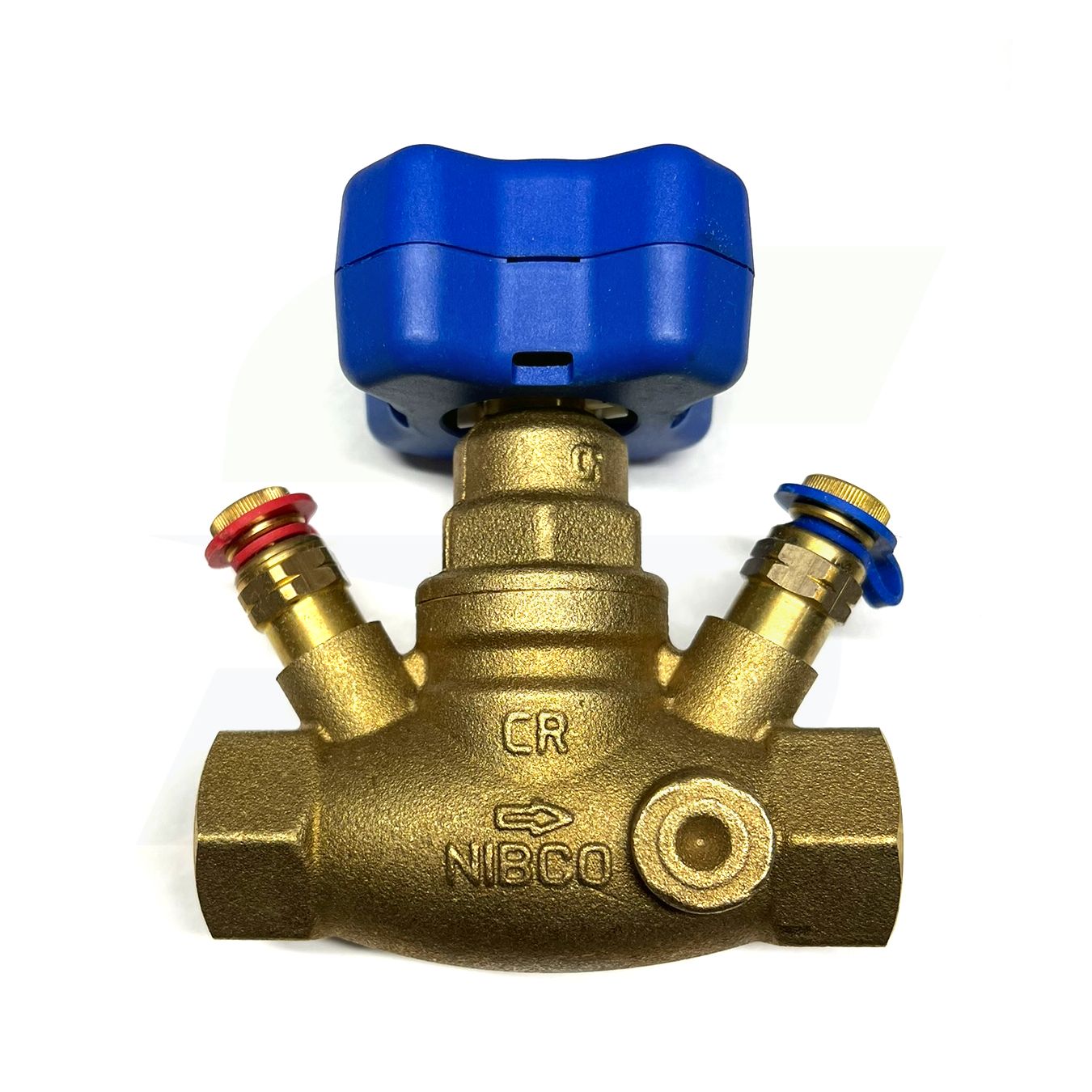

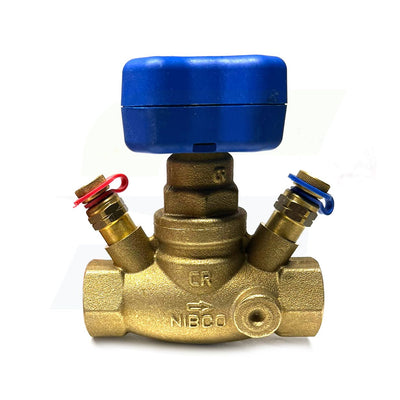

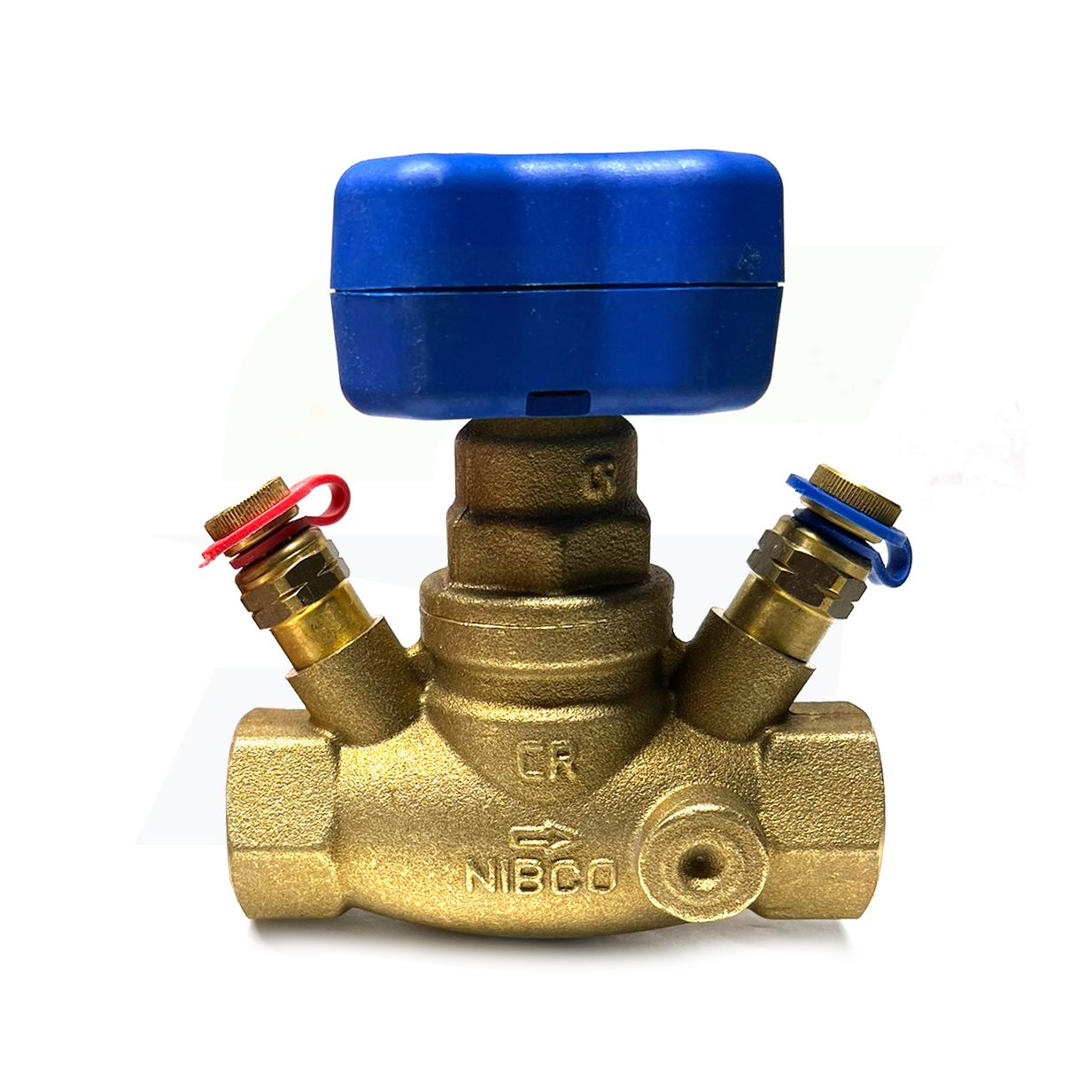

Nibco T-1710 DZR Brass Variable Orifice Balancing Valve

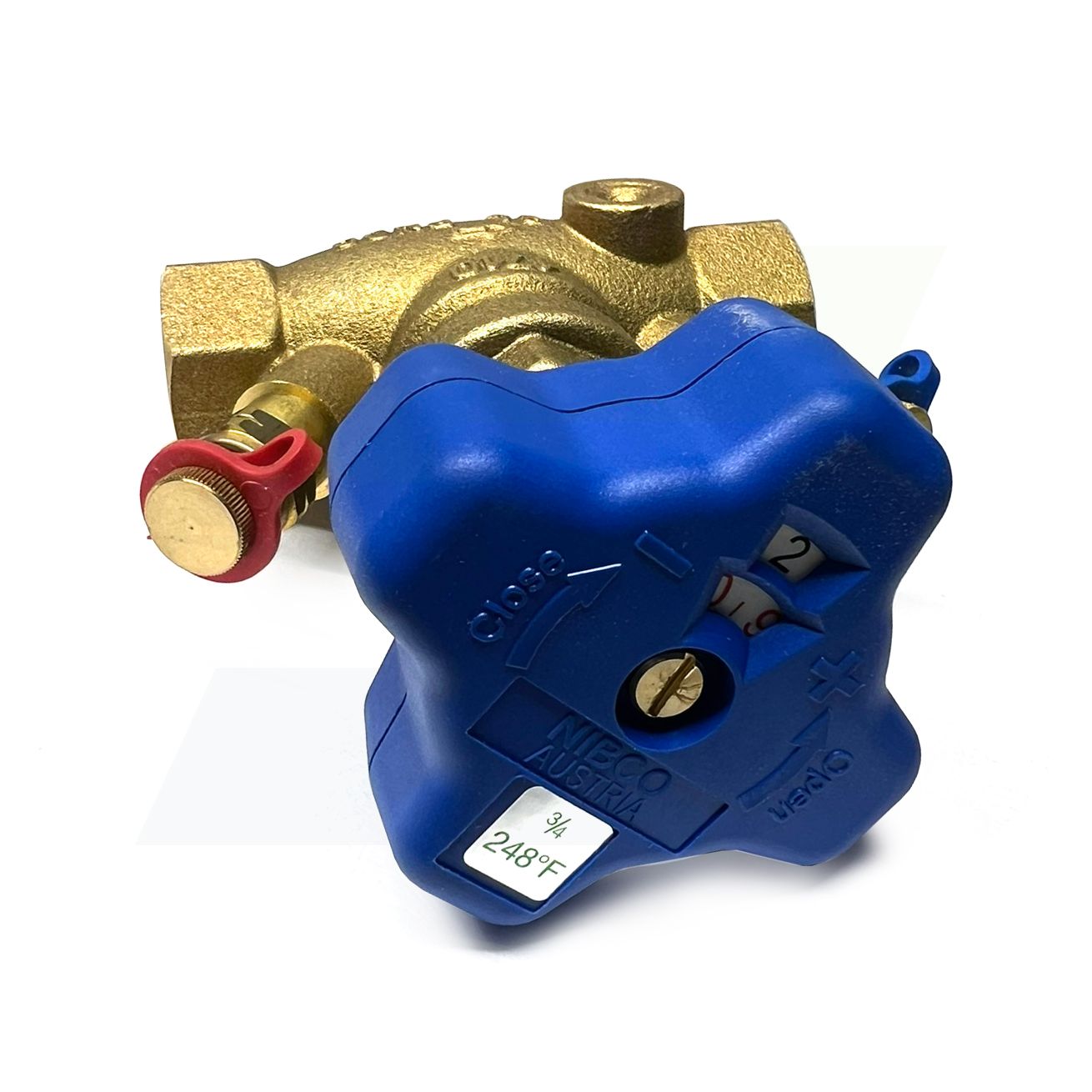

The NIBCO circuit balancing valve features a dezincification resistant brass body, bonnet and trim. It is a "T" pattern globe style valve offering improved flow measurement accuracy. With unequalled regulation performance and accuracy across all valve positions, the valve offers positive shutoff and isolation. The valve position is clearly visible in the handwheel display window.

Features

• 240 psi non-shock cold working pressure
• Maximum Temperature 250 degrees F at 240 psi
• EPDM O-ring
• Two integral test ports
• Dezincification resistant
• Female NPT thread end connection
• Use in U.S. drinking water applications is prohibited after January 3, 2014
• FLO-BOSS MV

Models

• NL1X006: 1/2"
• NL1X008: 3/4"
• NL1X00A: 1"
• NL1X00B: 1-1/4"
• NL1X00C: 1-1/2"
• NL1X00D: 2"
