Specification Sheet

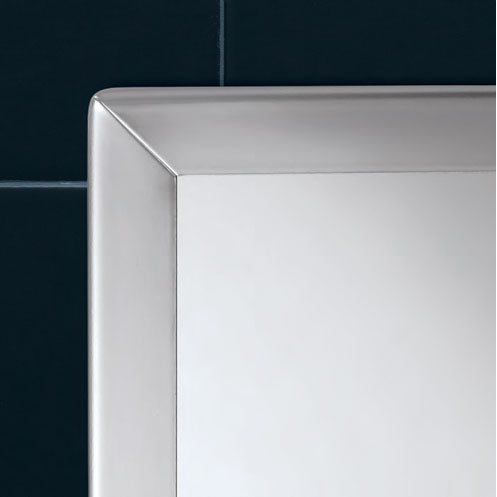

Tempered Glass Channel Frame Mirror 18" W x 30" H (46 x 76cm)

One-piece, 1/2" x 1/2" x 3/8" (13 x 13 x 9.5mm) channel-frame. Type 430 stainless steel with bright-polished finish. Mitered corners. Frame screw permits easy replacement of glass. 1/4" (6mm) tempered glass mirror. Galvanized steel back. Secured to concealed wall hanger with theft-resistant mounting. Tempered glass mirrors resist breakage and provide a measure of safety from broken glass, but differ in color and reflective quality from standard glass mirrors. Bobrick uses the highest quality tempered glass mirrors. Modest distortion or heat-generated markings are normal in the tempered glass mirror manufacturing process. Therefore, Bobrick will not accept returns of tempered glass mirrors with random distortion or markings.

Materials:

• Frame — Type-430 stainless steel, 1/2" x 1/2" x 3/8" (13 x 13 x 9.5mm) channel with bright polished finish for snap locking design; 1/2" x 1/2" x 1/2" (13 x 13 x 13mm) channel for "2S" Tab Design. One-piece frame with 90° mitered corners. Galvanized back has integral horizontal hanging brackets near the top for hanging the mirror and near the bottom to prevent the bottom of the mirror from pulling away from the wall. Double-sided tape secures mirror to concealed wall hanger.
• Mirror — No. 1 quality, 1/4" (6mm) tempered select float glass: selected for silvering and electrolytically copper-plated by the galvanic process.
• Note: These reflective surfaces resist breakage and provide a measure of safety from broken glass, but differ in color and reflective quality from standard glass mirrors.
• Backs of all glass mirrors are protected by full-size, shock-absorbing, water-resistant, nonabrasive, polyethylene padding. Concealed Wall Hanger(s) — For snap locking design: Heavy gauge steel construction. Incorporates upper and lower members, which engage backplate louvers to keep mirror against the wall. For "2S"-Tab design: Incorporates upper bracket engaging in upper louver and double sided tape below the bottom louver securing mirror to concealed wall hanger.

Installation:

• Mount wall hanger on wall with screws (not furnished) at points indicated by an S. For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure wall hanger with screws (not furnished). For other wall surfaces, provide fiber plugs or expansion shields for use with screws (not furnished), or provide 1/8" (3mm) toggle bolts or expansion bolts.
