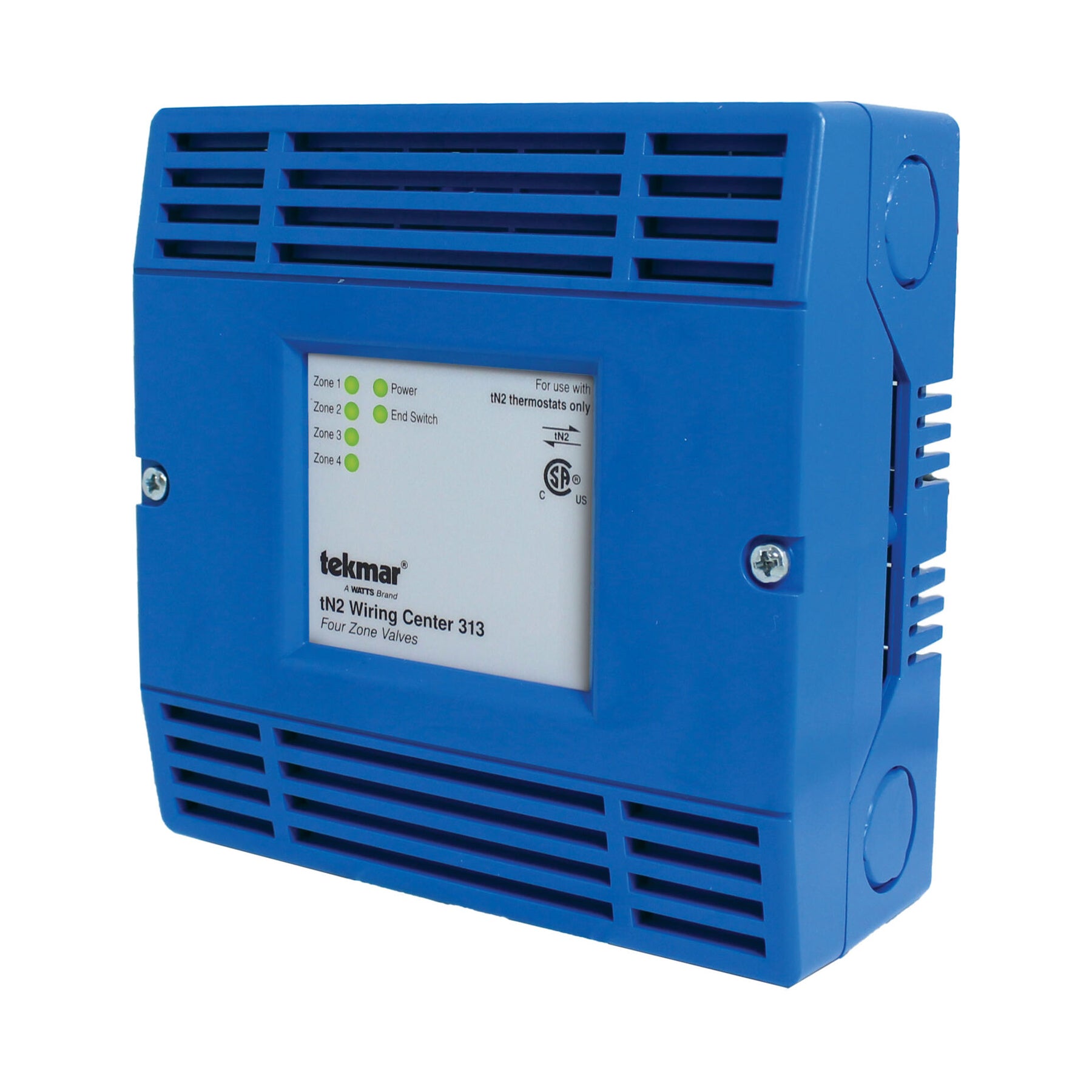

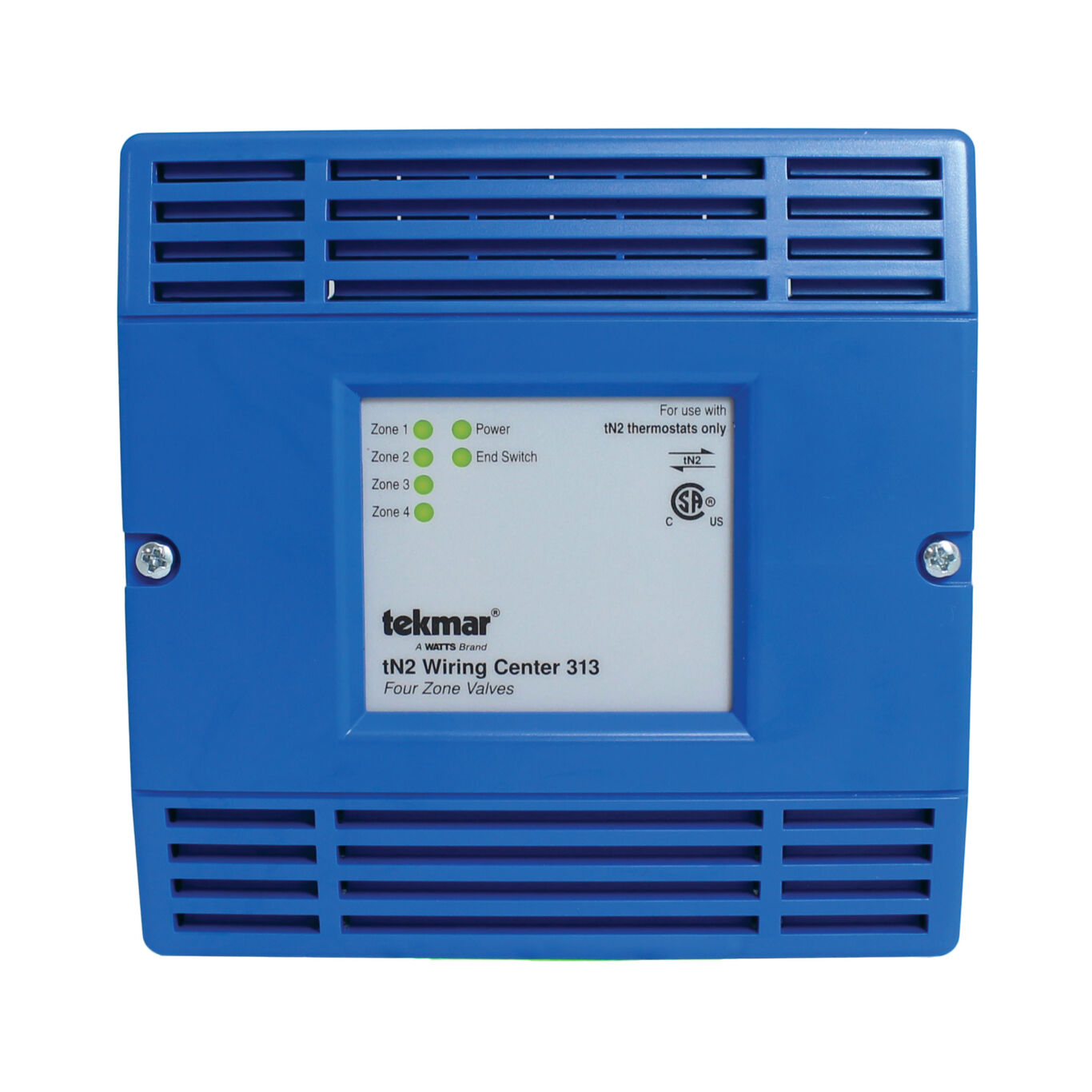

The tekmarNet® 2 Wiring Center 313 is designed to provide a zoning solution for heating systems. It can be used in applications ranging from baseboard zones, to remote manifolds for radiant heating. This product provides power for up to four tekmarNet ® 2 thermostats, and up to four 24 V (ac) zones valve outputs, as well as providing an end switch closure to enable an external device such as a boiler. A line voltage output on the back of the control can operate a zone group pump if required. An outdoor sensor input is included and provides the outdoor air temperature reading on each thermostat when an optional outdoor sensor is installed.

Features

• CSA C US certified for use in USA and Canada
• Powered zone group pump output
• External diagnostic LEDs
• tN4 expansion terminals
• Supports two-stage tekmarNet® 2 thermostats
• Outdoor sensor input
• Only requires 2 wires per zone, four 24 V (ac) powered zone outputs
• For use with tekmarNet® 2 thermostats only
• Isolated end switch

Specifications

• Agency Approvals: CSA C US, meets class B: ICES & FCC Part 15
• Ambient Conditions: Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing
• Control Type: Microprocessor control, this is not a safety (limit) control

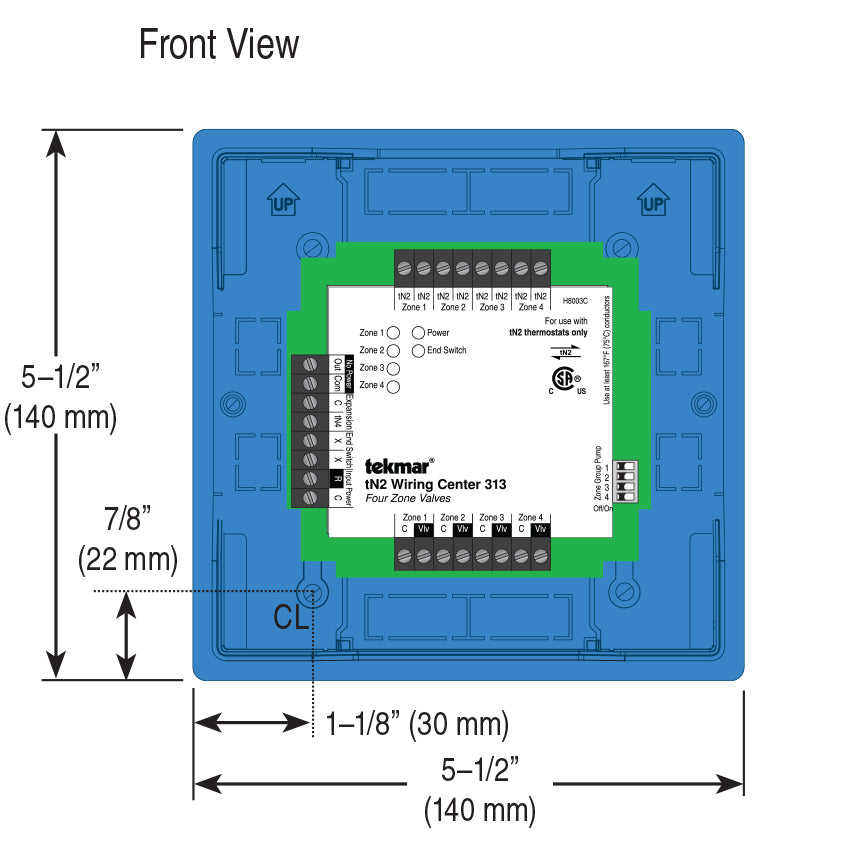

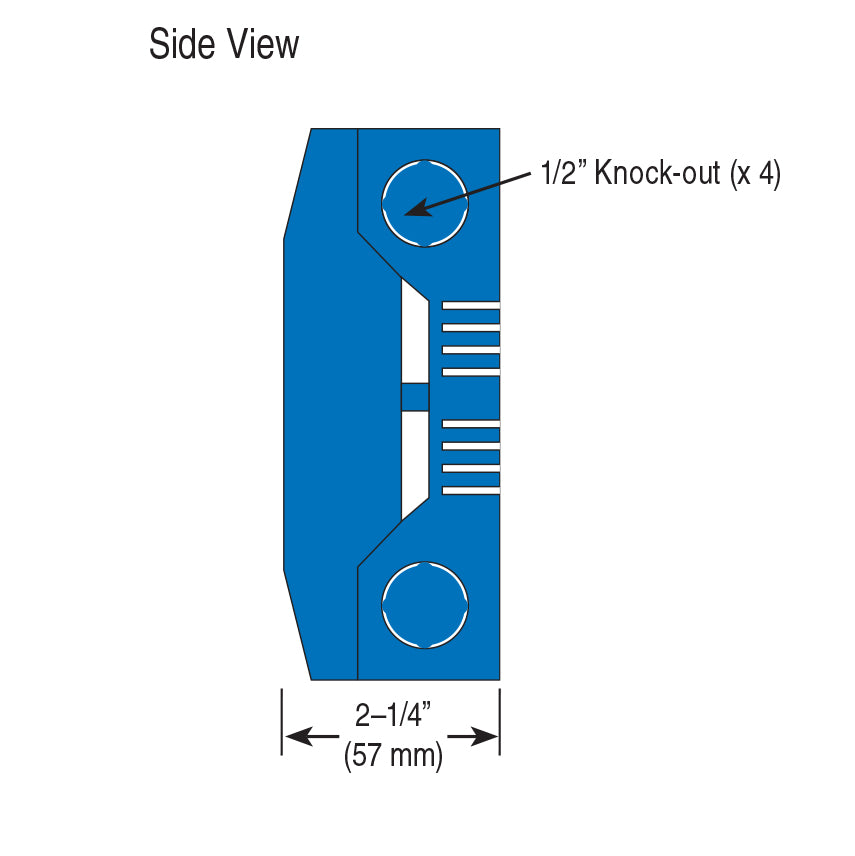

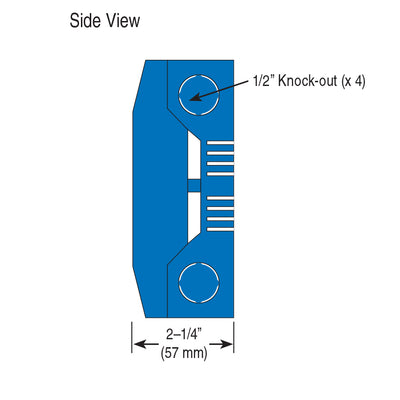

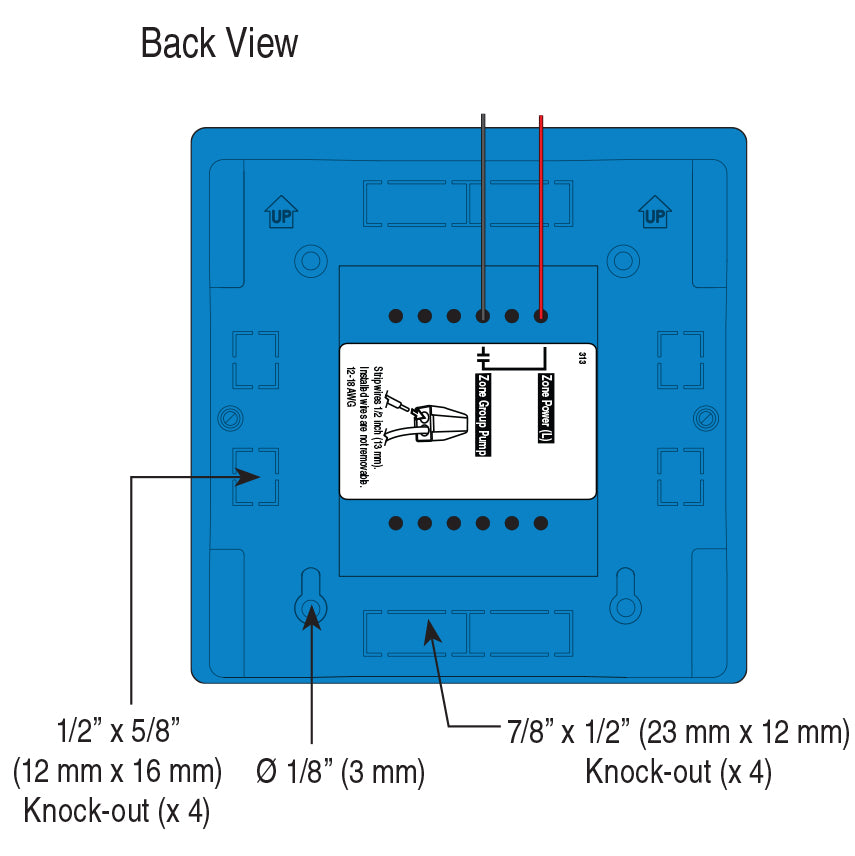

• Dimensions: 5.5" H x 5.5" W x 2.25" D (140 x 140 x 57 mm)
• Enclosure Material: Blue PC+ABS plastic
• Enclosure NEMA Rating: NEMA 1
• End Switch Relay: 24 V (ac) 2 A
• Power Supply: 24 V (ac) plus / minus 10 percent, 60 Hz, 3 VA min, 99 VA max, Class 2
• Sensor: NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
• Zone Group Pump: 115 V (ac) 5 A
• Zone Valve Load: 24 V (ac) 2 A, maximum combined current (zones 1 to 4): 4 A
• Zoning - Thermostat Type: tN2 Wiring Center
