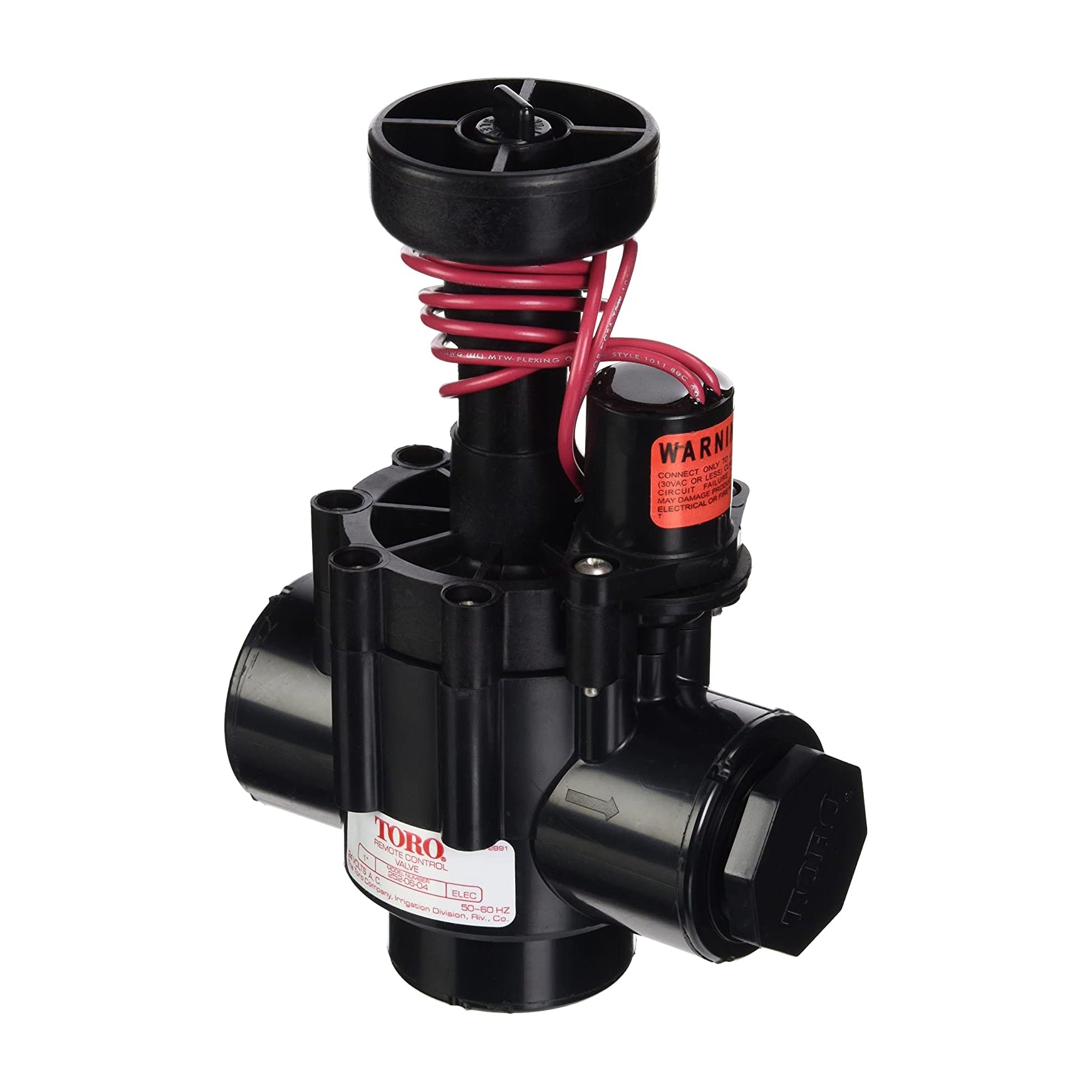

TORO 252-06-04 - 1" FPT Electric Globe / Angle Valve with Flow Control - 252 Series

Toro 252 Series valves are ruggedly built and ready to withstand the wide array of conditions seen in light commercial applications. With several configurations to choose from 252 Series valves are available in globe/angle 1”, 1 ½”, or 2” electric or hydraulic models, and come standard with flow control. Offering the same glass-filled Nylon bonnet and commercial-grade ABS body construction as the 250/260 Series valves, the 252 Series valves are rated for service pressures up to 150 psi. The valve diaphragm is a single piece construction and made with fabric-reinforced rubber for long-term tear and stretch resistance. A hard-working, yet economical valve, the 252 Series is an ideal choice to meet all of your light commercial requirements.

Features

• Heavy-Duty Toro solenoid provides dependable operation and long life
• Fabric-reinforced rubber diaphragm provides long-term tear and stretch tolerance
• Flow control handle adjusts the flow of each zone on a system
• Robust ABS material ensures the valve can withstand high pressures and flow without compromise
• Debris-resistant models that can operate in the harshest of climates with dirty water

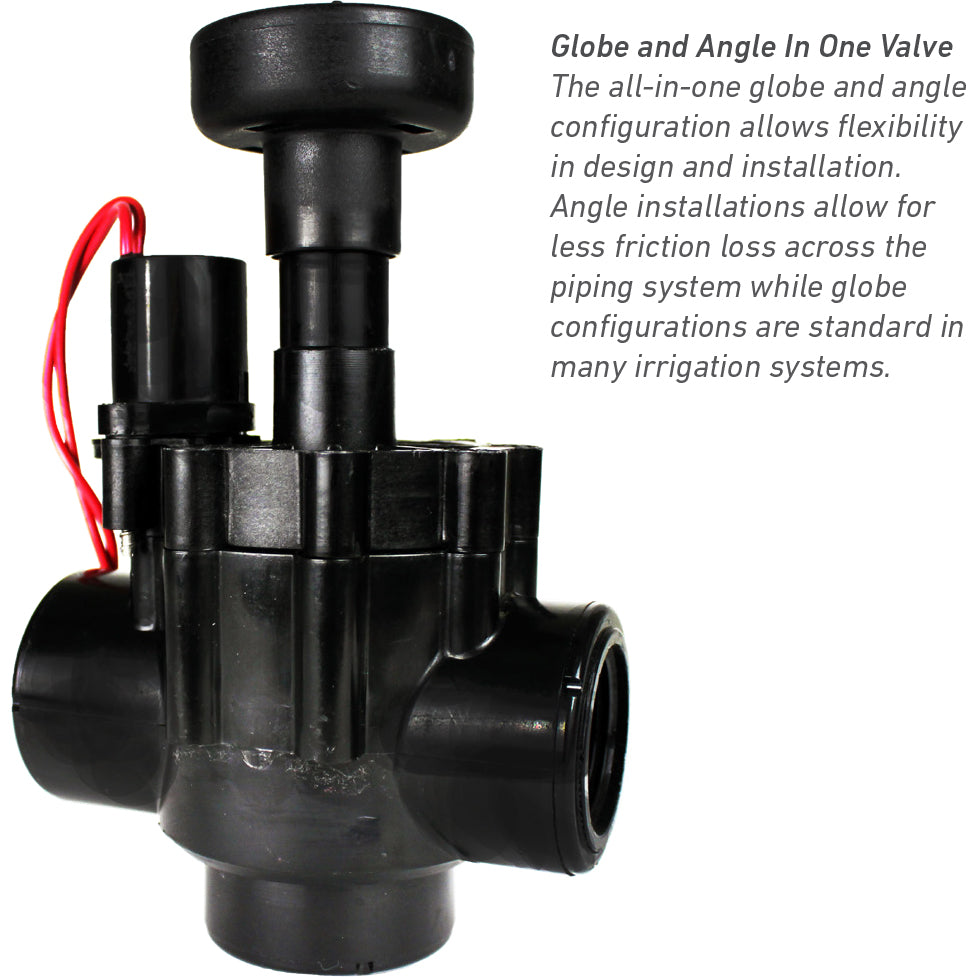

• Globe and globe/angle built into one valve, easy to use in any application
• Self-cleaning, stainless steel metering pin
• 24” lead wires on 1-1/2” and 2” electric models, and 18” lead wires on 1” electric model
• Tough, glass-filled Nylon bonnet
• Single-piece diaphragm

Specifications

• Recommended Flow Range: 5.0 to 25 gpm
• Operating Pressure: 20 to 150 psi
• Solenoid:
  • 24 VAC, 50/60 Hz
  • Inrush: 0.30 amps, 7.20 VA
  • Holding: 0.20 amps, 4.80 VA
• Burst Pressure Rating: 750 psi
• Dimensions: 6-3/4” H x 4-1/2” W
• Warranty: Two years
