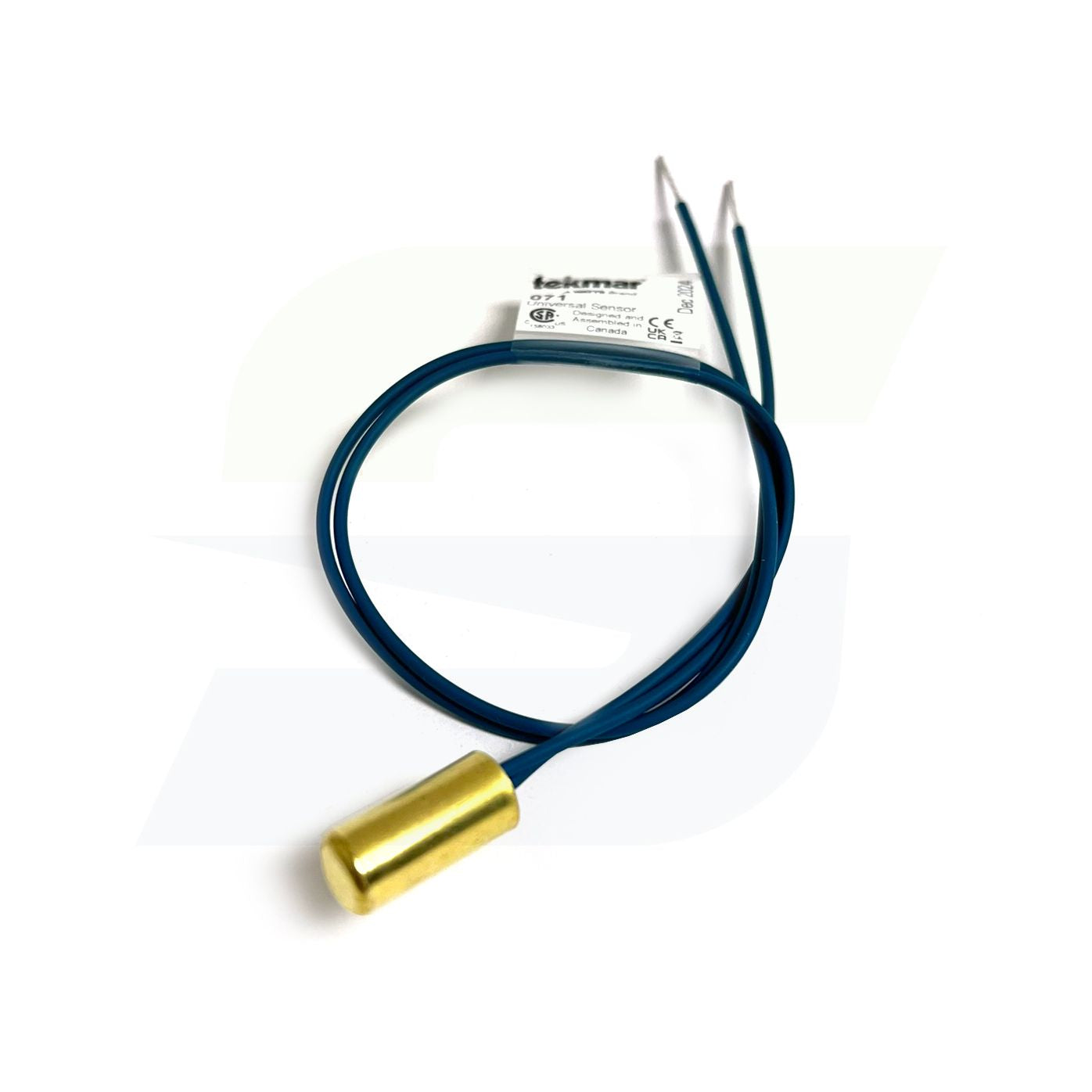

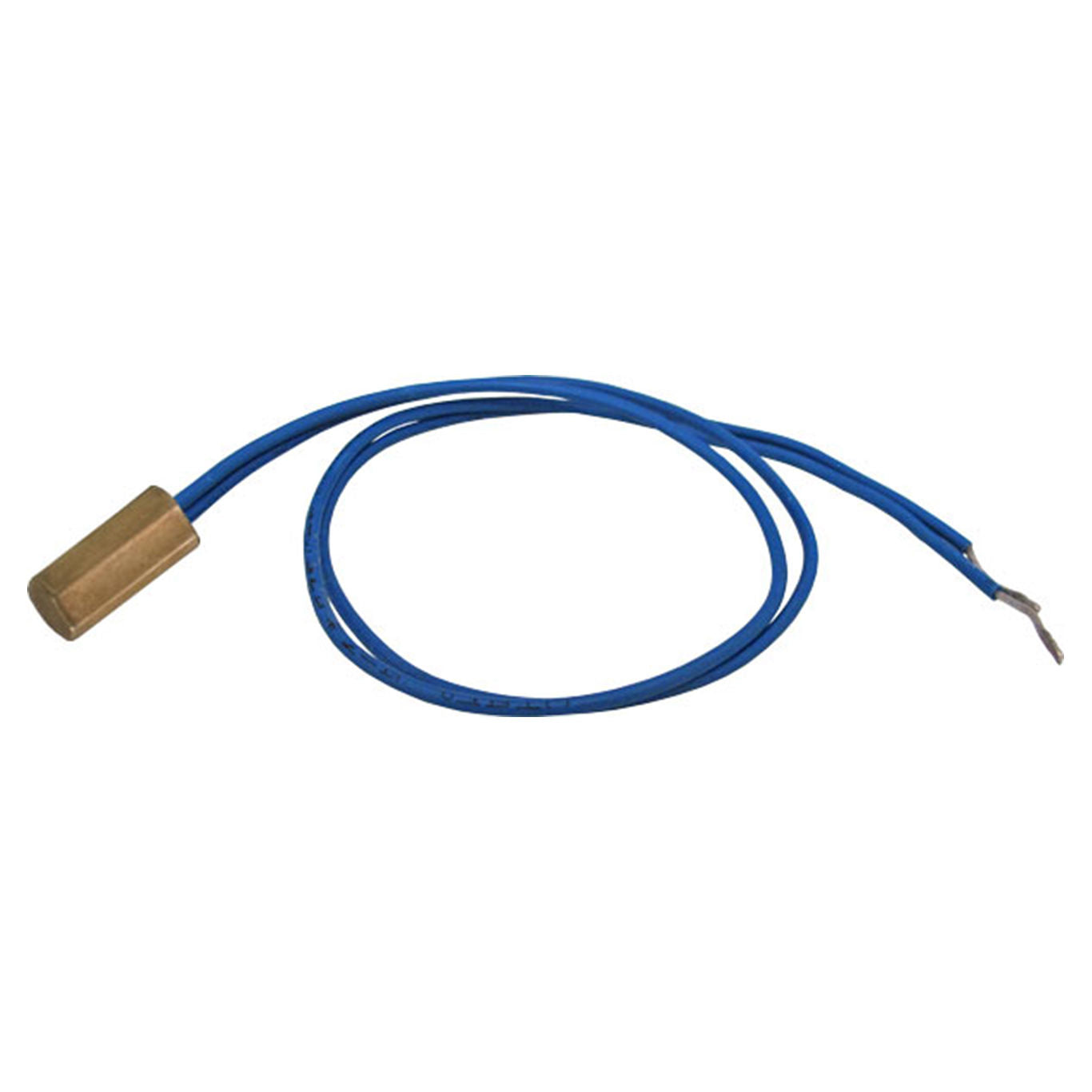

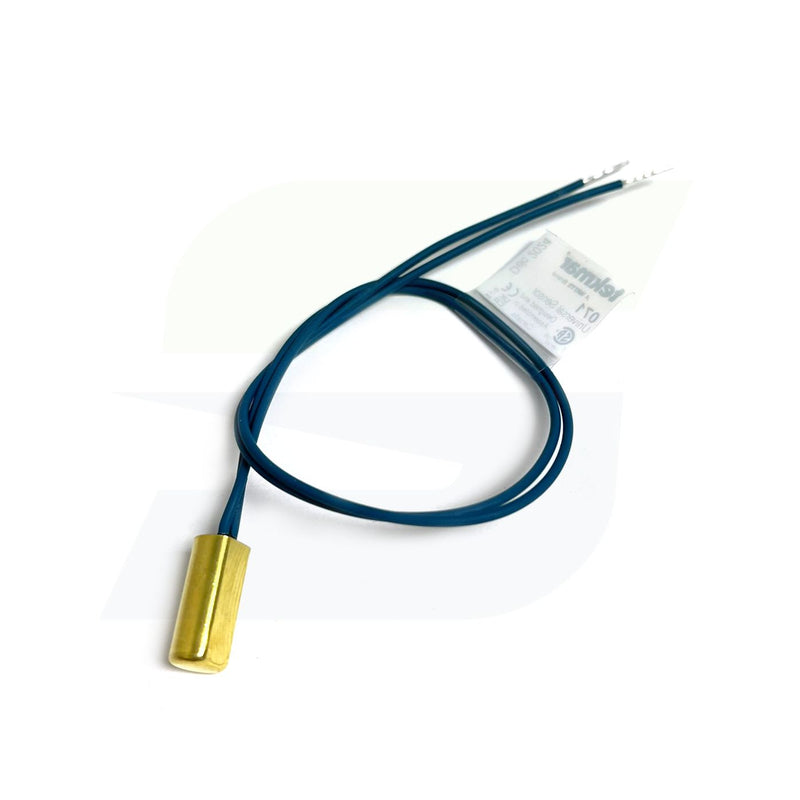

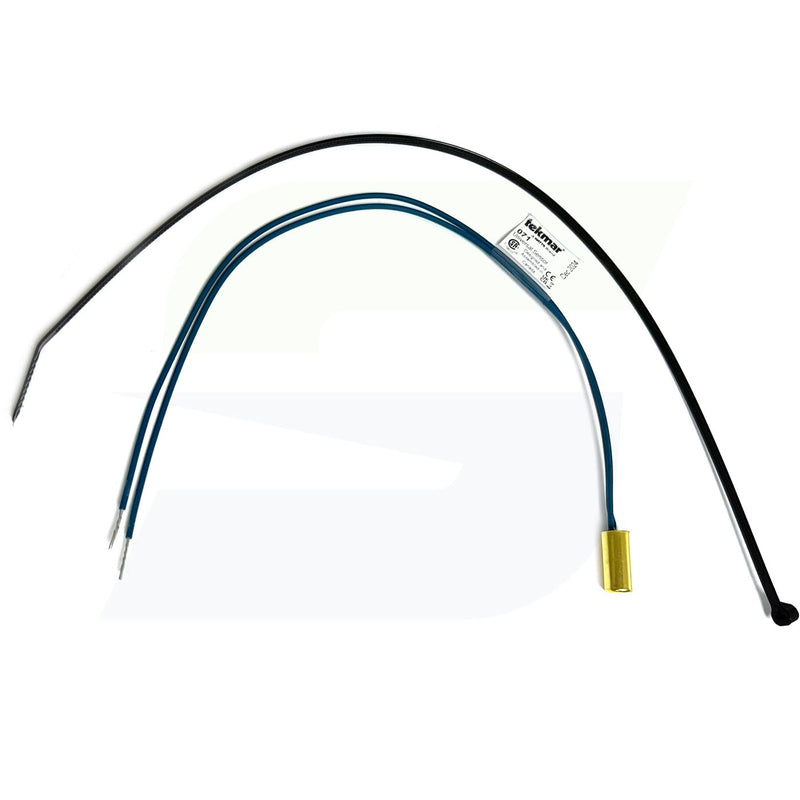

Tekmar 071 - Universal Temperature Sensor, 1 Ft Wire
The Universal Sensor 071 is a temperature sensor. It is used for a wide range of applications, from sensing boiler supply temperature to slab temperature. This product is commonly used to monitor supply or return water temperatures by strapping the sensor on to a pipe.
Features
- CSA and C US Approved for use in USA and Canada
- Thermistor accuracy of plus / minus 0.2 degrees C
- Very fast temperature response
- Corrosion resistant brass sleeve
- 10K thermistor
Specifications
- Agency Approvals: CSA C US

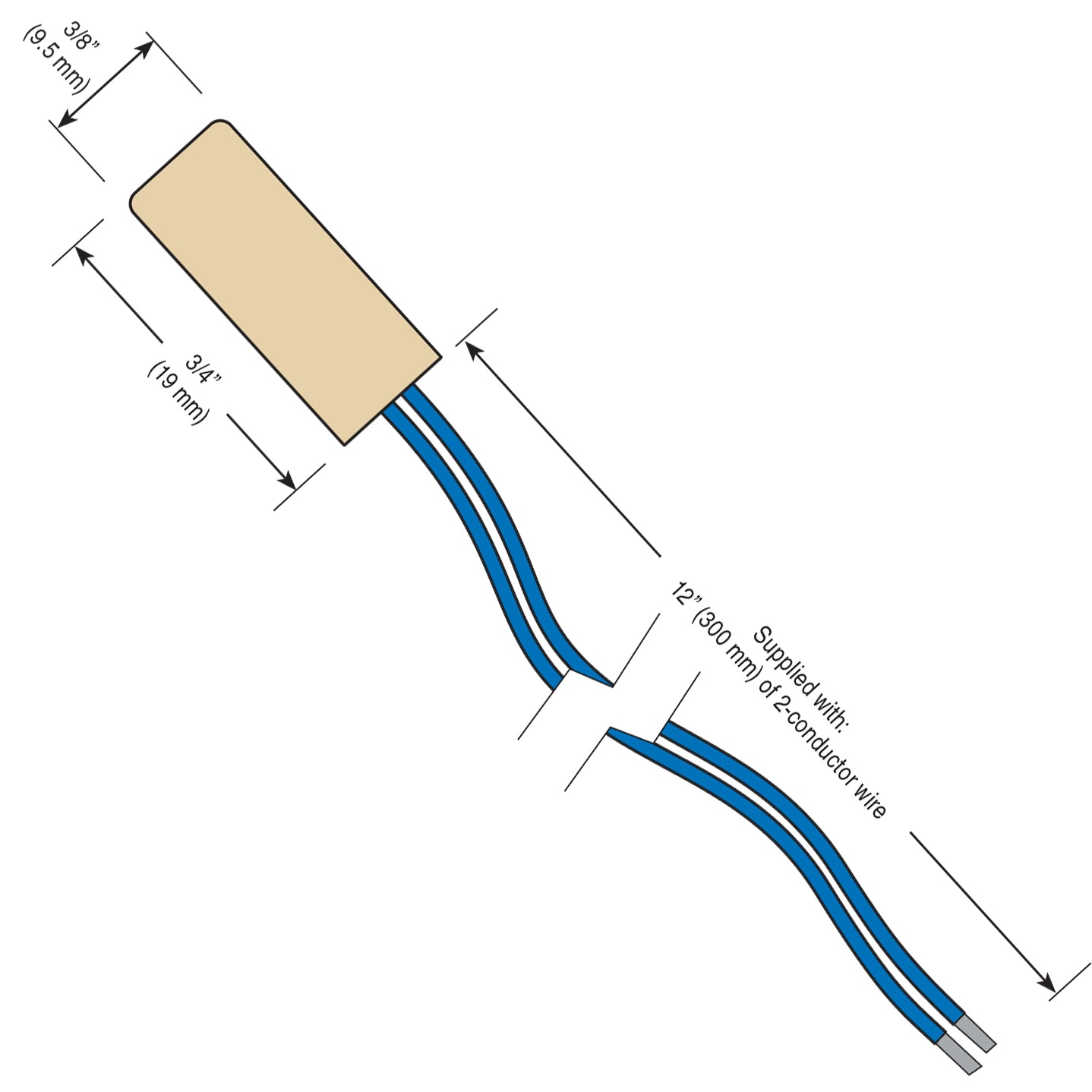

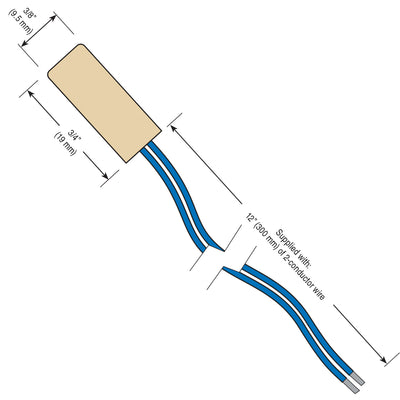

- Dimensions: 3/8" OD x 3/4" (9.5 OD x 19 mm)
- Operating Range: -60 to 255 degrees F (-51 to 125 degrees C)
- Sensor: NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
