Tekmar 082 - Universal Temperature Sensor, 8 Ft Wire
No reviews
In stock
Regular price
$39.62
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
Tekmar 082 Installation / Technical Data

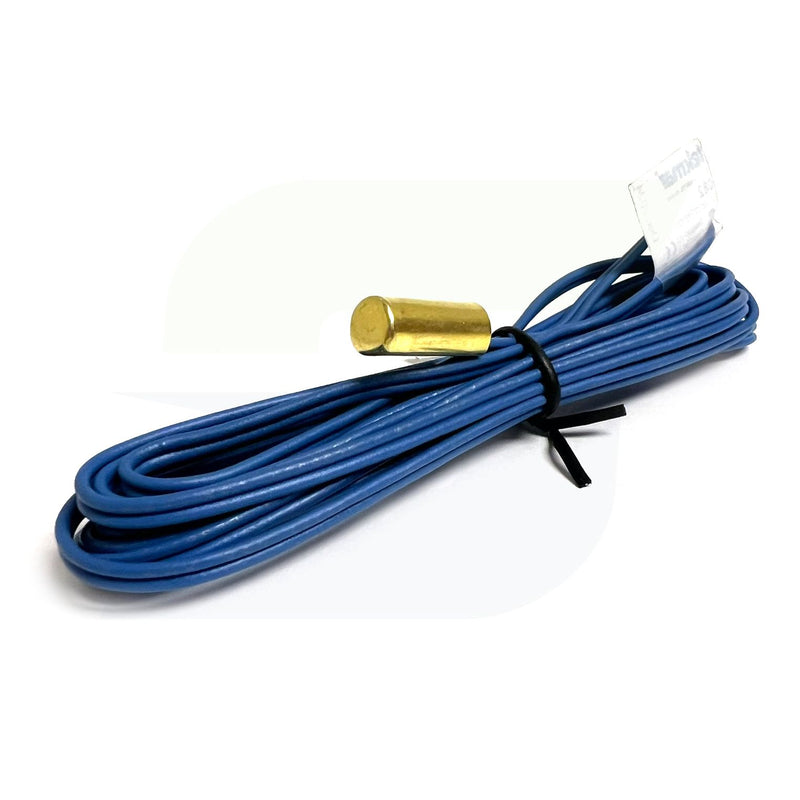

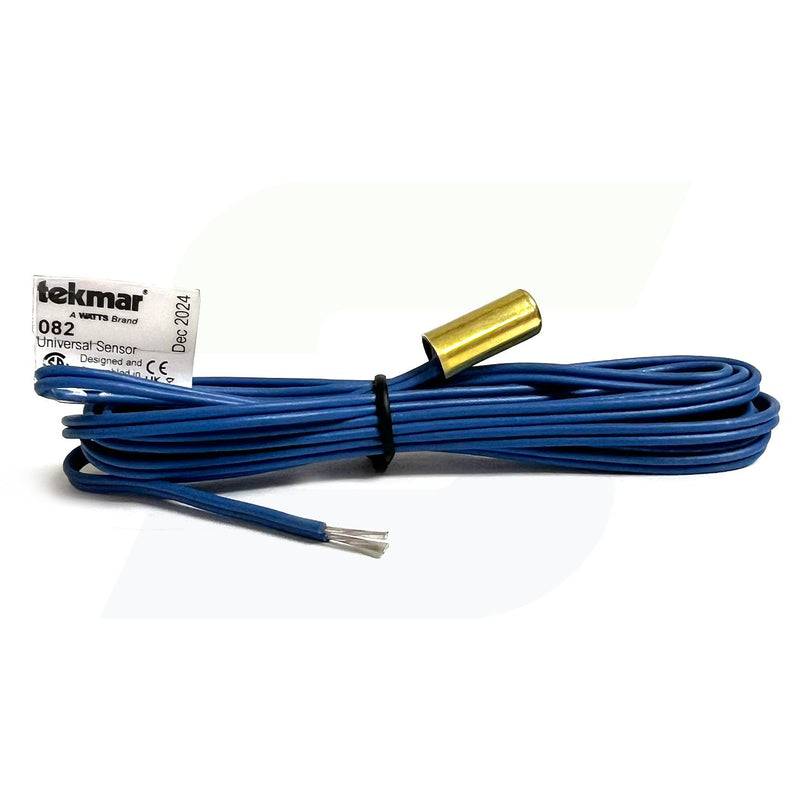

Tekmar 082 - Universal Temperature Sensor, 8 Ft Wire

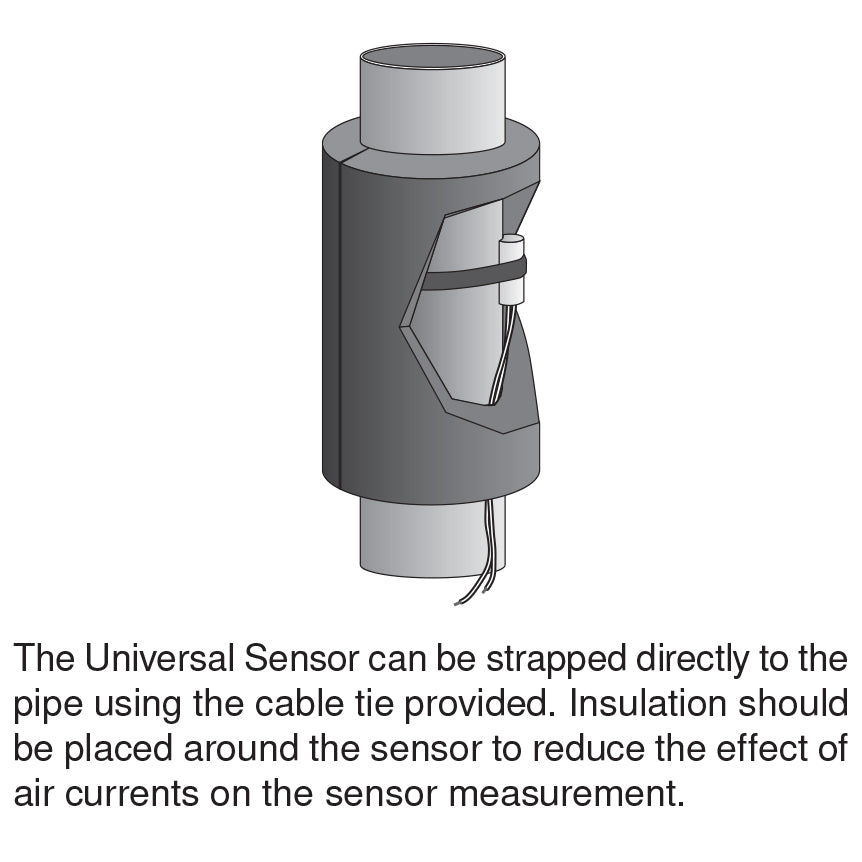

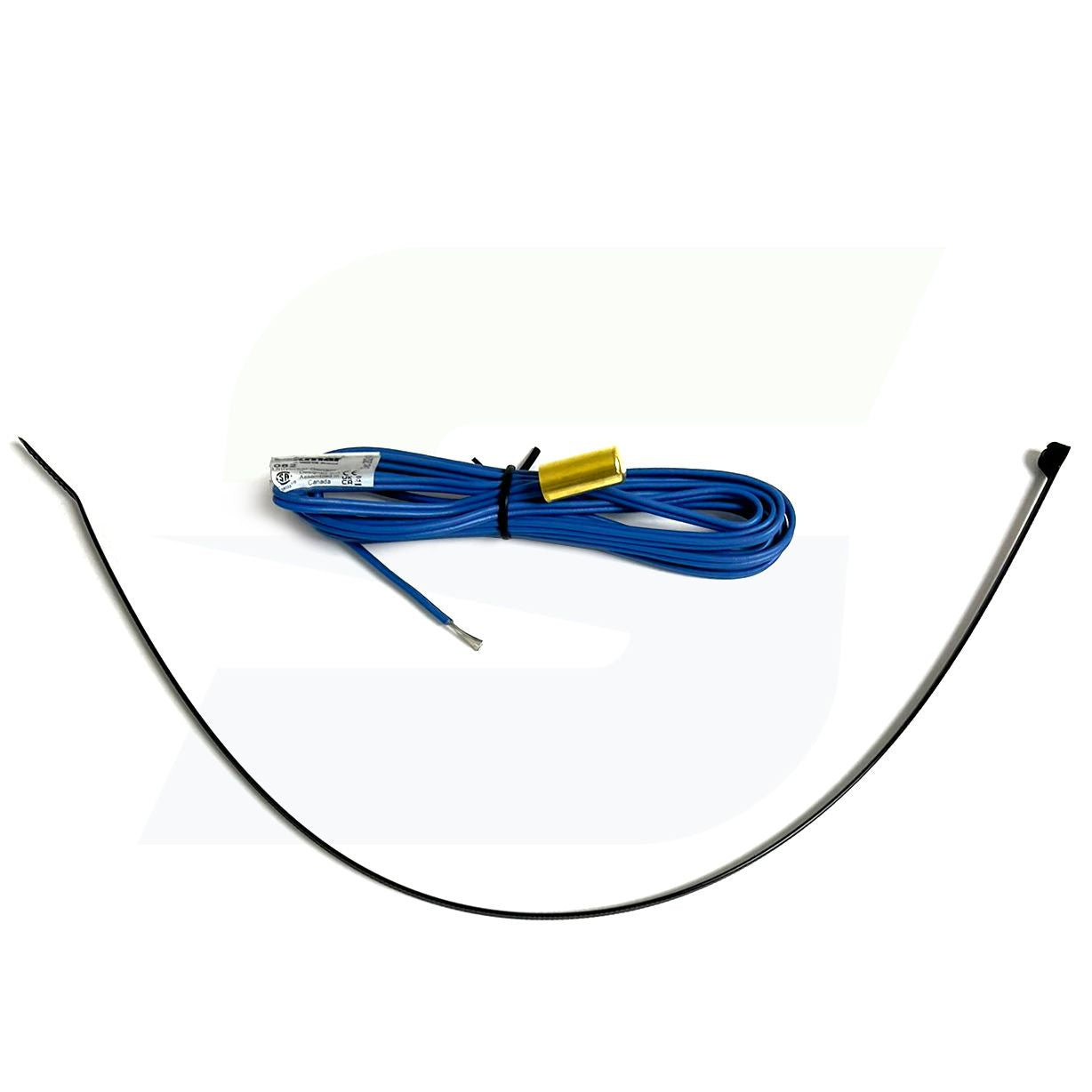

The Universal Sensor 082 is a 10 k ohm temperature sensor designed to be strapped onto a pipe. It can be used with any tekmar control sensor input, but is most commonly used to monitor supply and return water temperatures. This product has a brass sleeve for fast response, a wide operating range, an indent to allow pipe strap on installation, and 8 FT (2.4 m) of 2-conductor wire.
Features
- Corrosion resistant brass sleeve
- CSA and C US Approved for use in USA and Canada
- Very fast temperature response
- Thermistor accuracy of plus / minus 0.2 degrees C
- 10K thermistor
Specifications
- Agency Approvals: CSA C US
- Dimensions: 3/8" OD x 3/4" (9.5 mm OD x 19 mm)
- Operating Range: -60 to 221 degrees F (-51 to 105 degrees C)
- Sensor: NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
- Sensor Material: Brass sleeve, 8 FT (2438 mm) 20 AWG, 300V PVC insulated zipcord
PKZ2100192
