Specification Sheet

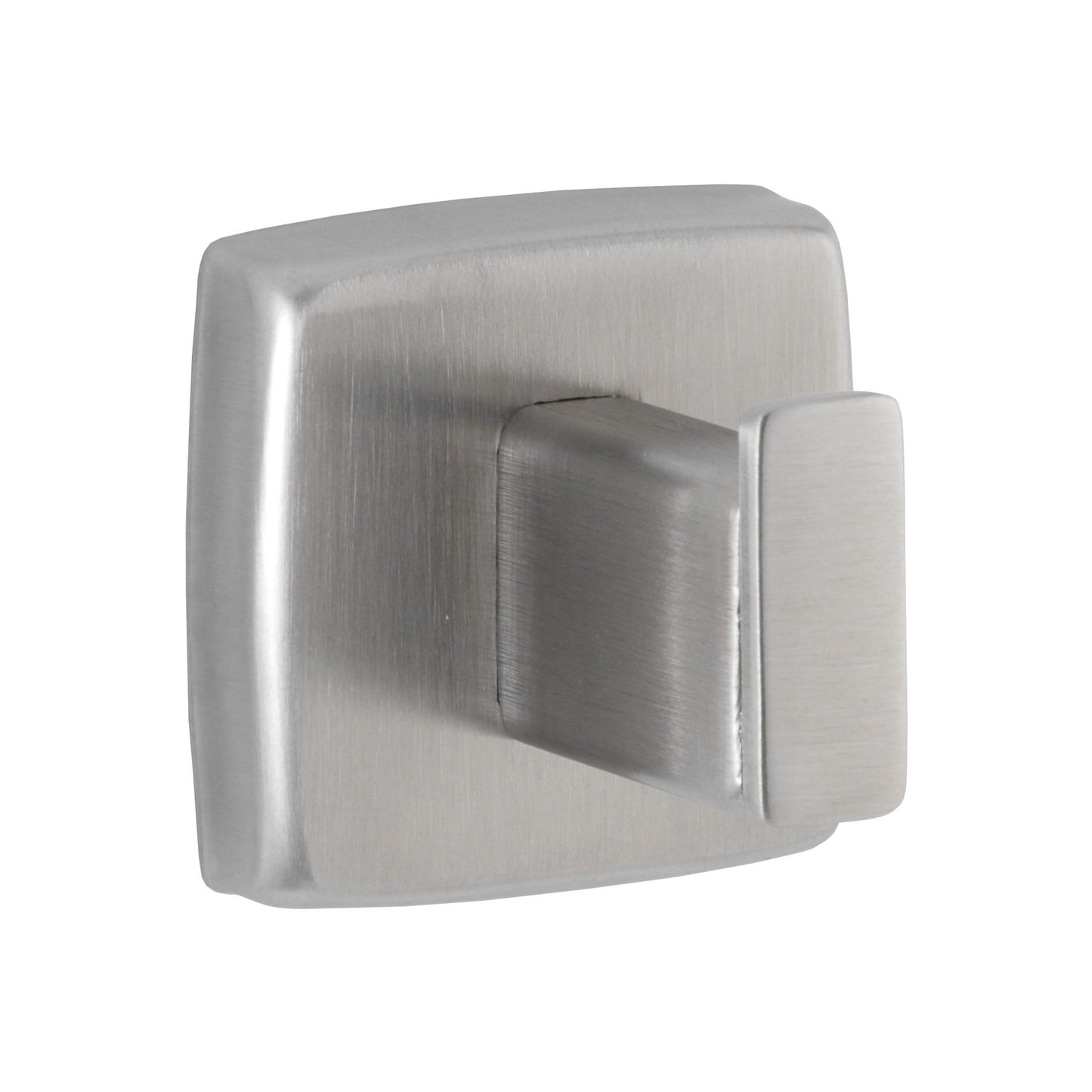

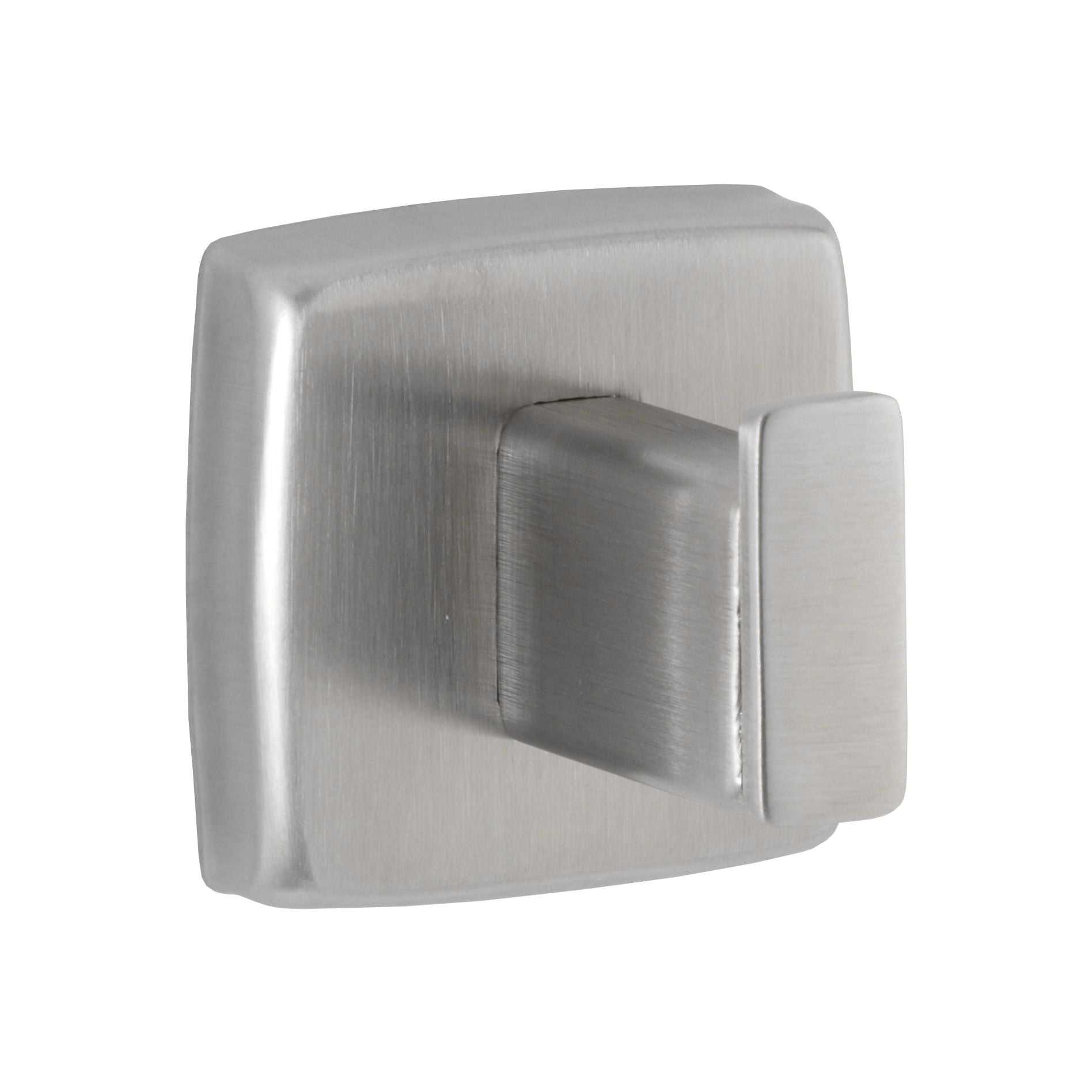

Utility Hook-Satin Finish

Features:

• Satin finish stainless steel. For robes, shoe-shine cloth, and sanitary napkin disposal bag.

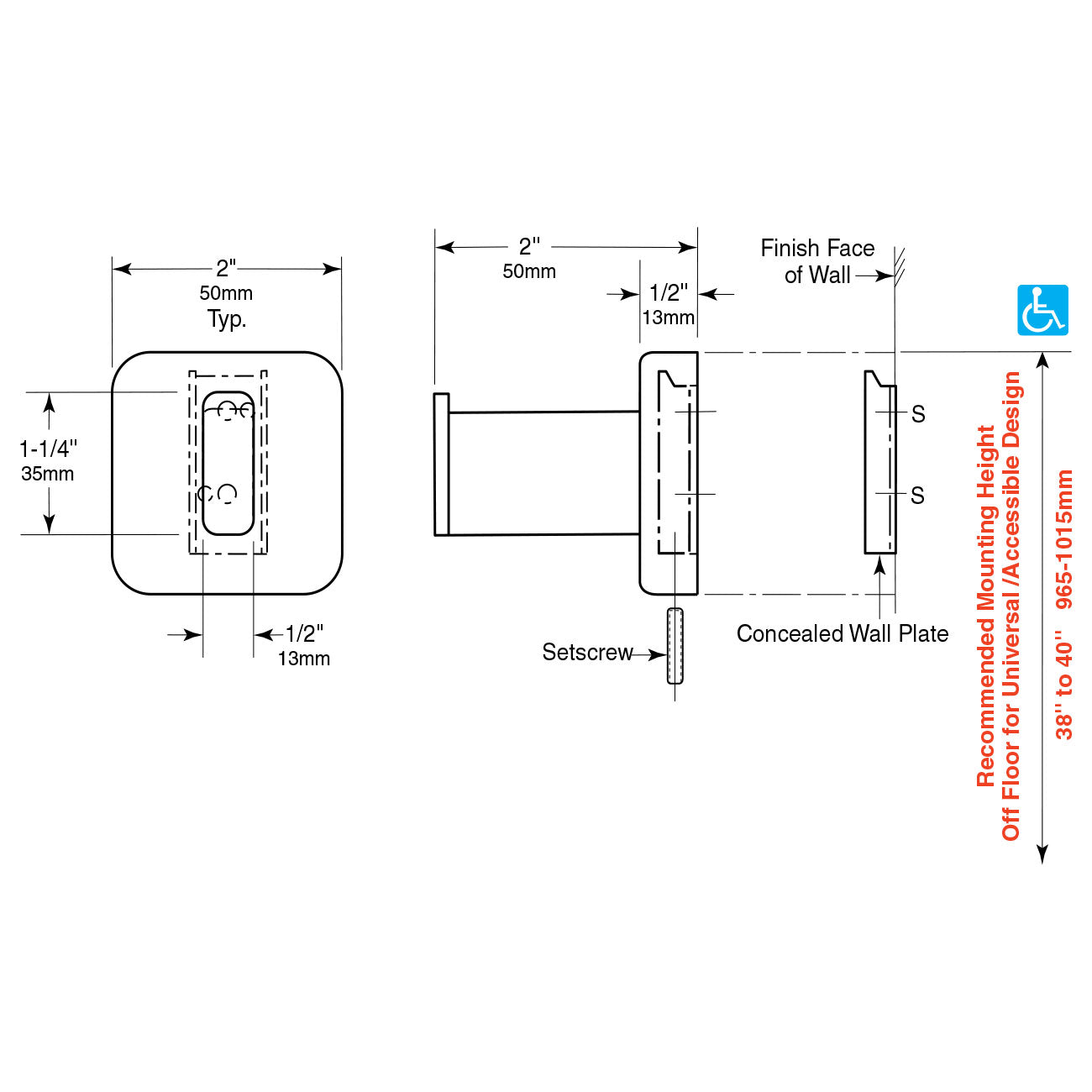

• Flange is 2" x 2" (50 x 50mm).
• Hook 1/2" (13mm) wide, projects 2" (50mm) from wall.

Materials:

• Flange and Support Arm — 18-8, type-304, 22-gauge (0.8mm) stainless steel. Concealed, 16-gauge (1.6mm) stainless steel mounting bracket. All-welded construction. Secured to wall plate with a stainless steel setscrew.
• Concealed Wall Plate — 18-8, type-304, 16-gauge (1.6mm) stainless steel.
• Cap — 18-8, type-304, 10-gauge (3.6mm) stainless steel. Welded to the support arm.

Installation:

• To remove concealed wall plate from back of flange and mounting bracket, loosen setscrew.
• Mount wall plate so prongs are at top; secure with two sheet-metal screws, furnished by manufacturer, at points indicated by an S.
• Engage mounting bracket onto prongs of wall plate, then secure into position by tightening setscrew at bottom of flange.
• For partitions with particle-board or other solid core, secure with sheet-metal screws furnished, or provide through-bolts, nuts,and washers.
• For hollow-core metal partitions, provide solid backing into which the furnished sheet-metal screws can be secured.
• For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws furnished.
• For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws furnished, or provide 1/8" (3mm) toggle bolts or expansion bolts.
