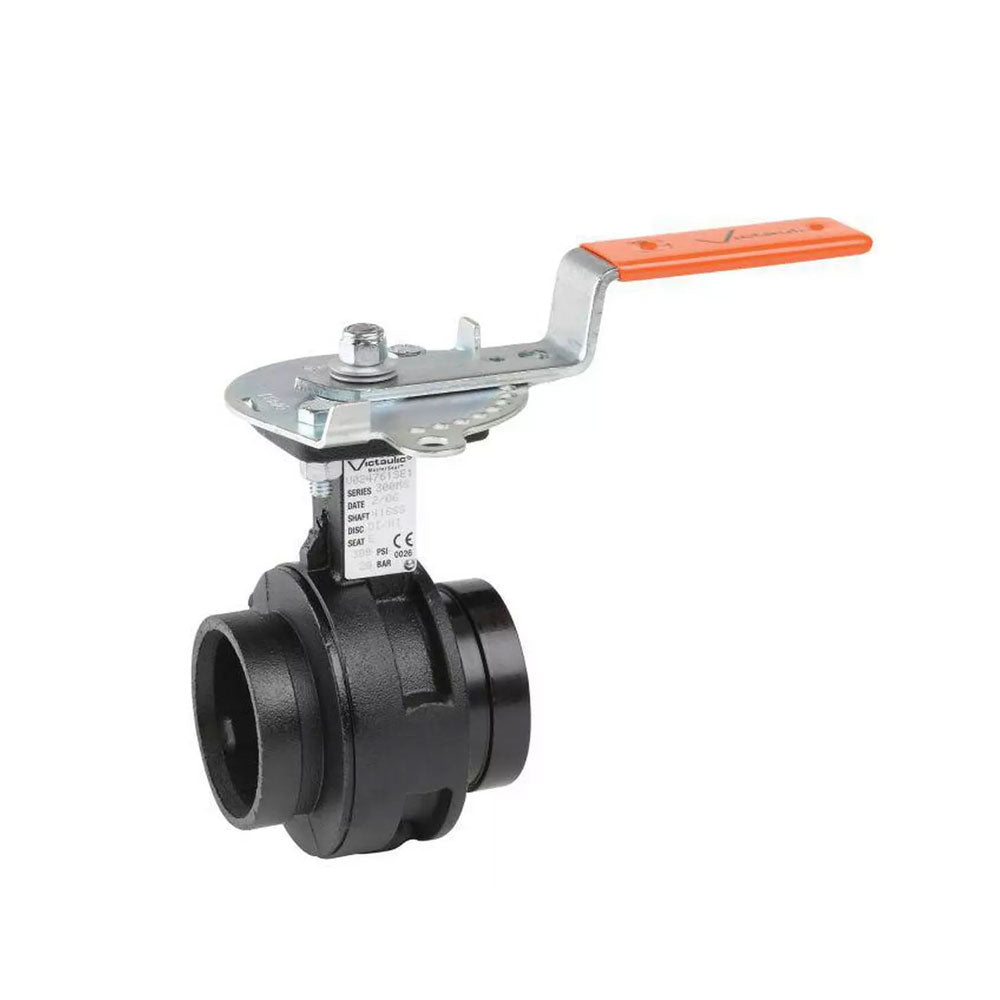

Victaulic V020761SE2 - 2" VIC-300 MasterSeal Butterfly Valve - EPDM Seat - Lever Operator

Vic-300 MasterSeal butterfly valves are designed for pressures ranging from full vacuum to 300psi/2065kPa and for bi-directional, dead end services to full working pressure. The valve features a patented seat design that assures full 360° sealing. The pressure-enhanced seat compresses to form a larger seating area as the pressure increases. The seat design also contributes to the low breakaway torque capabilities of the MasterSeal valve.

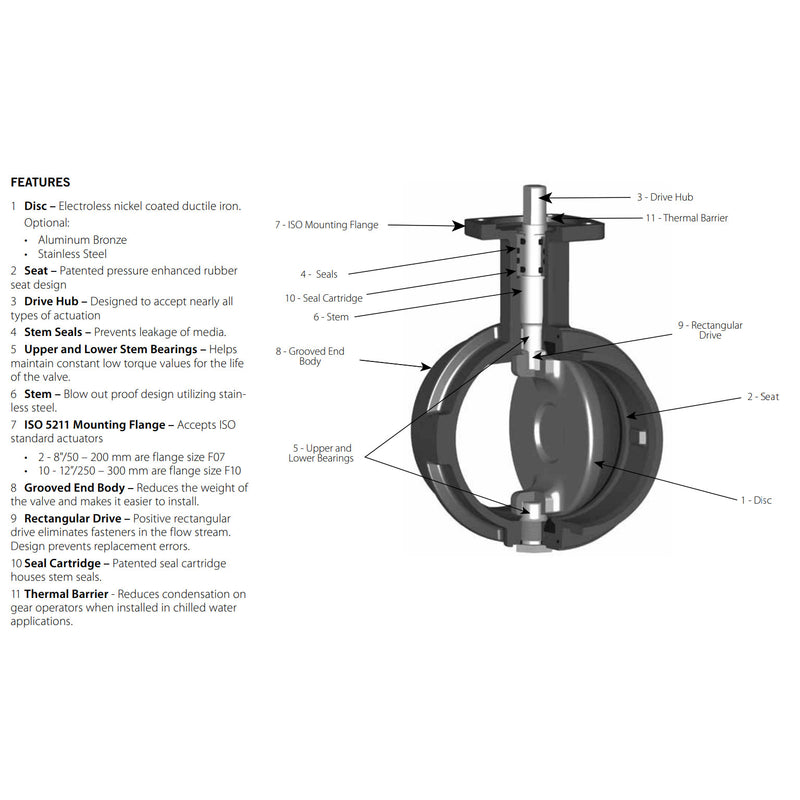

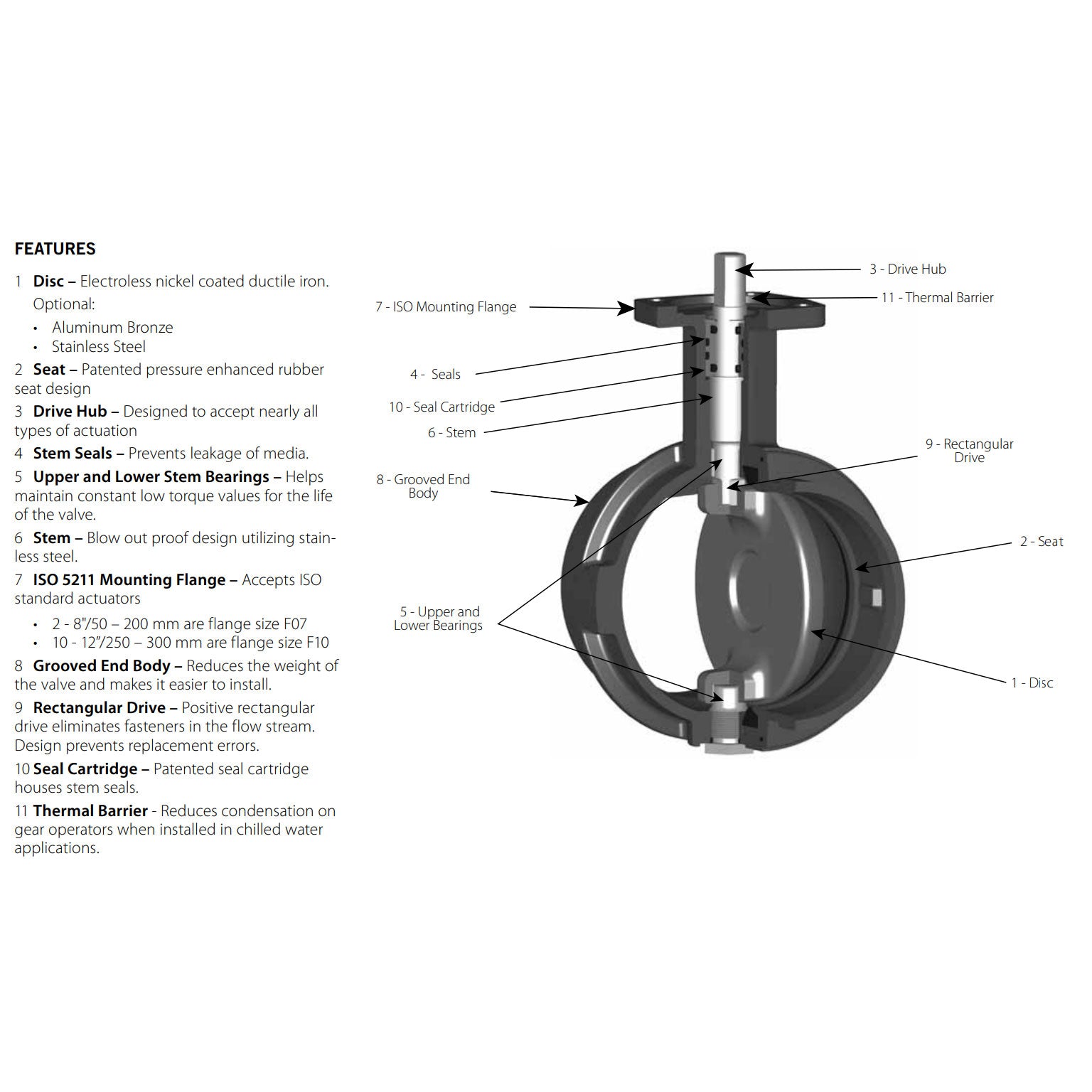

Features

• Disc – Electroless nickel coated ductile iron
• Seat – Patented pressure enhanced rubber seat design
• Drive Hub – Designed to accept nearly all types of actuation
• Stem Seals – Prevents leakage of media
• Upper and Lower Stem Bearings – Helps maintain constant low torque values for the life of the valve
• Stem – Blow out proof design utilizing stainless steel
• ISO 5211 Mounting Flange – Accepts ISO standard actuators
  • 2 - 8" are flange size F07
  • 10 - 12" are flange size F10
• Grooved End Body – Reduces the weight of the valve and makes it easier to install
• Rectangular Drive – Positive rectangular drive eliminates fasteners in the flow stream, design prevents replacement errors
• Seal Cartridge – Patented seal cartridge houses stem seals
• Thermal Barrier - Reduces condensation on gear operators when installed in chilled water applications
