Required Valve:
Moen 2510

åÊ

åÊ

åÊ

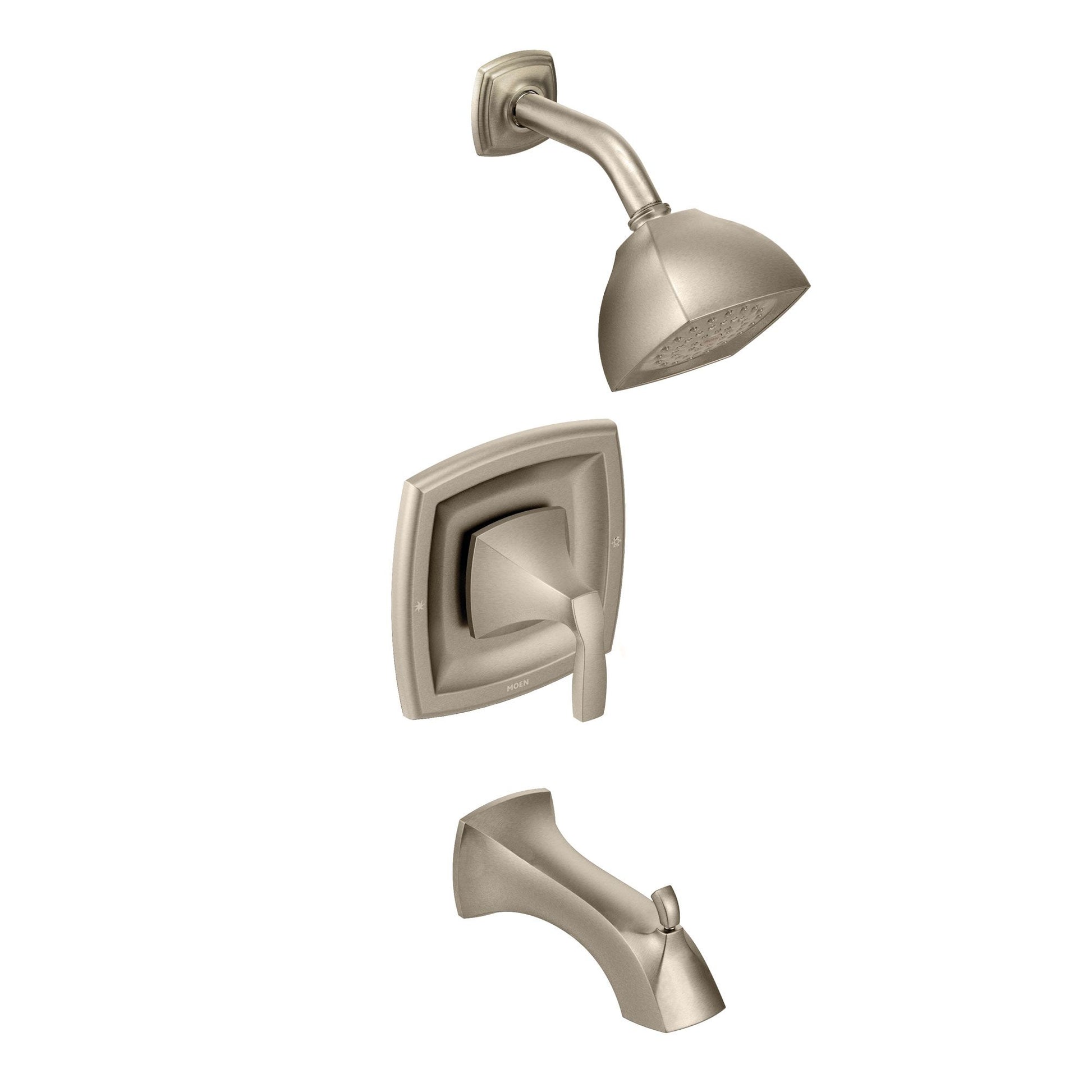

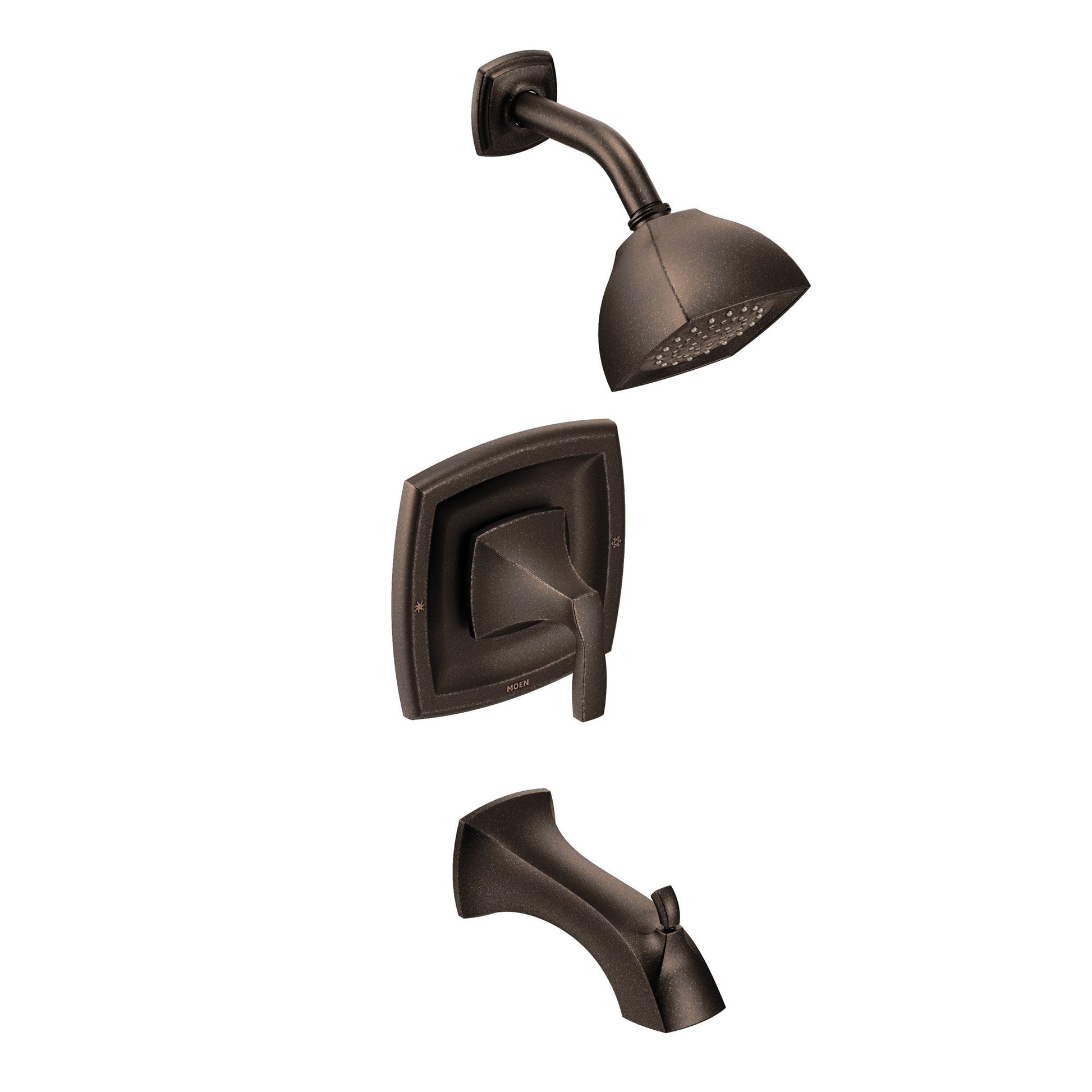

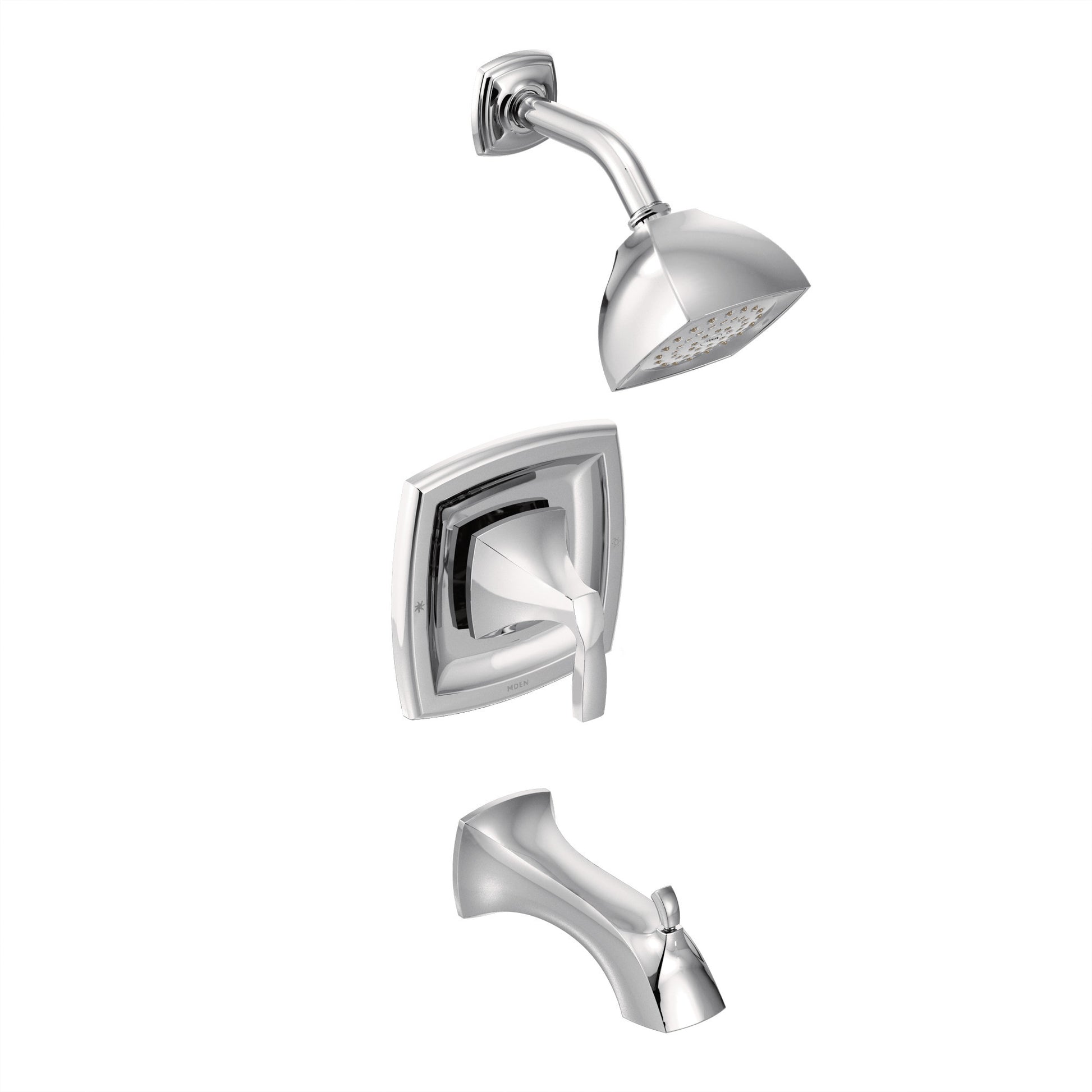

Moen T2693EP - Voss Posi-Temp Eco-Performance Tub and Shower Trim

Crisp edges and uncomplicated style features give the Voss collection an ageless, yet fashion-forward, presence. Each silhouette brings a confident Transitional style to the bath.

Features

• Lever handle makes it easy to adjust the water
• Install with Posi-Temp pressure balancing control valve to maintain water temperature control in the shower
• 4-1/16" Diameter spray head this eco performance showerhead conserves water without sacrificing performance
• Full spray
• 7 15/16" Tub spout length
• Built on the Moen M-PACT common valve system, allowing you to update the faucet style in the future without replacing any plumbing
• Complies with Americans with Disabilities Act (ADA) specifications
• Meets EPA WaterSense criteria to conserve water without sacrificing performance
• Limited lifetime warranty

Specifications

• Showerhead Flow Rate: 1.75 Gpm (6.65 L/Min) Max.
• Showerhead Functions: One-Function
• Showerhead Size: 4-1/16" Diameter Spray Head
• Showerhead Type: Eco-Performance Showerhead
• Spout Connection Type: Slip Fit
• Spout Length: 7 15/16"
• Tub Spout Type: Diverter
