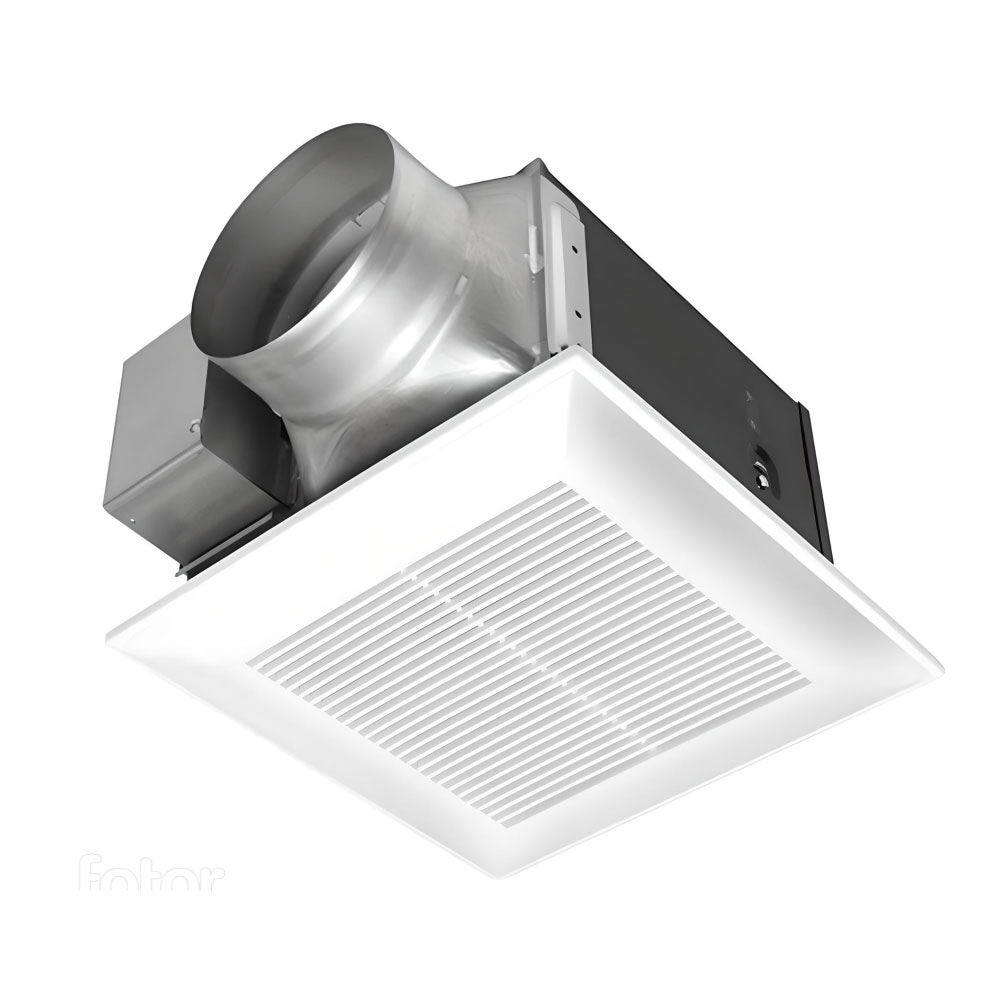

Panasonic FV-20VQ3 - WhisperCeiling Spot Ventilation Fan - 190 CFM

WhisperCeiling 190 CFM large volume ceiling mount fan is a time-tested and customer approved powerful, yet quiet and energy efficient solution. Ideal for light commercial applications, it incorporates a 6 in. duct adapter and can be used to comply with the latest codes and standards.

Features

  • Large volume (190) CFM options designed for light commercial applications
  • UL listed for tub/shower enclosure when GFCI protected
  • Can be used to comply with ASHRAE 62.2, LEED, IAP, EarthCraft, California Title 24 and WA Ventilation Code

Specifications

  • Advanced Features: Single Speed
  • Air Volume Exhaust (CFM): 190 @ 0.1" SP, 145 @ 0.25" SP
  • Master Carton Dimensions (HxWxD): 19-7/16" x 15-1/2" x 12-1/8"
  • CFM: Greater than 150
  • Other Approved Codes and Standards: ASHRAE 62.2, LEED, California Title 24, Washington VIAQ
  • Construction Type: single Family/ Manufactured Housing/. Hospitality/Assisted Living/ Student Housing. Renovation/Remodeling
  • Current (Amps): 0.34A
  • Ventilation Design Approach: Continuous Ventilation. Spot Ventilation
  • Duct Diameter: 6"
  • Energy Efficiency (CFM/Watt): 4.6 CFM/W
  • ENERGY STAR Certified: Yes
  • Fan Type: Fan Only
  • Grille Size (in sq.): 15
  • Industry: Residential. Light Commercial
  • Installation: Ceiling
  • Motor Type (AC/DC): AC
  • Mounting Opening (in sq.): 12-3/16"
  • Mounting Options: Ceiling Mount. Tub Shower (UL)
  • Noise (Sones): 190 @ 0.1" SP = 0.8, 145 @ 0.25" SP = 1.4
  • Power Consumption (Watts): 43.7W
  • Power Rating (V/Hz): 120/60
  • Product Family Name: WhisperCeiling
  • Radiation Damper Available: No
  • UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes
  • Warranty: 3 Year Parts
