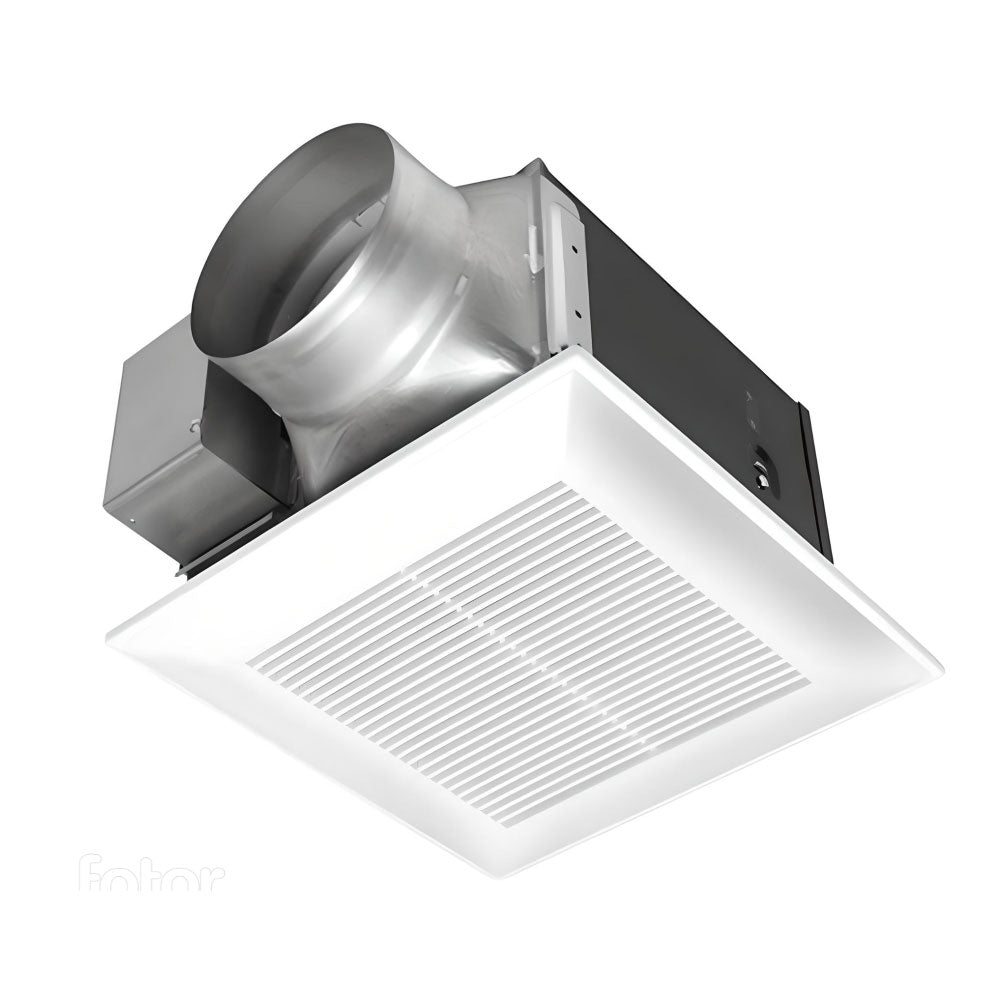

Panasonic FV-40VQ4 - WhisperCeiling Spot Ventilation Fan - 390 CFM

WhisperCeiling 390 CFM large volume ceiling mount fan is a time-tested and customer approved powerful, yet quiet and energy efficient solution. Ideal for light commercial applications, it incorporates a 6 in. duct adapter and can be used to comply with the latest codes and standards.

Features

• Quiet, yet powerful – ideal for new and remodel residential applications
• Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in leakage in the Building Envelope during blower door testing
• UL listed for tub/shower enclosure when GFCI protected
• 3 year warranty on parts

Specifications

• Advanced Features: Single Speed
• Air Volume Exhaust (CFM): 390 @ 0.1" SP, 356 @ 0.25" SP
• Master Carton Dimensions (HxWxD): 22-1/4" x 18-5/16 x 13-1/4"
• CFM: Greater than 150
• Other Approved Codes and Standards: ASHRAE 62.2, LEED, California Title 24, Washington VIAQ
• Construction Type: Single Family/Manufactured Housing. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling.
• Current (Amps): 0.99A
• Ventilation Design Approach: Continuous Ventilation. Spot Ventilation
• Duct Diameter: 6"
• Energy Efficiency (CFM/Watt): 3.5 CFM/W,
• ENERGY STAR® Certified: No
• Fan Type: Fan Only
• Grille Size (in sq.): 17-11/16"
• Industry: Residential. Light Commercial
• Installation: Ceiling
• Motor Type (AC/DC): AC
• Mounting Opening (in sq.): 14-3/4"
• Mounting Options: Ceiling Mount. Tub Shower (UL)
• Noise (Sones): 390 @ 0.1" SP = 3.0, 356 @ 0.25" SP = 3.0
• Power Consumption (Watts): 111.4W
• Power Rating (V/Hz): 120/60
• Product Family Name: WhisperCeiling
• Radiation Damper Available: No
• UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes
• Warranty: 3 Year Parts
