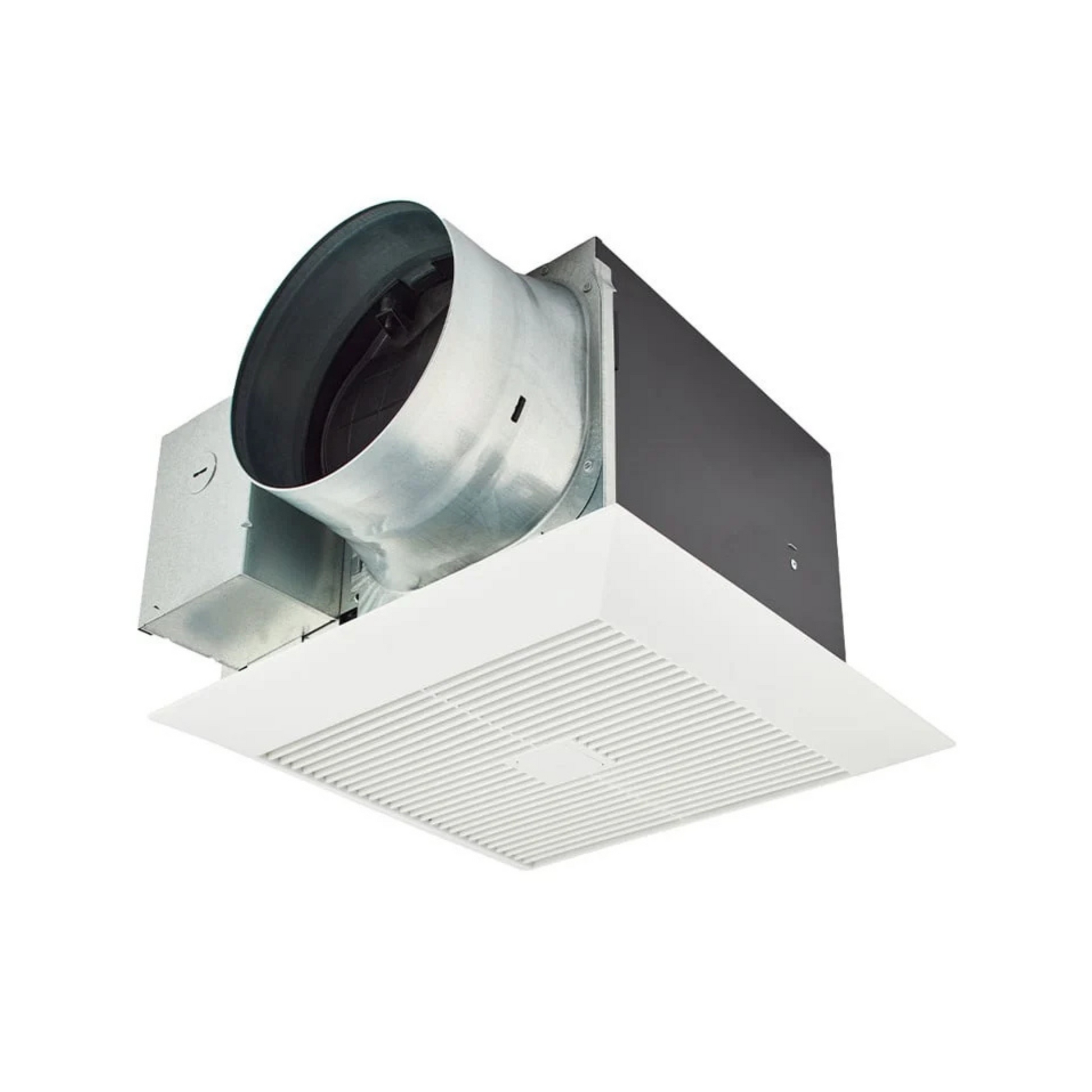

Panasonic FV-1115VK2 - WhisperGreen Select Ventilation Fan - 110-130-150 CFM

Reintroducing WhisperGreen Select, our whole house IAQ solution with enhancements. First, our improved single-hinged Flex-Z Fast bracket for more flexible and easy installation. Other enhancements include a new elegant grille, an environmentally friendly 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing design and dual access junction box that helps simplify wiring in tight spaces.

Features

• Customizable, all-in-one whole house precision ventilation solution ideal for use in the bathroom, laundry room, sun room, basement or garage

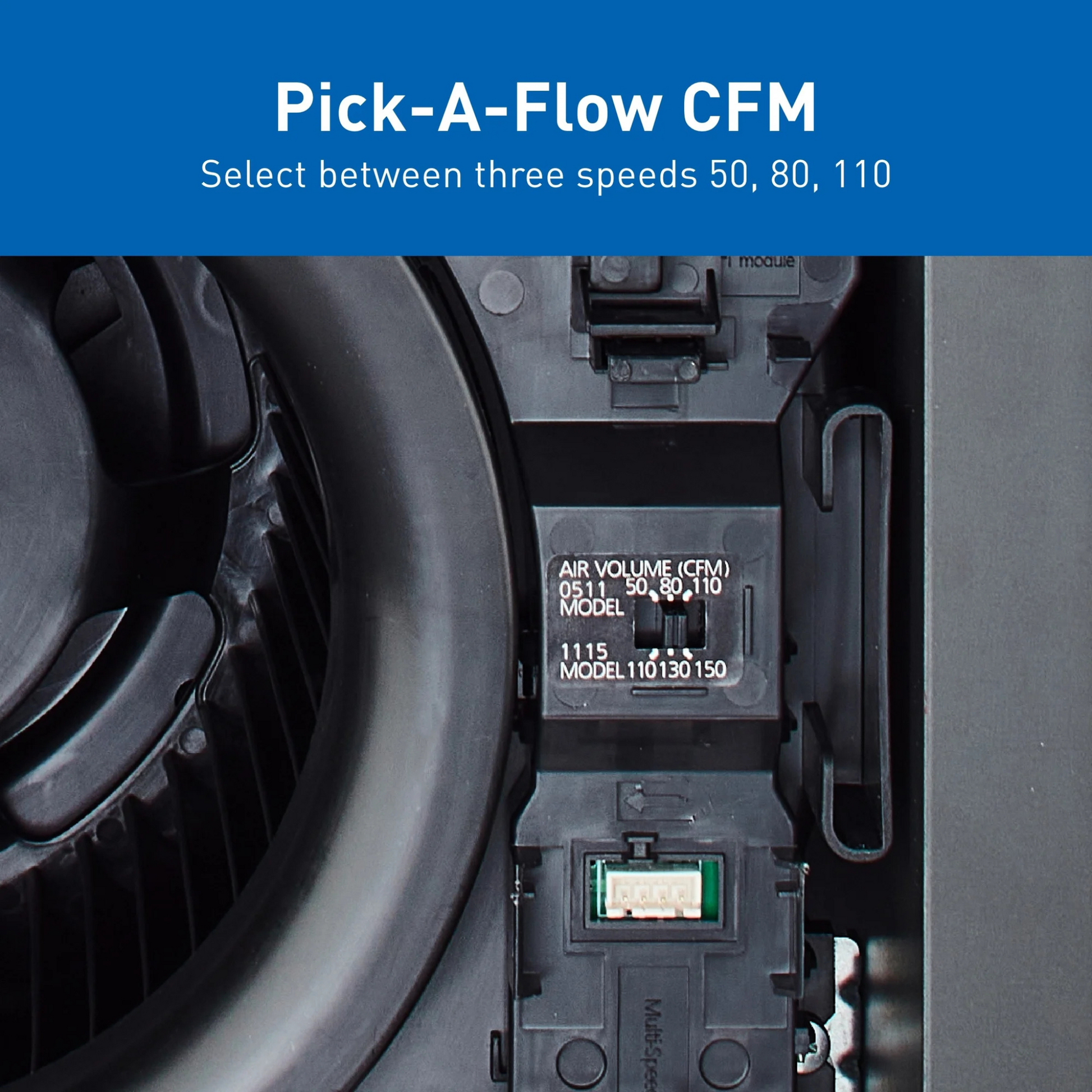

• Pick-A-Flow Airflow Selector (110-130-150 CFM model) combined with SmartFlow technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
• New! Environmentally friendly 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing design
• New! Improved Flex-Z Fast; single-hinge bracket with added flexibility, fast and easy installation
• New! Elegant grille design complements the aesthetics of any room

Specifications

• Model number: FV-1115VK2
• Fan Type: Fan only
• Advanced Features: Pick-A-Flow Airflow Selector, ECM motor with SmartFlow technology
• Air Volume Supply (CFM): @0.1= 110, 130, 150 @0.25= 112, 130, 151 @0.375= 105, 124, 132
• Noise (Sones): @0.1"SP (110, 130, 150 CFM) = <0.3 @0.25"SP(112,130,151 CFM) = 0.3, 0.4, 0.7
• Power Consumption (Watts): 110 CFM=6.9, 130=9.2, 150=12.9
• Energy Efficiency (CFM/Watt): 110 CFM=16.0, 130=14.2, 150=11.7
• Current (Amps): 110 CFM=0.08, 130=0.10, 150=0.14
• Power Rating (V/Hz): 120/60
• Motor Type (AC/DC): DC (ECM)
• ENERGY STAR Certified: Yes
• Other Approved Codes and Standards: ASHRAE 62.2, LEED, CA T-24,
• Duct Diameter: 6 inch
• Mounting Options: Horizontal
• Ventilation Design Approach: Bathroom Exhaust Fan
• Warranty: 6 years ECM Motor, 3 years all other parts
• Industry: Residential, Light Commercial
• Radiation Damper Available: Yes, PC-RD05C5
• UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes
