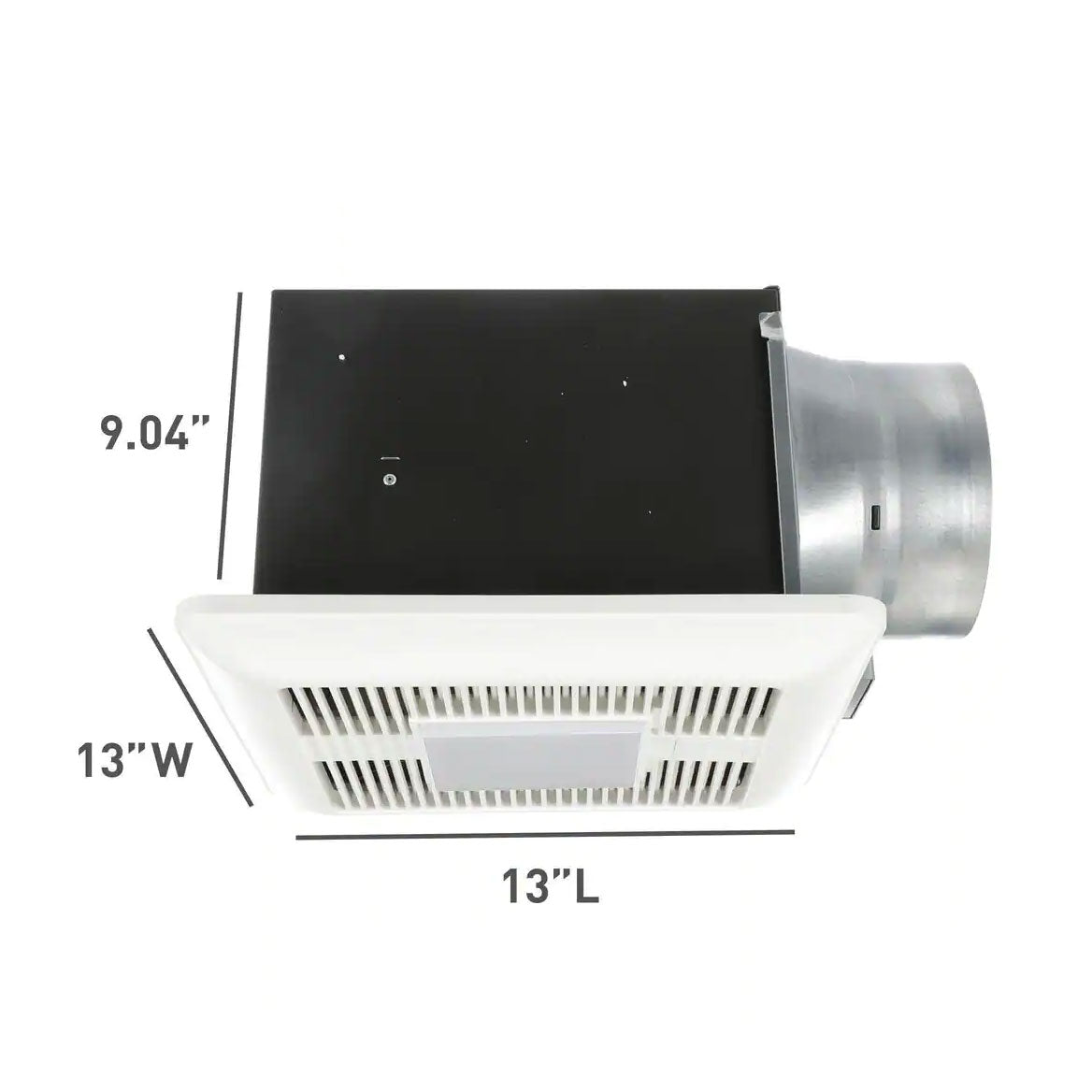

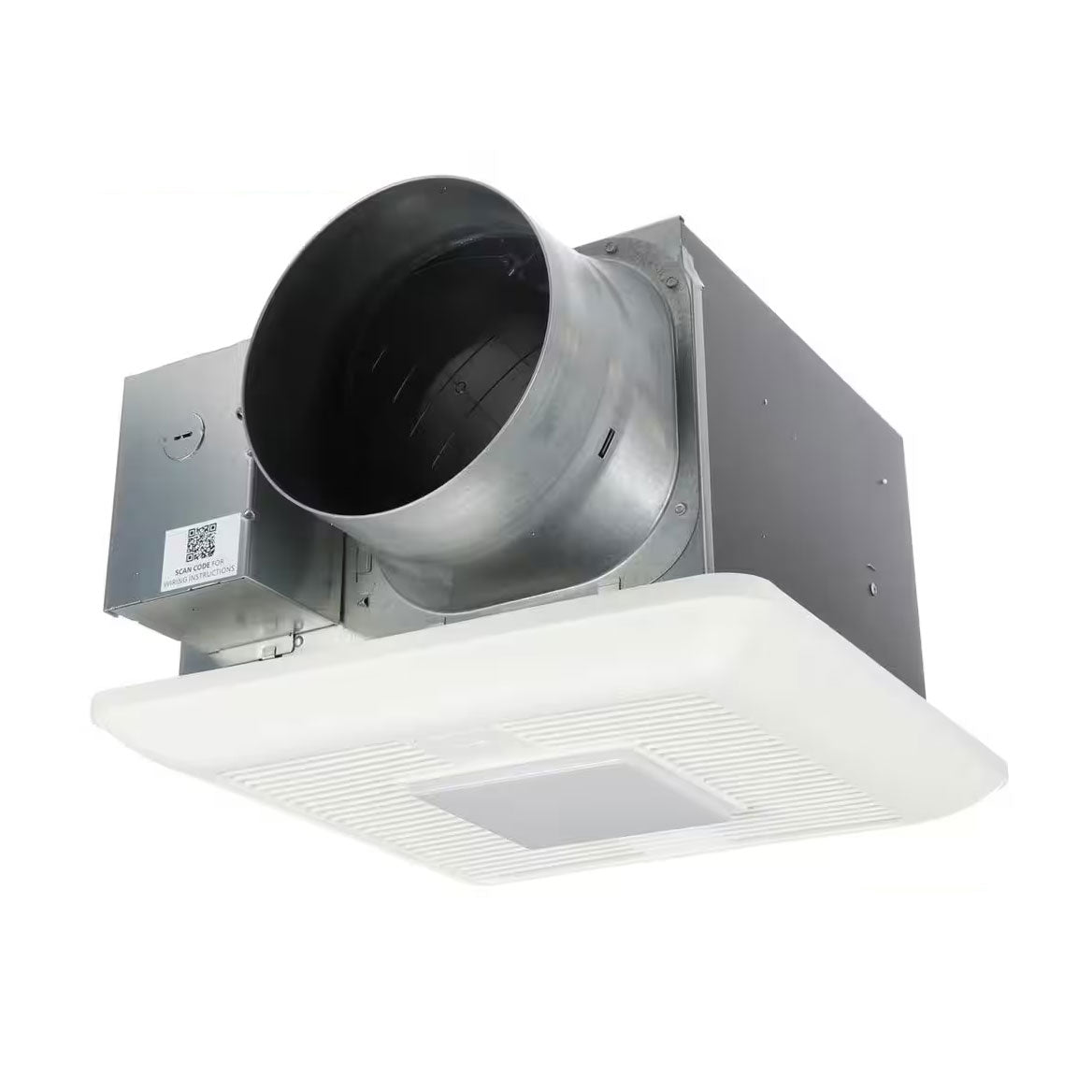

Panasonic FV-1115VKL2 - WhisperGreen Select Ventilation Fan with Light - 0.8 Sones -  110-130-150 CFM

Reintroducing WhisperGreen Select, our whole house IAQ solution with enhancements. First, our redesigned elegant grille incorporates a 10W dimmable LED chip panel with <1W LED night light for energy efficient illumination. Another new feature is our single-hinged Flex-Z Fast bracket for more flexible and easy installation. Other enhancements includes an environmentally friendly 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing design and dual access junction box that helps simplify wiring in tight spaces.

Features

• Customizable, all-in-one whole house precision ventilation solution ideal for use in the bathroom, laundry room, sun room, basement or garage

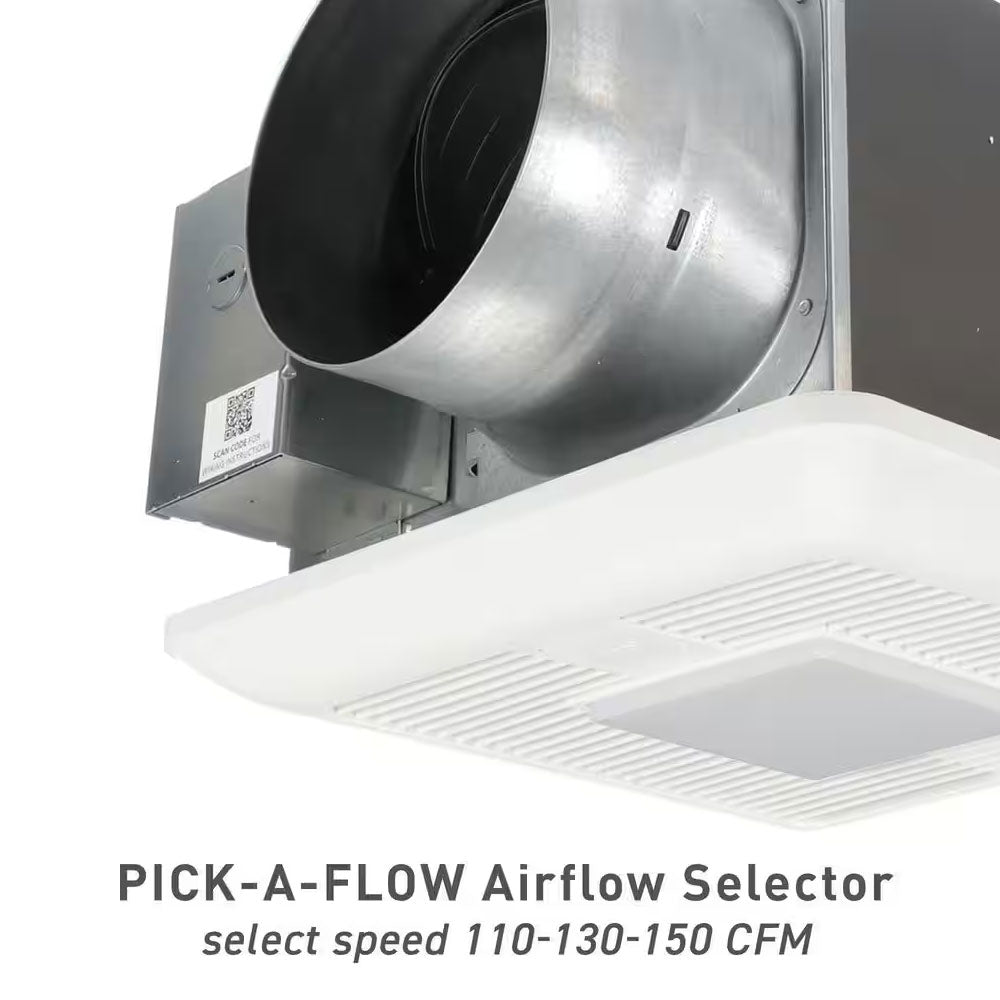

• Pick-A-Flow Airflow Selector; features a built-in speed selector (130-150 CFM model) combined with SmartFlow technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks

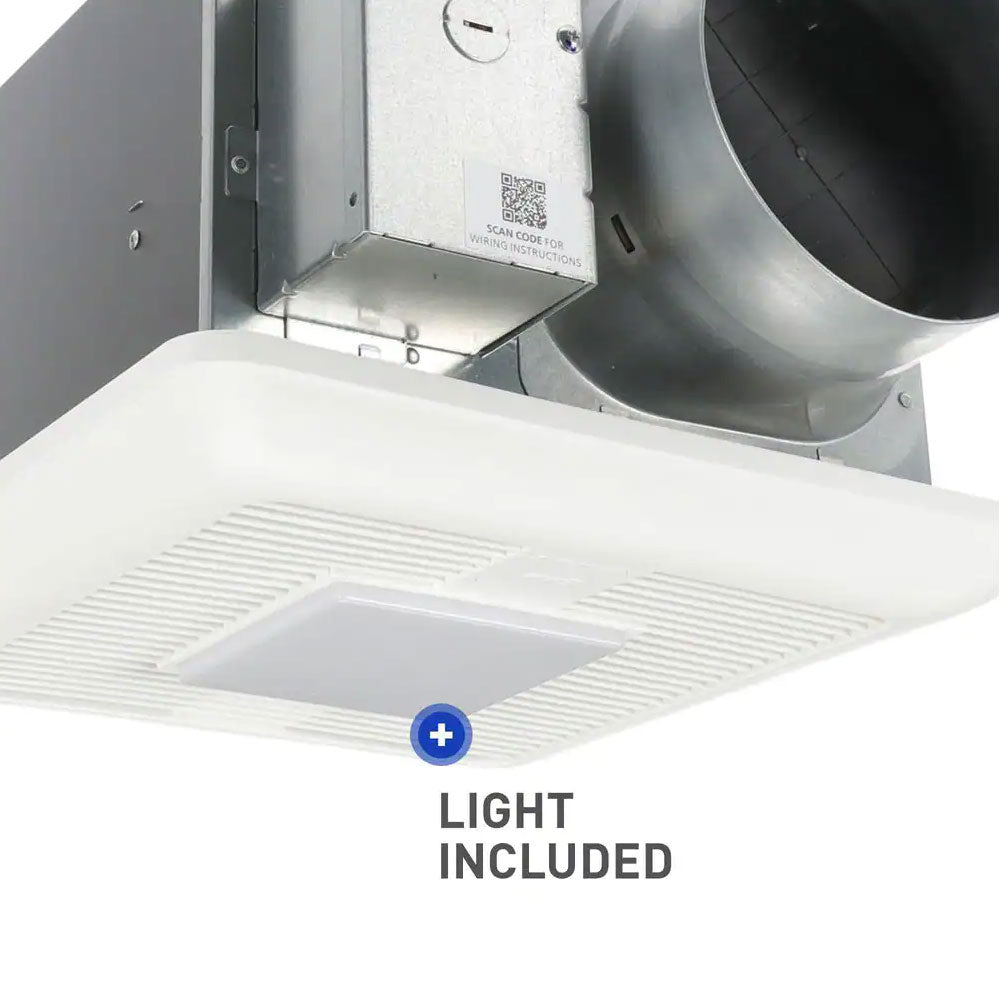

• New! Elegant grille with integrated 10W dimmable LED chip panel with <1W LED night light; JA-8 compliant for CA Tittle 24
• New! Environmentally friendly 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing design

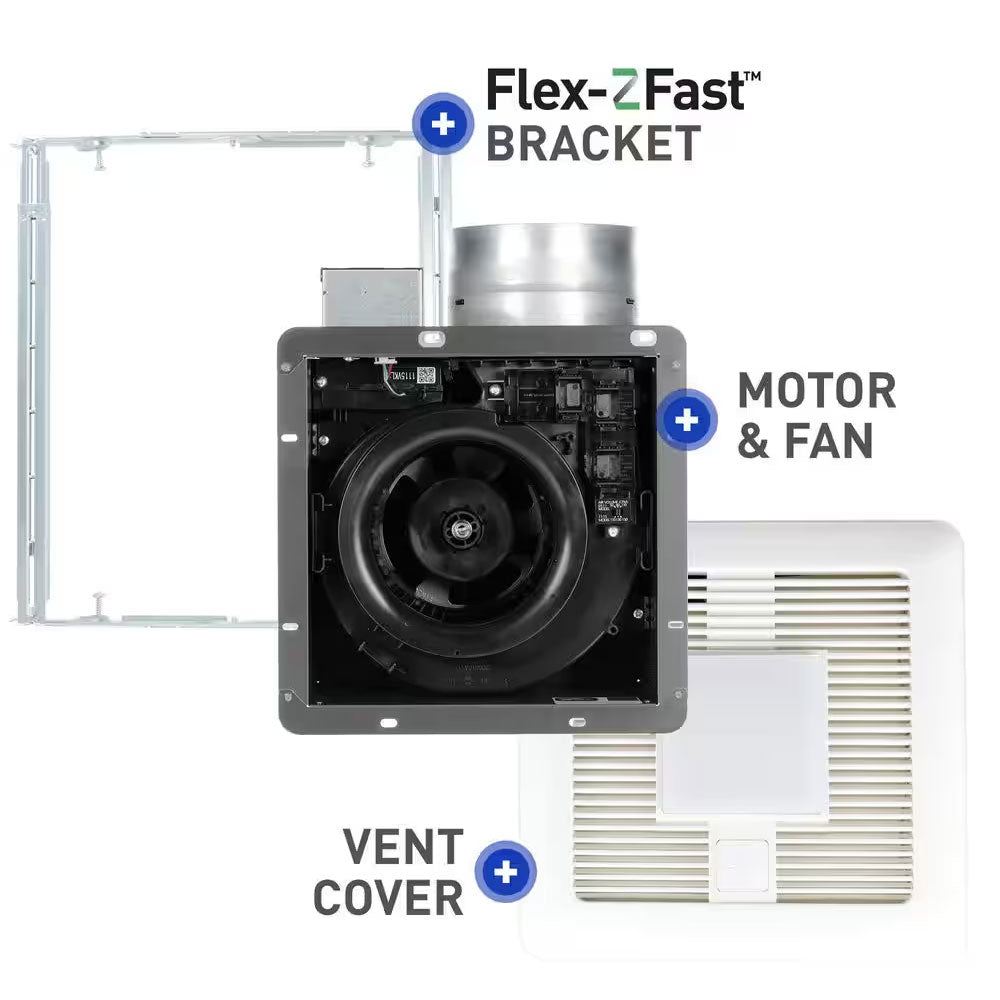

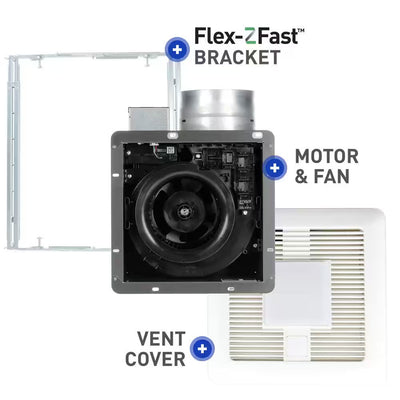

• New! Improved Flex-Z Fast; single-hinge bracket with added flexibility; fast and easy installation
• Air Volume Supply: 110, 130, 150 CFM
• Sound Levels: 0.3, 0.5, 0.8 Sones

Specifications

• Model number: FV-1115VKL2
• Fan Type: Fan/Light -LED
• Advanced Features:
  • Pick-A-Flow Airflow Selector
  • ECM motor with SmartFlow technology
  • Dimmable LED Light
• Air Volume Supply (CFM): @0.1= 110, 130, 150 @0.25= 110, 130, 150 @0.375= 107, 131, 127
• Noise (Sones): @0.1"SP (110, 130CFM) = <0.3 , 0.4 @ 150CFM @0.25"SP(110,130,150 CFM) = 0.3, 0.5, 0.8
• Power Consumption (Watts): 110 CFM=7.5, 130=10.4, 150=14.9
• Energy Efficiency (CFM/Watt): 110 CFM=14.6, 130=12.5, 150=10.1
• Current (Amps): 110 CFM=0.08, 130=0.11, 150=0.15
• Power Rating (V/Hz): 120/60
• Motor Type (AC/DC): DC (ECM)
• ENERGY STAR Certified: Yes
• Other Approved Codes and Standards: ASHRAE 62.2, LEED, CA T-24, CALGreen
• Duct Diameter: 6 inch
• Mounting Options: Horizontal
• Ventilation Design Approach: Bathroom Exhaust Fan
• Warranty: 6 years ECM Motor, 3 years all other parts
• Industry: Residential, Light Commercial
• Radiation Damper Available: Yes, PC-RD05C5
• Master Carton Gross Weight (lbs.): 12.55 (1 unit)
• Master Carton Dimensions (HxWxD): 11.85 x 14.17 x 16.73
• UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes
