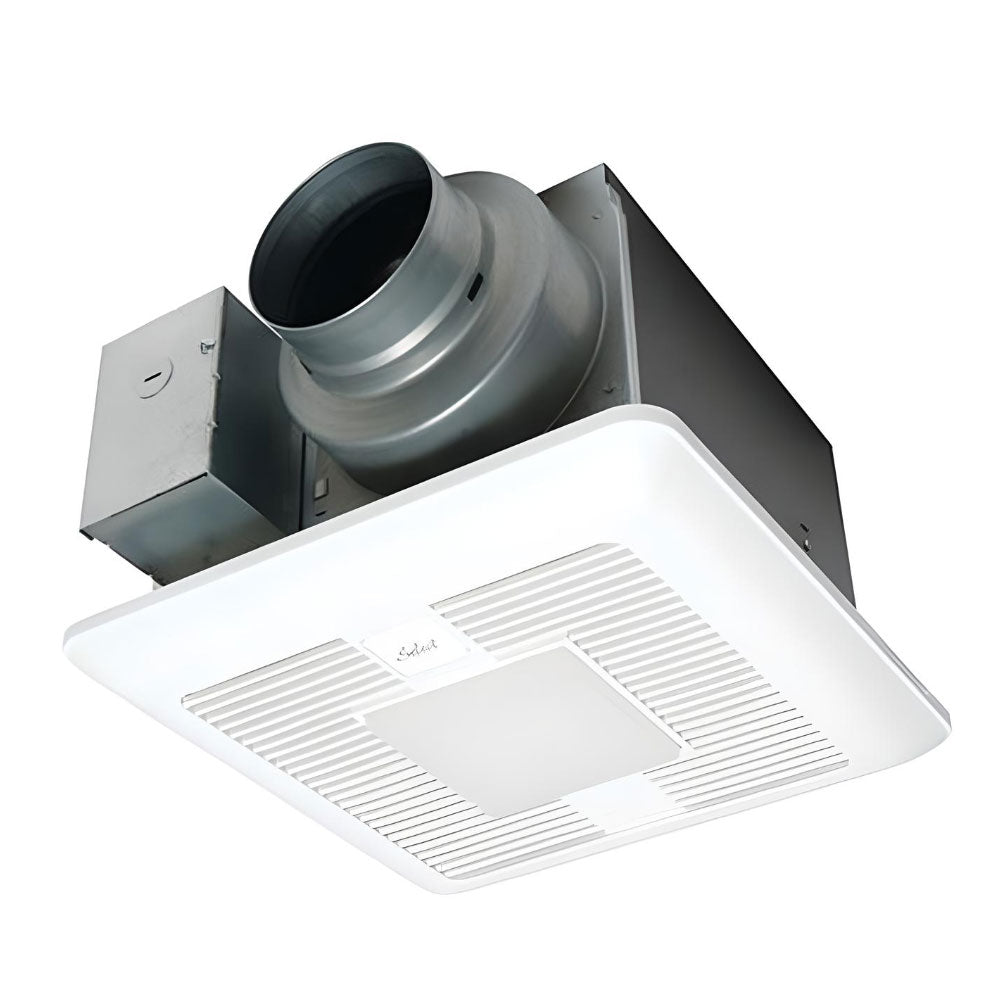

Panasonic FV-0511VKL2 -  - WhisperGreen Select Ventilation Fan / Light - 50-80-110 CFM

Reintroducing WhisperGreen Select, our whole house IAQ solution with enhancements. First, the newly redesigned elegant grille incorporates a 10W dimmable LED chip panel with <1W LED night light for energy efficient illumination. Our improved single-hinged Flex-Z Fast bracket for more flexible and fast installation. Additionally, WhisperGreen Select includes an environmentally friendly 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing design.

Features

  • Customizable, all-in-one whole house precision ventilation solution ideal for use in the bathroom, laundry room, sun room, basement or garage
  • Pick-A-Flow Airflow Selector (50-80-110 CFM model) combined with SmartFlow technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
  • New! Elegant grille with integrated 10W dimmable LED chip panel with <1W LED night light; JA-8 compliant for CA Tittle 24
  • New! Environmentally friendly 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing design
  • New! Improved Flex-Z Fast; single-hinge bracket with added flexibility, fast and easy installation

Specifications

  • Model number: FV-0511VKL2
  • Fan Type: Fan/Light - LED
  • Advanced Features: Pick-A-Flow Airflow Selector, ECM motor with SmartFlow technology, Dimmable LED Light
  • Air Volume Supply (CFM): @0.1= 50, 80, 110 @0.25= 50, 80, 110 @0.375= 50, 78, 103
  • Noise (Sones): @0.1"SP (50,80,110 CFM) = <0.3, <0.3, 0.4 @0.25"SP(50,80,110 CFM) = 0.4, 0.5, 0.9
  • Power Consumption (Watts): 50 CFM=3.2, 80=5.3, 110=10.5
  • Energy Efficiency (CFM/Watt): 50 CFM=15.7, 80=15.3, 110=10.5
  • Current (Amps): 50 CFM=0.04, 80=0.06, 110=0.11
  • Power Rating (V/Hz): 120/60
  • Motor Type (AC/DC): DC (ECM)
  • ENERGY STAR Certified: Yes
  • Other Approved Codes and Standards: ASHRAE 62.2, LEED, CA T-24, CALGreen

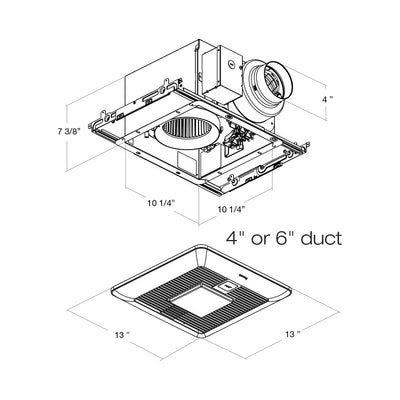

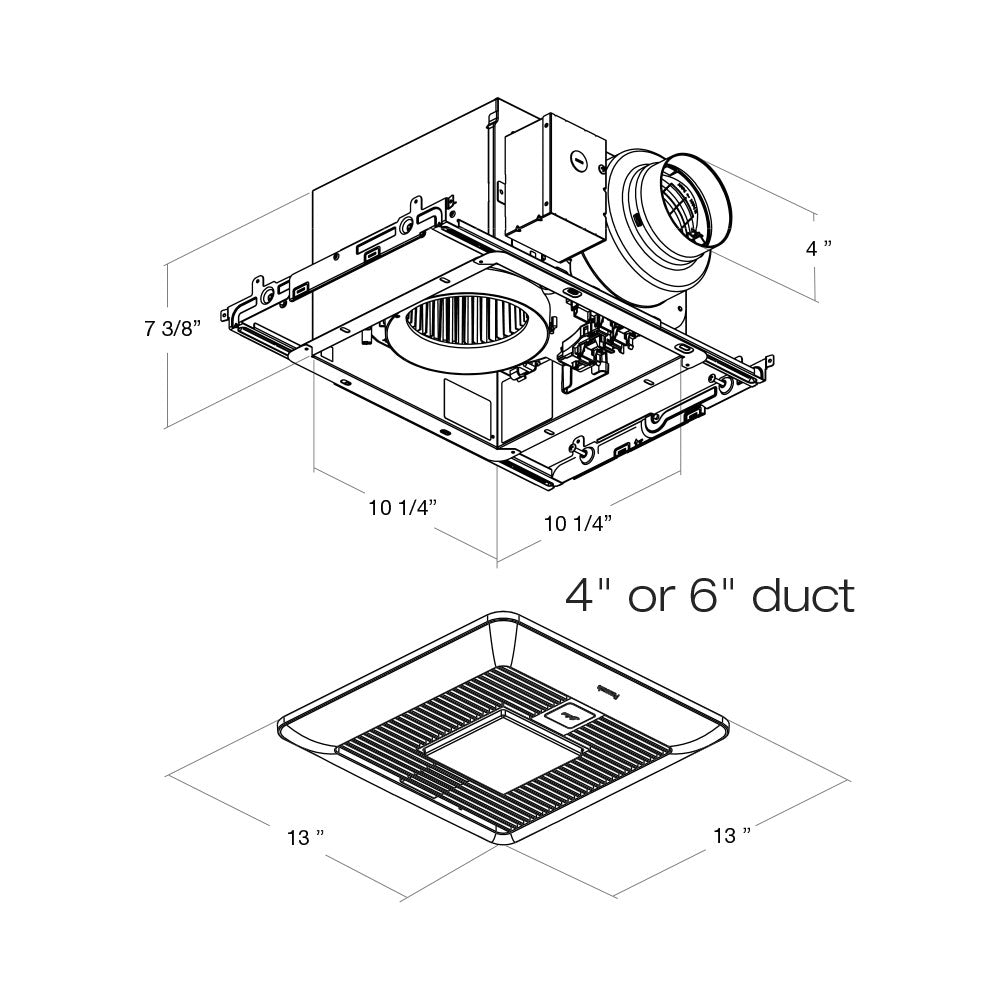

  • Duct Diameter: 4 inch
  • Mounting Options: Horizontal
  • Warranty: 6 years ECM Motor, 3 years all other parts
  • Industry: Residential, Light Commercial
  • Radiation Damper Available: Yes, PC-RD05C5
  • UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes
