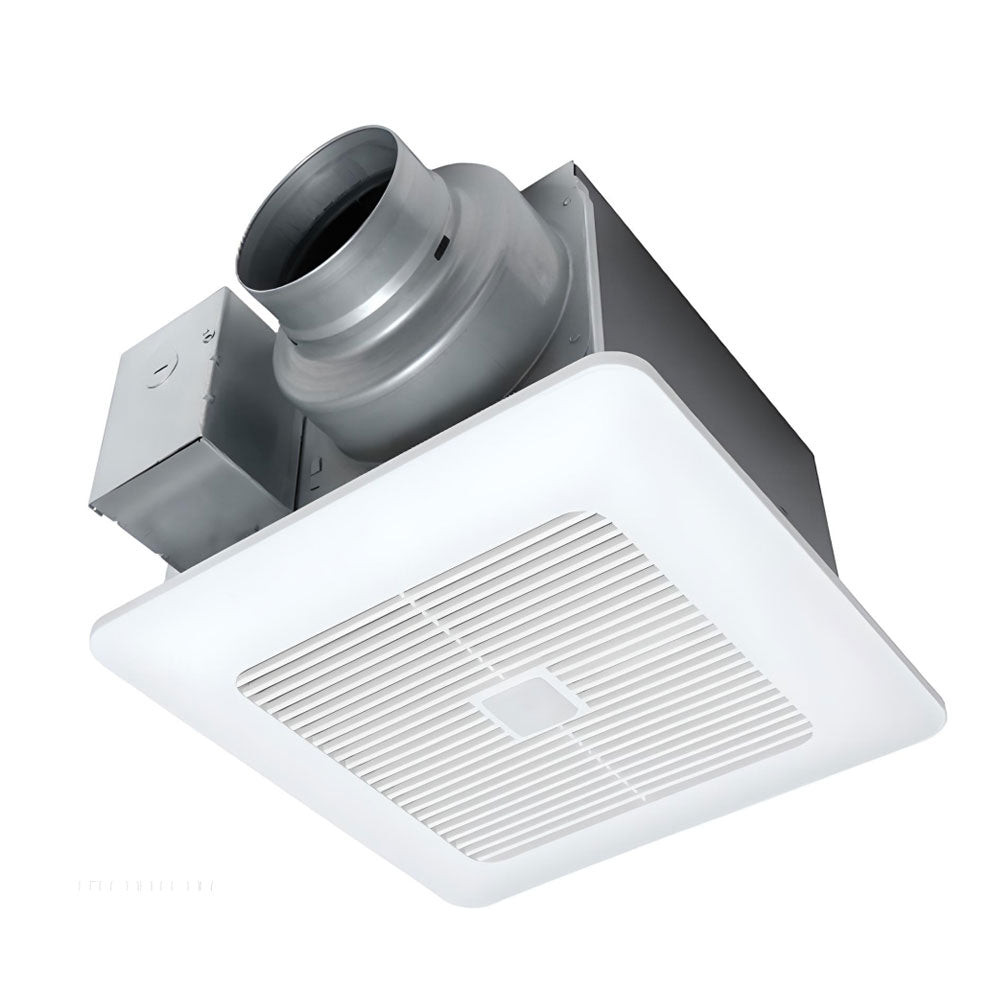

Panasonic FV-0511VQC1 - WhisperSense DC Ventilation Fan - 50-80-110 CFM

WhisperSense DC Precision Spot Ventilation fan with built-in Dual Sensor Technology (Motion & Moisture) for automatic moisture and odor control. Features Pick-A-Flow speed selector switch to select required airflow (50-80-110 CFM) and ECM Motor with SmartFlow technology for optimum performance. Can be used to comply with the latest codes and standards.

Features

• Precision spot ventilation fans ideal for use in the bathroom, laundry room, mud room, basement or garage
• Revolutionary ECM motor with SmartFlow technology for optimum CFM output
• Pick-A-Flow Speed Selector (50-80-110 CFM) combined with SmartFlow Technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
• Dual Sensor Technology (Motion & Moisture) provides built-in redundancy for the ultimate in automatic moisture and odor control
• Flex-Z Fast bracket provides flexible, fast & trouble-free installation, even from below the ceiling

Specifications

• Static Pressure in inches w.g.: 0.1|0.25|0.1|0.25|0.1|0.25
• Air Volume (CFM): 110|111|80|83|50|53
• Noise (Sones): <0.3|0.9|<0.3|0.6|<0.3|0.4
• Power Consumption (Watts): 10.6|16.4|5.9|10.8|4.0|7.2
• Energy Efficiency (CFM/Watt): 10.6|6.9|13.6|7.7|12.5|7.4
• Speed (RPM) 1342 1480: 957|1239|821|1172|756|1093
• Current (Amps): 0.18|0.26|0.11|0.18|0.07|0.13
• Power Rating (V/Hz): 0.27
• Motor Type (AC/DC): DC

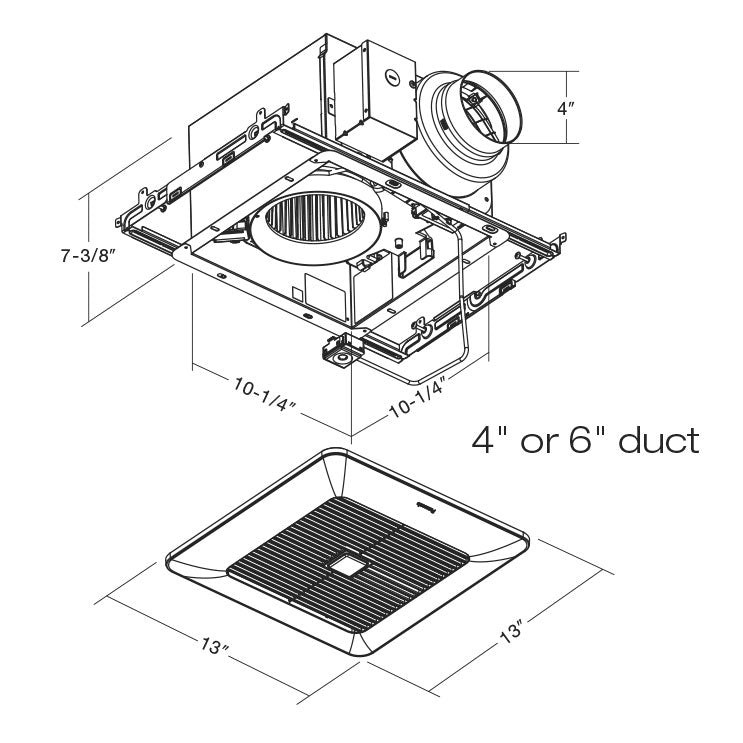

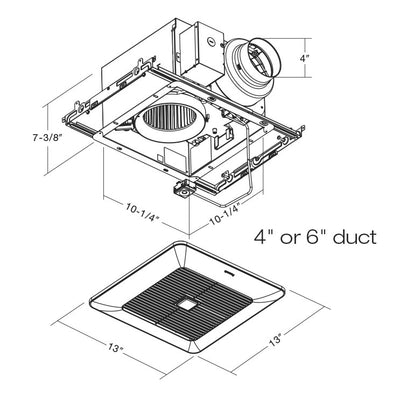

• Duct Diameter: 4" or 6"
• Mounting Opening (in sq.): 10-1/2"
• Grille Size (in sq.): 13"
• Type of Motor Bearing: Ball
• Thermal Fuse Protection: Yes
• Blower Wheel Type: Sirocco
• UL tub/Shower Enclosure: Yes
• Washington VIAQ Code: Yes
• California Title 24 Compliant: Yes
• Mfg in ISO 9001 Certified Facility: Yes
• Gross Weight (lbs): 11.2
• ENERGY STAR Qualified: Yes

HEZ2110443
