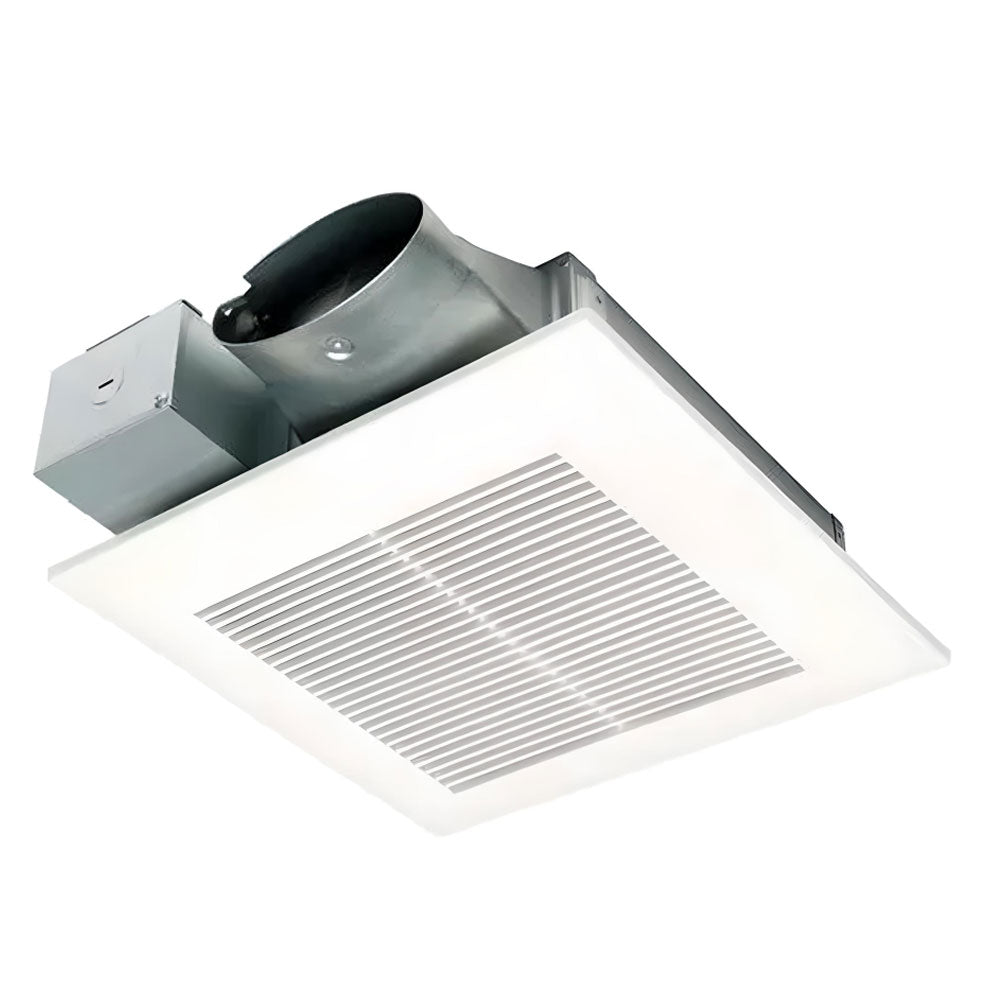

Panasonic FV-0510VS1 - WhisperValue DC Pick-A-Flow Ventilation Fan - 50-80-100 CFM

WhisperValue DC is the lowest profile ENERGY STAR rated ventilation fan available. Ideal for residential construction (Single; Multi-Family) and Manufactured Homes. It features Panasonic’s revolutionary ECM motor with SmartFlow optimum CFM technology, and incorporates a Pick-A-Flow airflow selector switch to customize airflow (50, 80 or 100 CFM).

Features

  • Precision spot ventilation fan, ideal for residential construction (single and multifamily) and manufactured homes
  • Revolutionary ECM motor with SmartFlow technology for optimum CFM output
  • Pick-A-Flow Airflow Selector – one fan, you choose the CFM (50, 80 or 100 CFM)

Specifications

  • Air Volume Exhaust (CFM): 50 @ 0.1" SP, 53 @ 0.25" SP, 80 @ 0.1" SP, 81 @ 0.25" SP, 100 @ 0.1" SP, 100 @ 0.25" SP
  • Master Carton Dimensions (HxWxD): 6.89 x 14.25 x 16.73
  • CFM: 50-70. 80-110
  • Other Approved Codes and Standards: ASHRAE 62.2, LEED, California Title 24, Washington VIAQ
  • Construction Type: Single Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling.
  • Current (Amps): 50 CFM= .09A, 80 CFM= .13A, 100 CFM=.20A
  • Ventilation Design Approach: Continuous Ventilation. Spot Ventilation

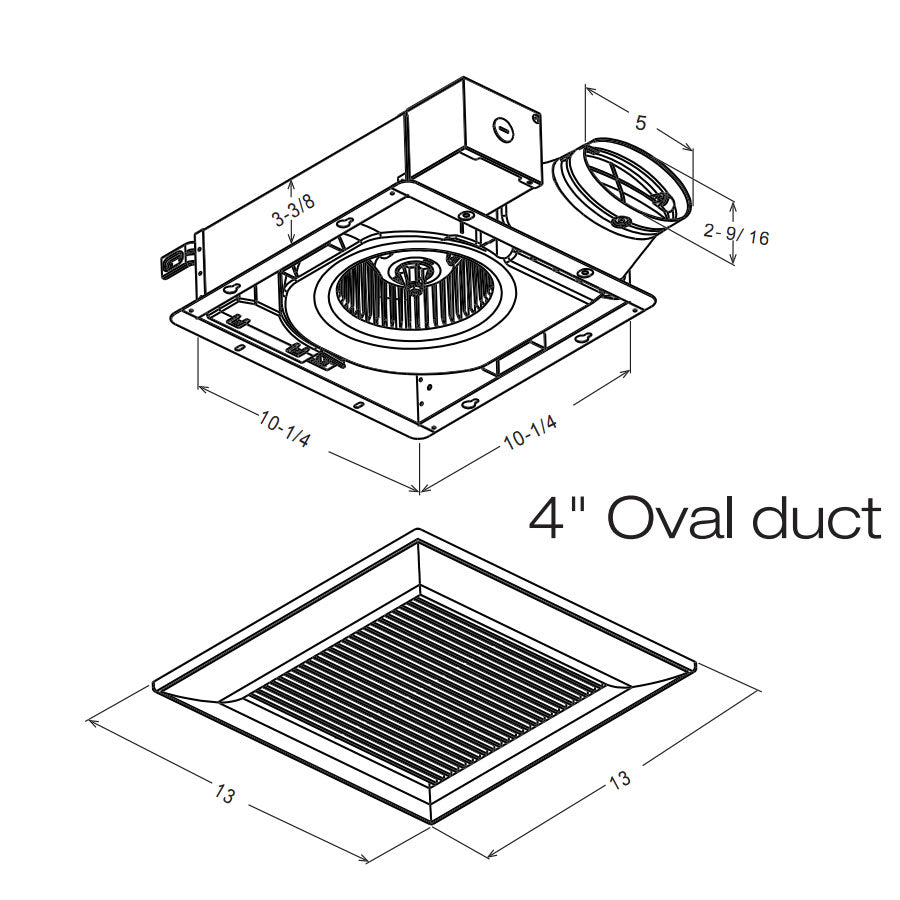

  • Duct Diameter: 4" Oval
  • Energy Efficiency (CFM/Watt): 50 CFM= 12.8 CFM/W, 80 CFM=11.4 CFM/W, 100 CFM = 9.2 CFM/W
  • ENERGY STAR Certified: Yes
  • Fan Type: Fan Only
  • Grille Size (in sq.): 13"
  • Industry: Residential. Light Commercial
  • Installation: Ceiling Mount, Wall Mount (UL), Tub/Shower (UL)
  • Motor Type (AC/DC): DC
  • Mounting Opening (in sq.): 10-1/2"
  • Mounting Options: Ceiling Mount (UL). Wall Mount (UL). Tub/Shower (UL)
  • Noise (Sones): 50 @ 0.1" SP = < 0.3, 53 @ 0.25" SP = 0.5, 80 @ 0.1" SP = less than 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 100 @ 0.25" SP = 1.3
  • Power Consumption (Watts): 50 CFM= 4.4W, 80 CFM= 7.2W, 100 CFM=11.1W
  • Power Rating (V/Hz): 120/60
  • Product Family Name: WhisperValue DC
  • Radiation Damper Available: Yes
  • UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes
  • Warranty: 6 year DC Motor, 3 Year Parts
