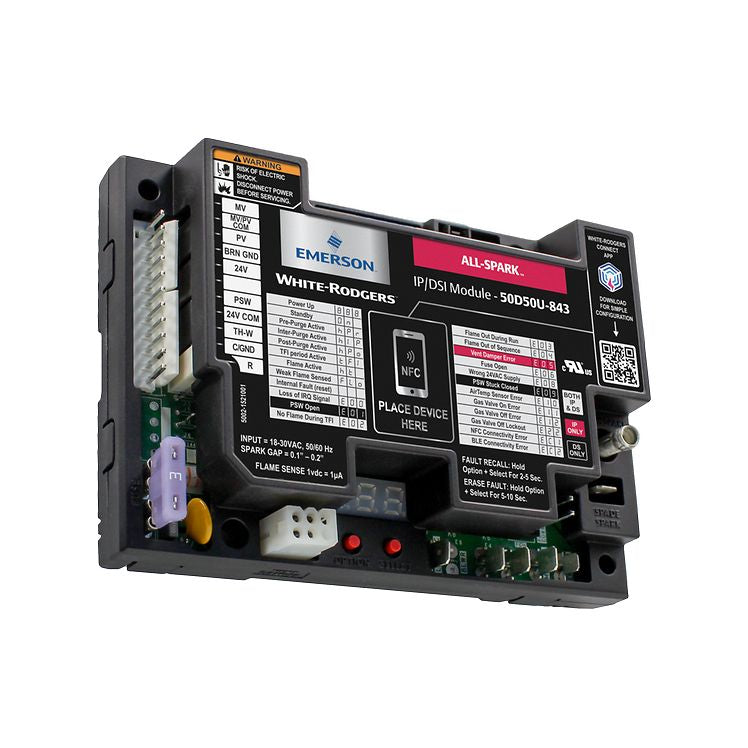

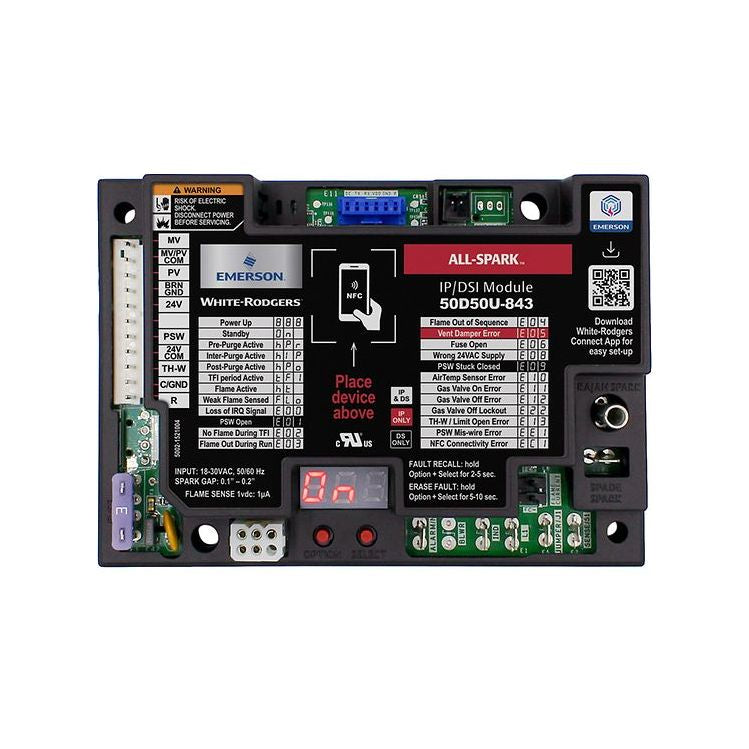

White Rodgers 50D50U-843 All-Spark Intermittent Pilot / Direct Spark Ignition Module

All-Spark makes technicians' jobs–and lives–easier. Service calls and installations are quicker and more efficient because they’ll always be prepared to handle both 24V IP and DSI systems. Currently, most competitors don’t offer configuration with DSI modules, so a different module is needed for each application. But with All-Spark, you’ll be able to replace virtually all 24V DSI SKUs.

By eliminating the need to search through multiple controls on a cluttered truck or making trips to a distributor, All-Spark puts time back in the technicians' day to fit in additional jobs or "reignite their own sparks" with some well-deserved "me time."

Features

• Configurable for both 24V intermittent pilot and direct spark ignition modules
• Streamline inventory by replacing over 1000+ 24V IP/DSI part numbers

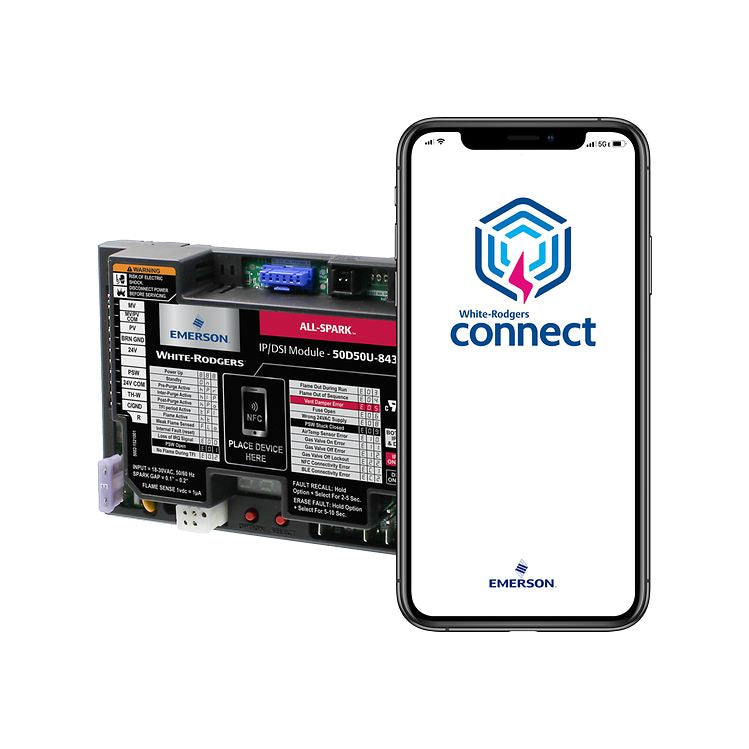

• Quick configuration without power and simple diagnostics with the White-Rodgers Connect app
• 7-Segment display provides additional configuration options and expanded fault code message reporting
• Rajah and spade spark terminals on-board eliminate the need for an external adapter
• Applications include gas furnaces, water heaters, boilers, cooking and laundry equipment, unit heaters, infrared and tube heaters
• Easy install harness converts old board wiring to fit All-Spark
• Use F67-8535 (sold separately) to maintain temperature without an external thermostat in infrared and tube heaters

Specifications

• Voltage (Low): 24 Vac, 50/60 Hz
• Voltage (Line): 120 Vac, 50/60 Hz
• Temperature Range Ambient Operating" -40 degrees to 175 degrees F
• Humidity Range: 5% to 93% relative humidity (non-condensing)
• Certifications: UL Recognized (Canada & US)
