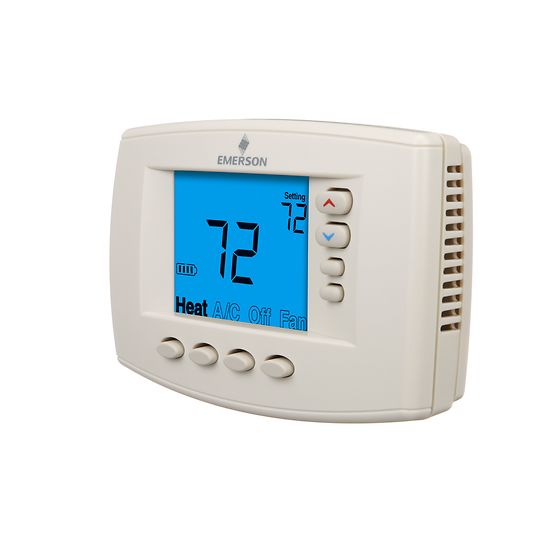

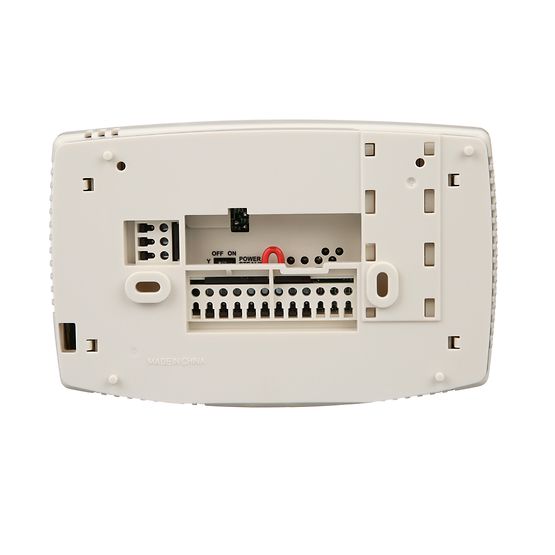

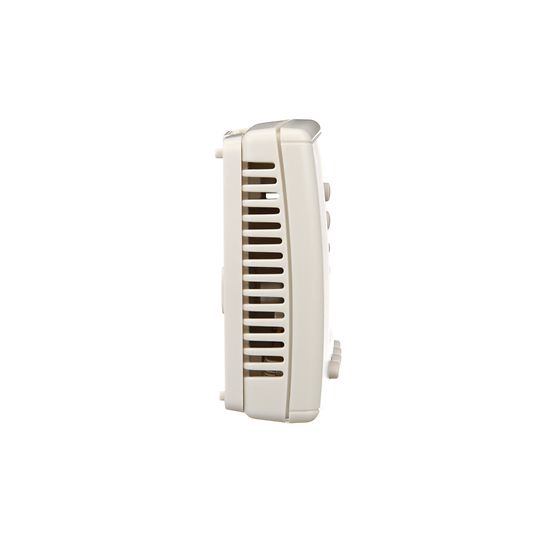

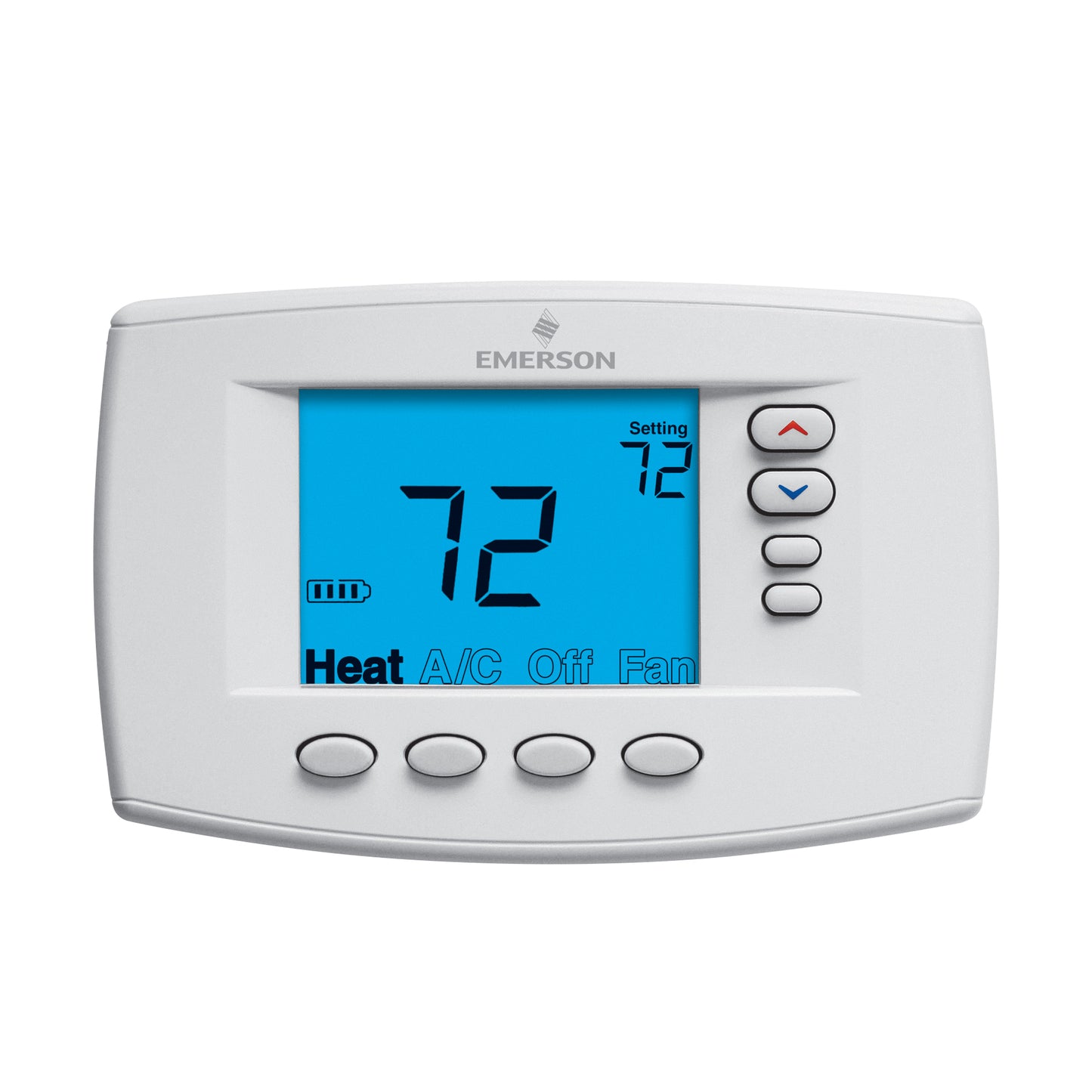

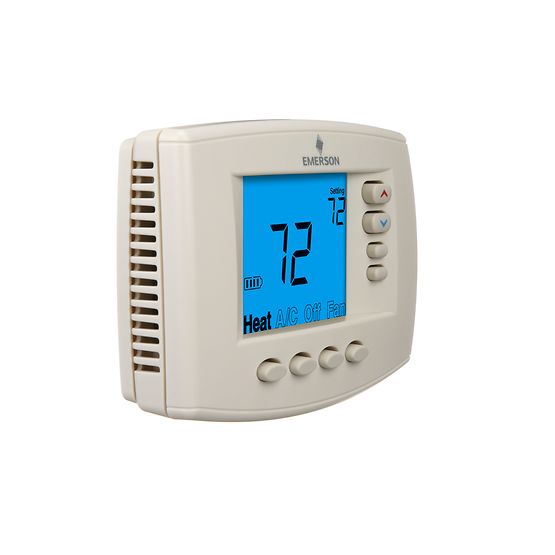

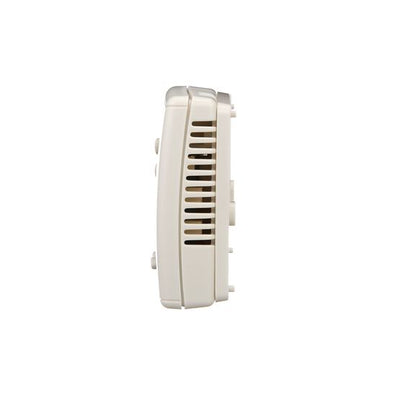

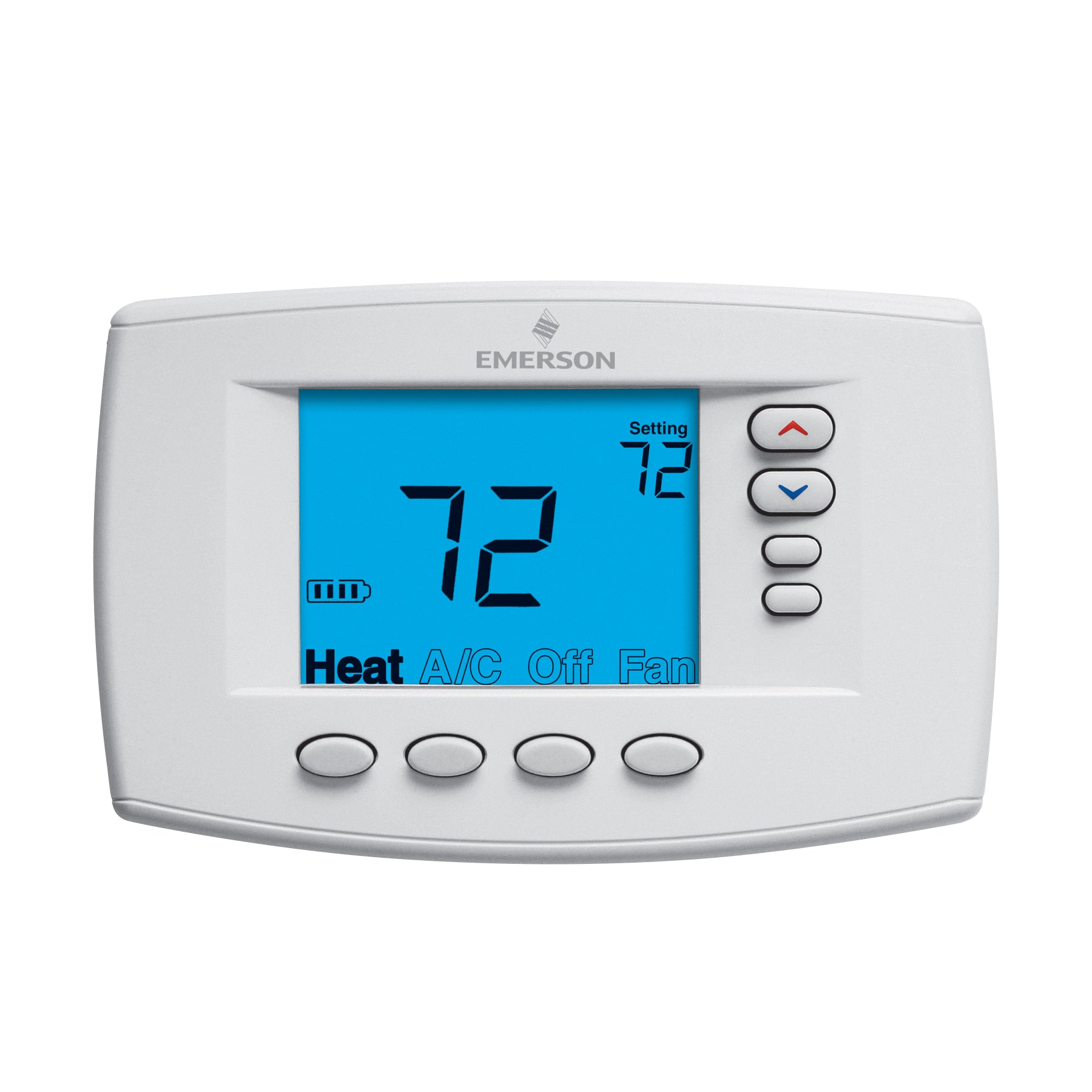

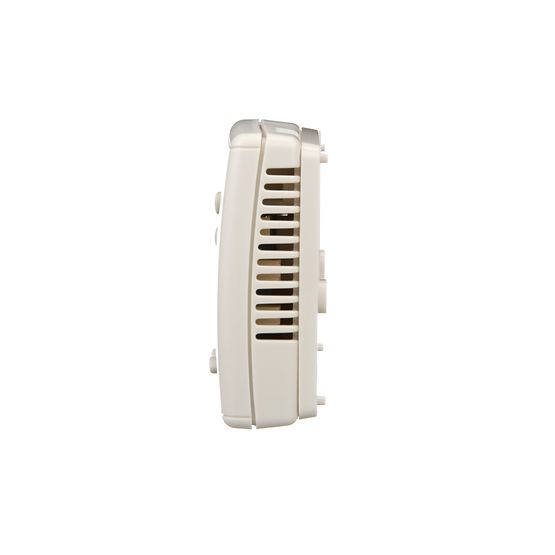

White Rodgers 1F95EZ-0671 - Blue Series 6" Thermostat

Easy Reader Thermostats offering more premium features than higher priced competitive models.

Features

• Universal models quickly configure for single stage, multi-stage or heat pump
• Heat pump dual fuel option (with or without outdoor sensor) eliminates the need for a fossil fuel kit on selected models
• Easy Reader model is easy to read and easy to use.
• Commercial offers occupied damper or economizer control and locking cover and subbase
• Keypad lockout and set-point temperature limits

Specifications

• Program Options: Programmable - 7 Day or Non-Programmable
• Program Periods Per Day Options: 4, 2, None
• Stages Heat/Cool: Universal - Single Stage 1H/1C, Multi-Stage 2H/2C, Heat Pump 4H/2C
• Style: Horizontal
• Typical Applications: Gas/Oil/Electric
• Terminals: RC, RH, C, W/E, W2, Y, Y2, O/B, G, L, 6,
• 3-Wire Zone Valve Connections: Yes
• Millivolt Compatible: Yes
• Economizer Connections: No
• Humidity Control: No
• Heat Pump Dual Fuel Control: Yes, No Sensor Required
• Heat Pump Auxiliary Lockout Control: None
• Outdoor Sensor Option: None
• Remote Sensor Options: None
• Power Source: Battery, Hardwire, Power Stealing
• Auto Changeover (Heat/Cool): No
• Fan Option: Auto, On
• Filter Change Reminder: Yes
• Energy Mgt. Recovery/Early Start: Yes
• Keypad Lockout: No
• Set-Point Temperature Limits: Yes
• Display Type: 6 square in.
• Backlight: Key Press or Continuous with Common Wire
• Voltage: 20 to 30 Vac 50/60 Hz
• Amp Rating: 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
• Set-Point Range: 45 to 99 degrees F (7 to 37 degrees C)
