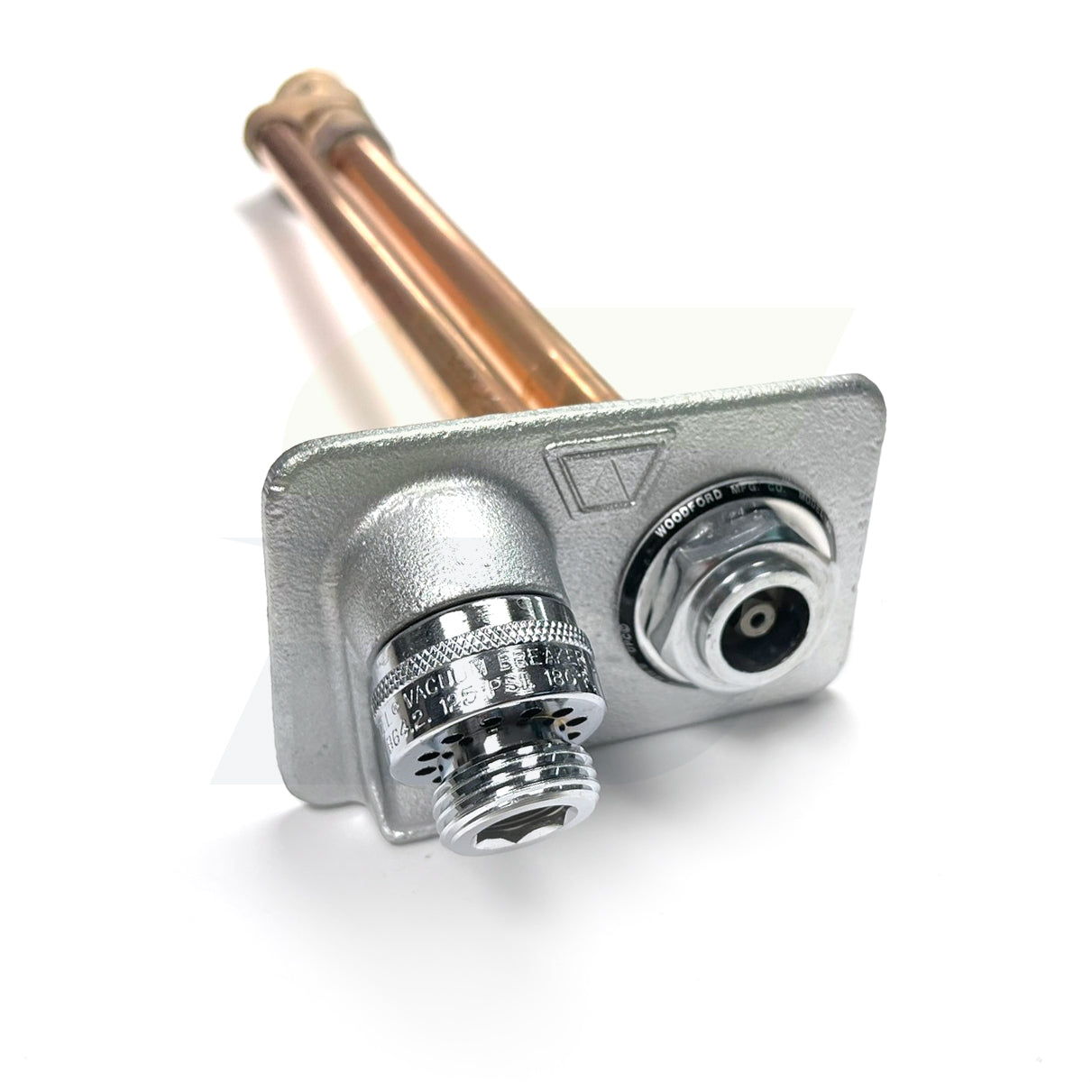

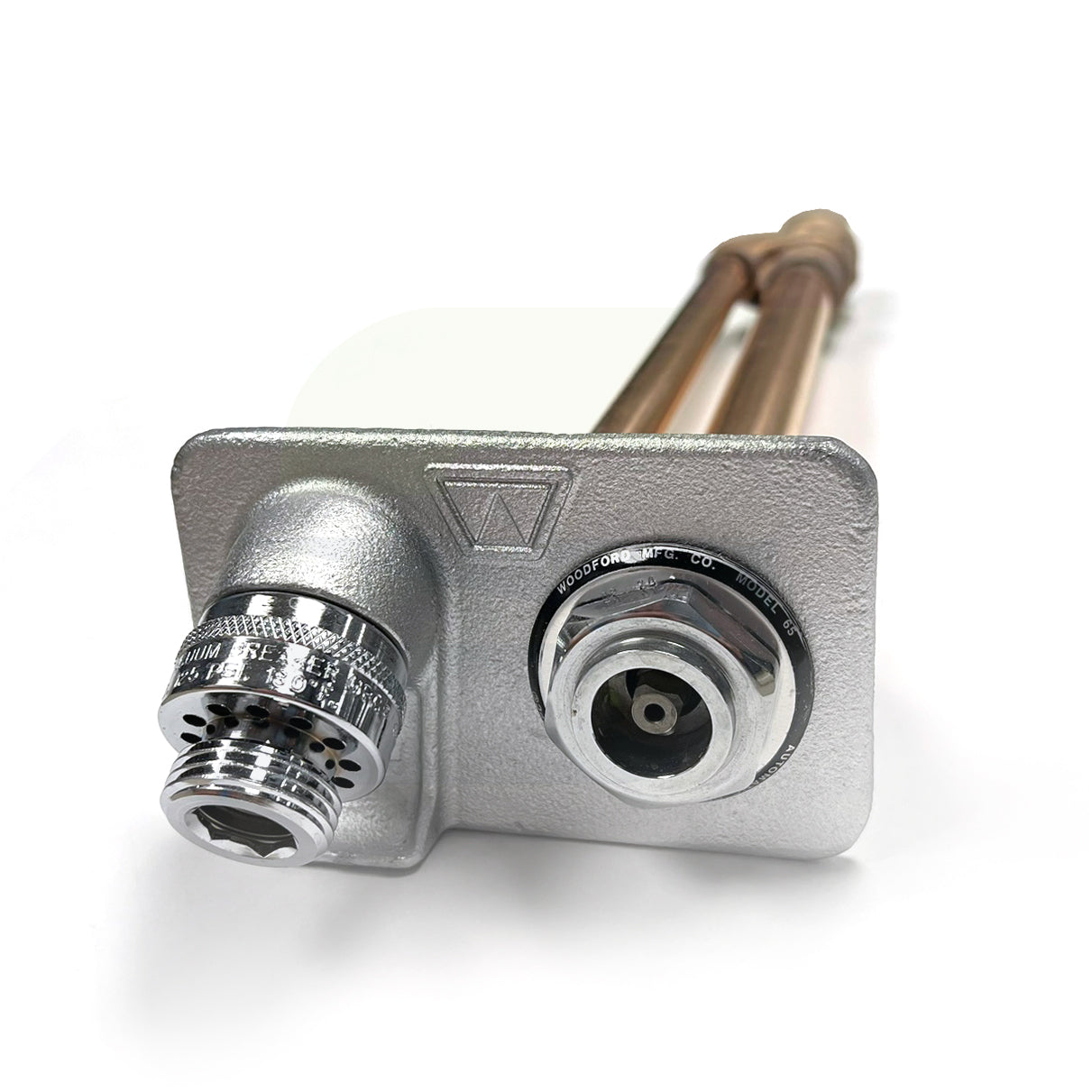

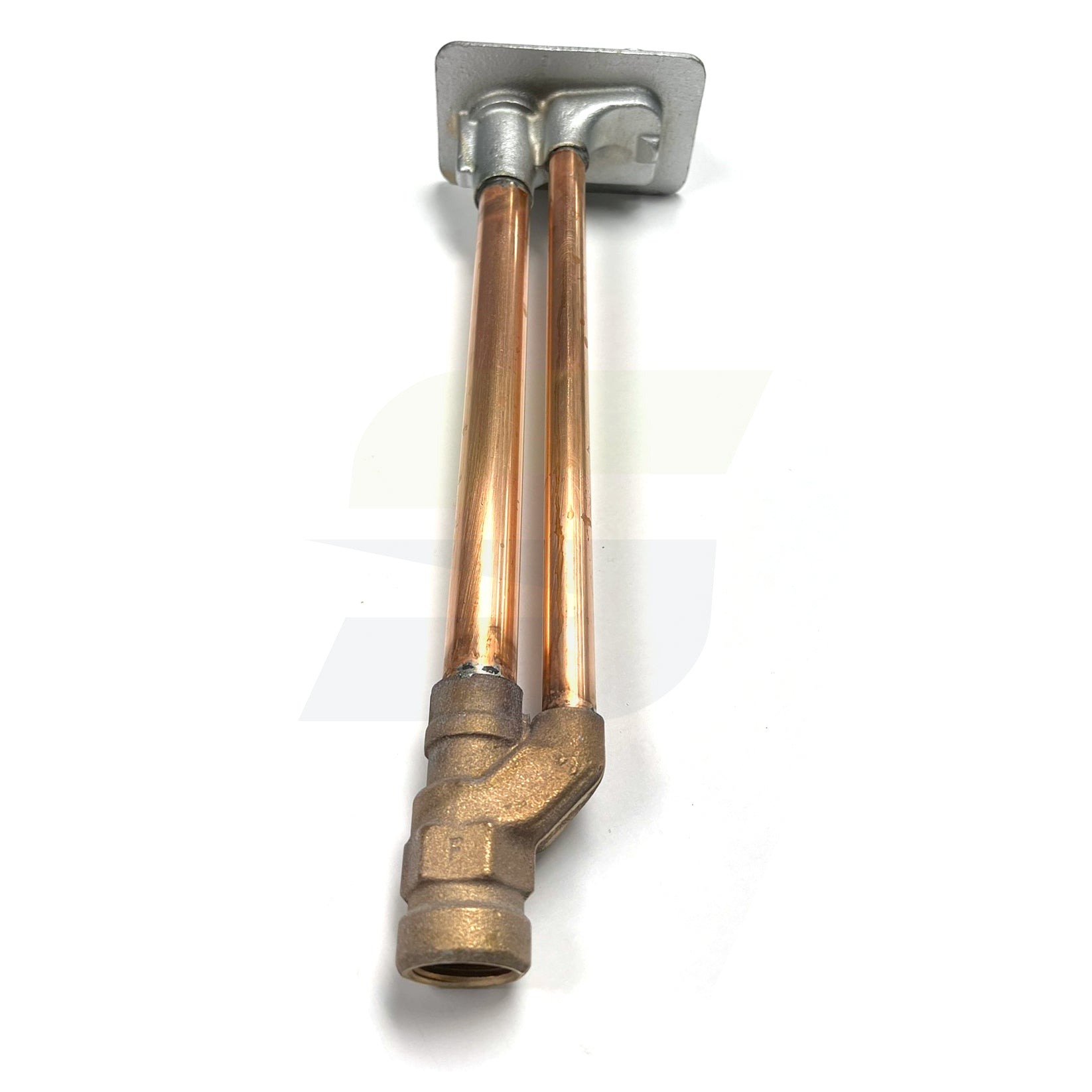

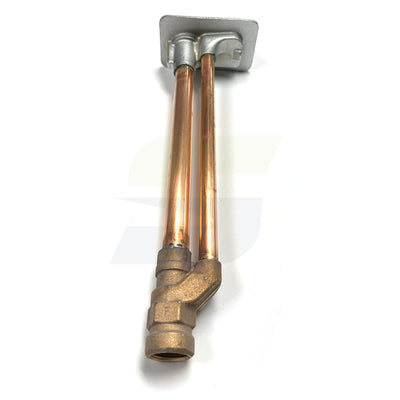

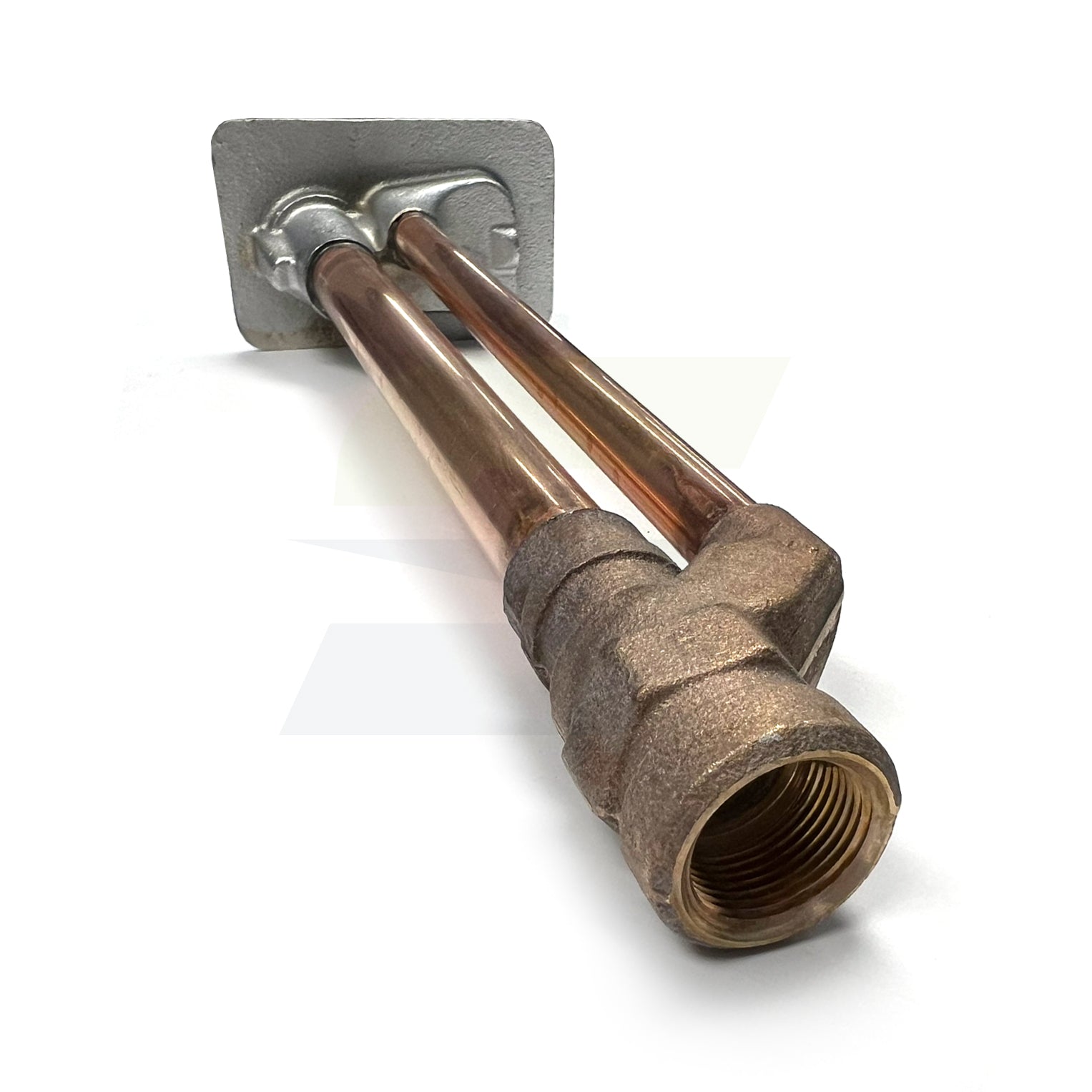

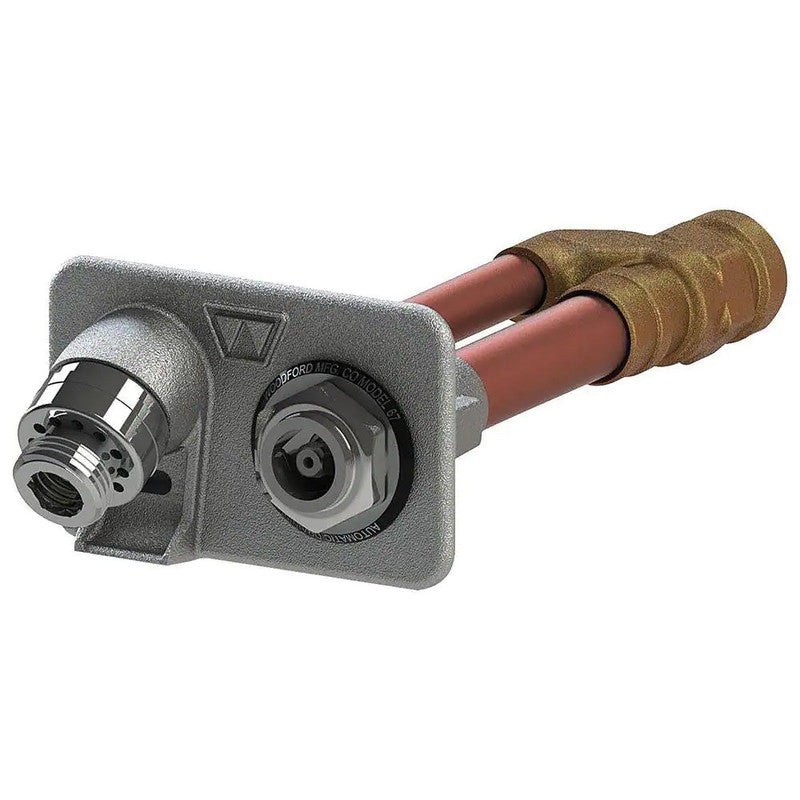

Woodford Model 65 - 3/4" FPT Automatic Draining Freezeless Wall Hydrant

The Model 65 is an automatic draining, freezeless wall hydrant with hose connection Anti-Siphon Vacuum Breaker. The hydrant drains as
handle is shut off, even if hose is attached. The Model 65 is designed to blend in with modern architecture for installation on restaurants, schools, office buildings, churches, apartments, motels, stores, shopping centers and industrial buildings.

Features

• Drain port under nozzle diverts water away from building
• Red Brass head & valve body
• 3/8" solid brass operating rod
• Copper casing tubes
• Hardened stainless steel operating stem
• One piece valve plunger
• Loose tee key operation
• No Lead Solder - All joints
• Supplied with adjustable wall clamp

Specifications

• Hydrant plus vacuum breaker is ASSE Standard 1019-B approved.
• HOSE CONNECTION VACUUM BREAKER:
  • NIDEL Model 34HA with 3/4 inch male hose thread
  • ASSE Standard 1011 approved
  • IAPMO listed
  • Meets Government Specification WW-P-54 1b
  • Single check valve
• Maximum Working Pressure: 125 psi
• Maximum Temperature: 120 degrees F
