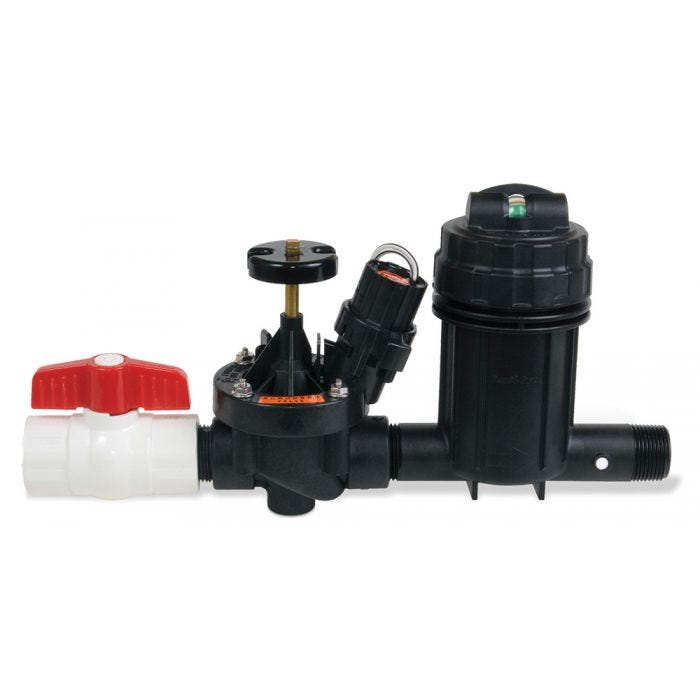

Rain Bird XCZ100PRBCOM - 1" Wide Flow Commercial Control Zone Kit with 1" Ball Valve

Contains the reliable, proven PESB Valve which provides patented scrubbing action, making this kit ideal for commercial dirty water applications.

Includes the Pressure Regulating, Quick-Check Basket Filter that has a clear indicator which goes from green to red, telling you when to clean the filter. This reduces maintenance and takes the guesswork out of cleaning the filter. In addition, the threaded top makes it easy to remove and clean the stainless steel screen.

Basket Filter and Pressure Regulator have been combined for one smaller Pressure Regulating, Quick-Check Basket filter that is 24% smaller than the previous unit.

Features

• Model Number: XCZ-100-PRB-COM / X10330
• Valve: 100PEB
• Wide Flow Commercial Control Zone Kit with 1 in. Ball Valve, 1 in. PESB Valve & 1 in. Pressure Regulating (40 psi) Basket Filter
• Complete kit is the simplest, smallest and most reliable Control Zone Kit for commercial applications between 0.3 and 20 gpm (11 and 76 l/m)
• Flow Range:  Wide flow - 0.3 to 20 gpm
• Valve Type:   Inline
• Pressure Regulation:  40 psi
• Filter Type:  Screen Filter
• Specifications:  Filtration-200 mesh(75 micron)
• Operating Range:  Inlet Pressure - 15 to 150 psi (1.0 to 10.3 bar)  Temperature - Up to 150 degrees F (66 degrees C)

IEZR101704
