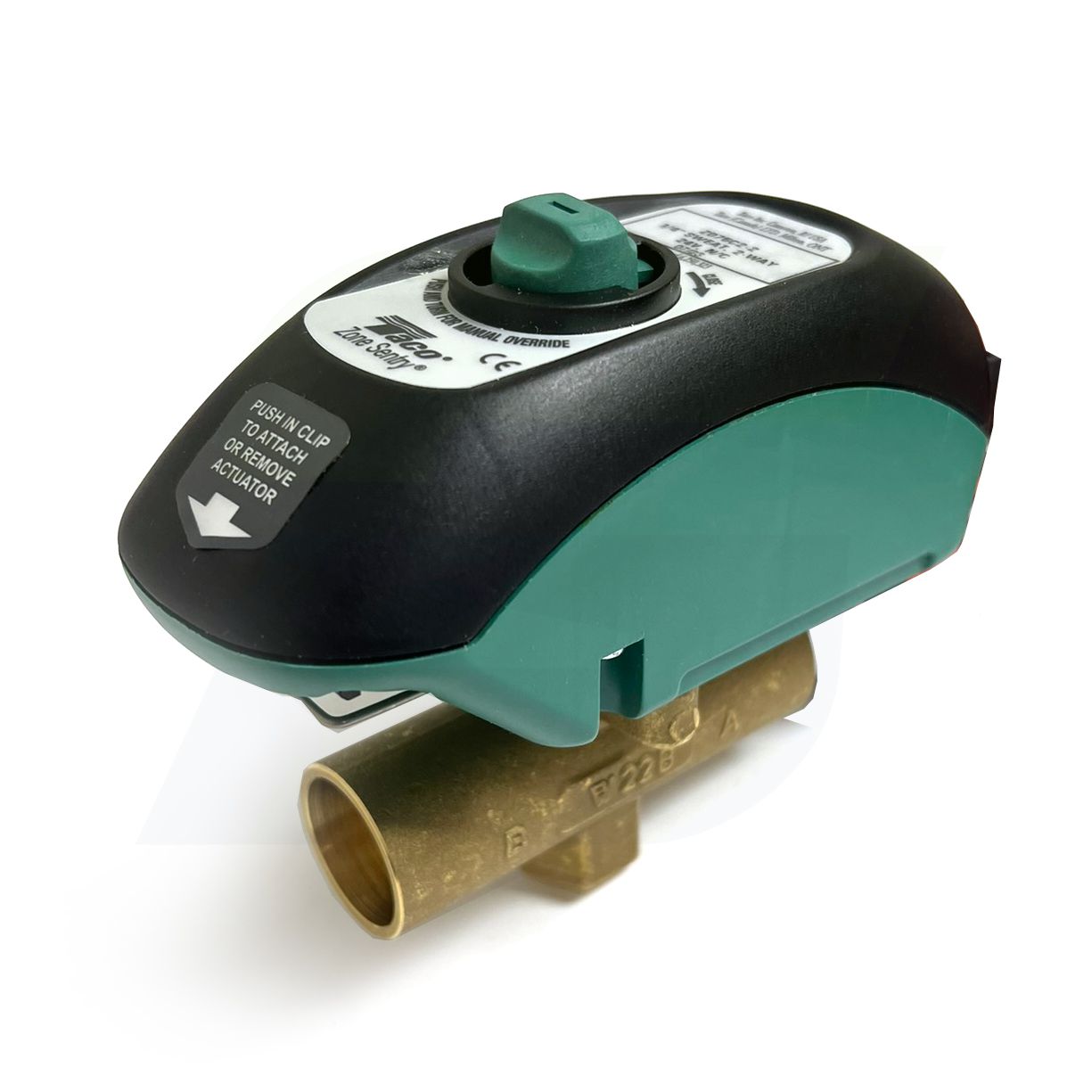

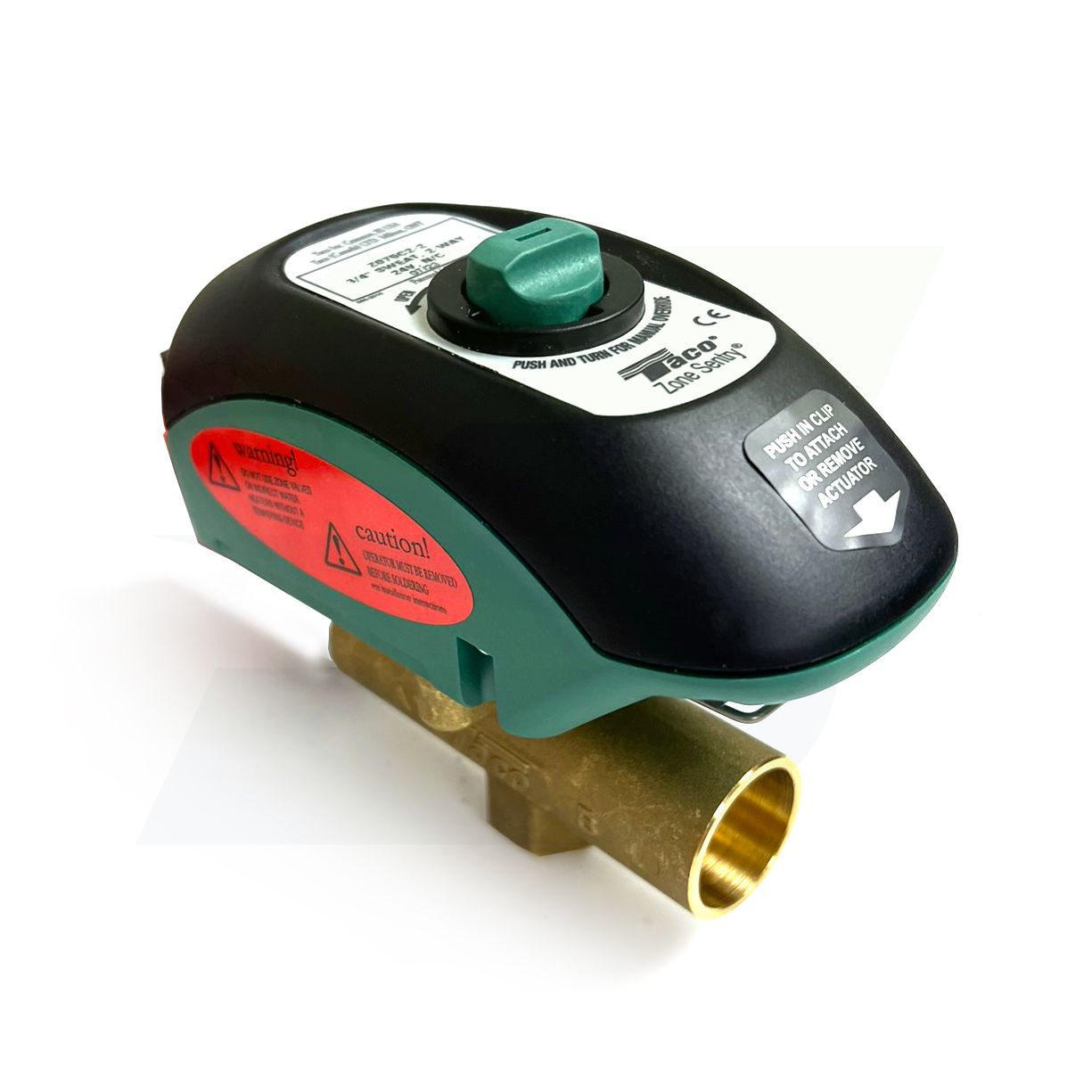

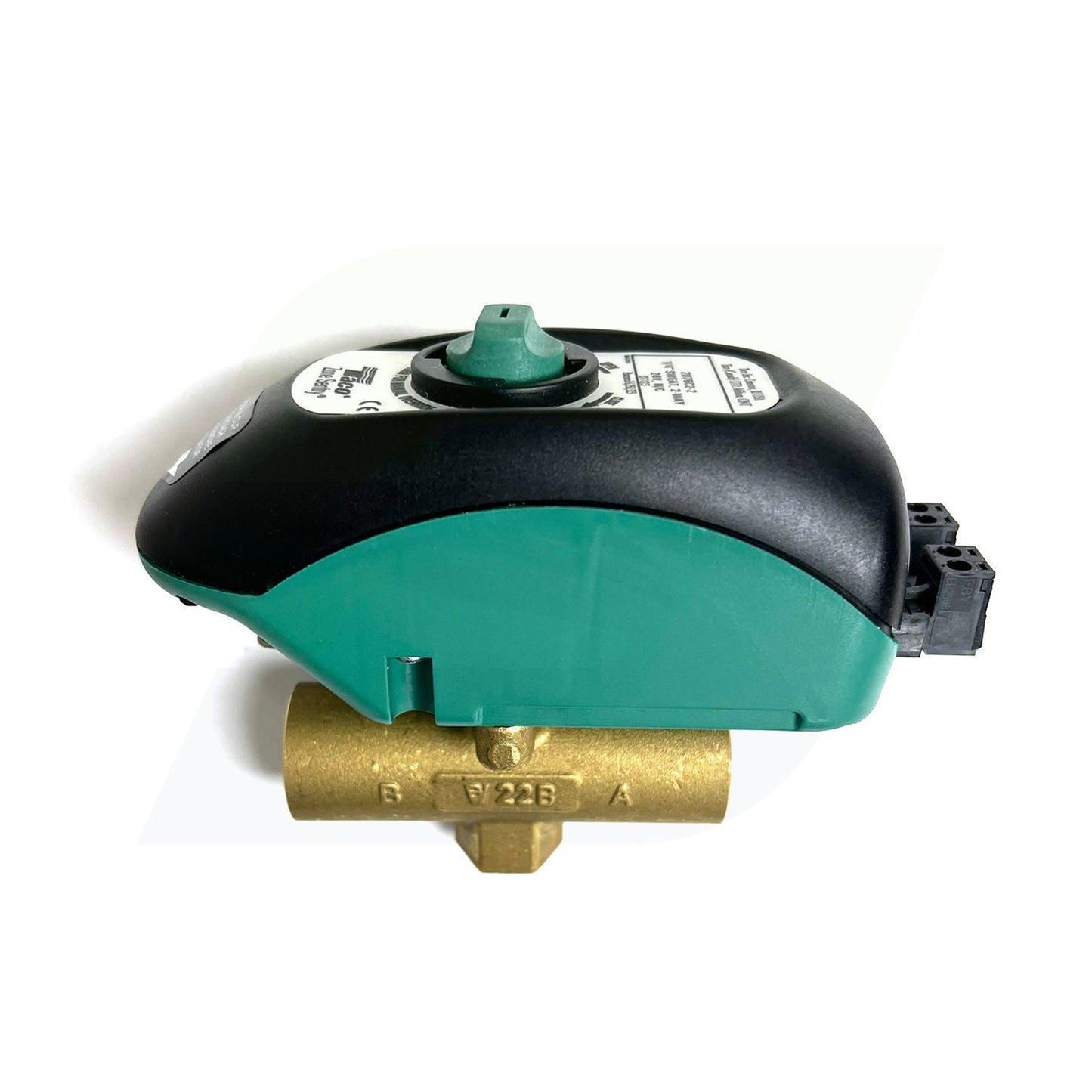

Zone Sentry System

The Taco Zone Sentry Zone Valve enhances the overall performance of any zone valve system. The unique patented technology in the Zone Sentry utilizes a microcircuit based logic to control a gear driven electronic actuator which drives a ball valve based body design. All this adds up to a zone valve that leads the industry in energy efficiency, flow capacity (Cv), shutoff pressure rating, ease of installation, diagnostic capability and the number of valves (12) that can be use on a standard 40VA transformer.

Taco Zone Sentry Zone Valves provide on-off, normally open or normally closed control in closed hydronic systems. The valves can be used in a wide variety of heating and condensing cooling applications, primarily designed for use with baseboard, fan coils, radiators, convectors, air handlers, heat pumps and radiant applications.

Features

• Up to 93% less energy usage
• Universal Installation Orientation
• Usable on Condensing Chilled Water Installations
• 12 valves on one 40VA transformer
• Multi-Function LED

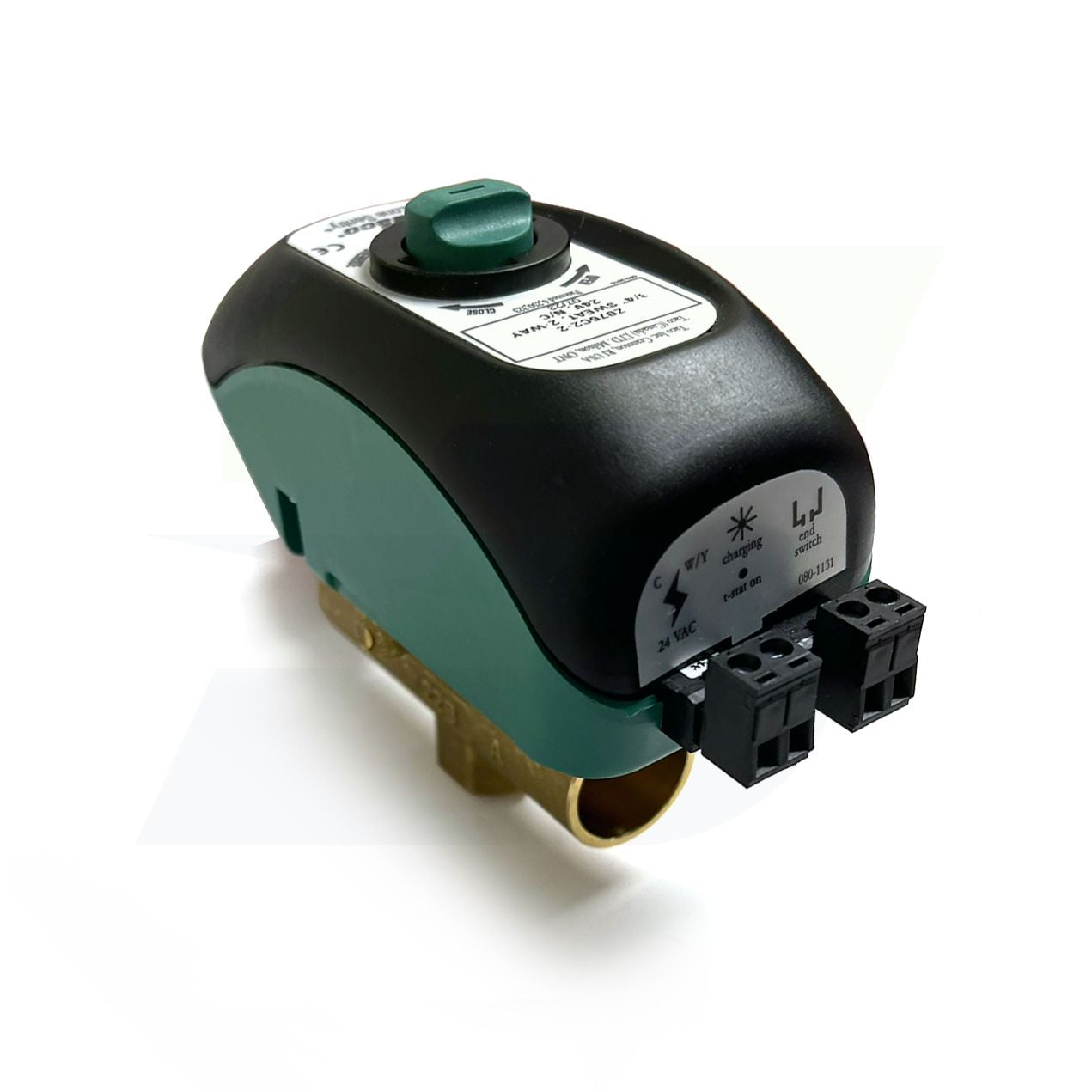

• Quick Connect Wiring

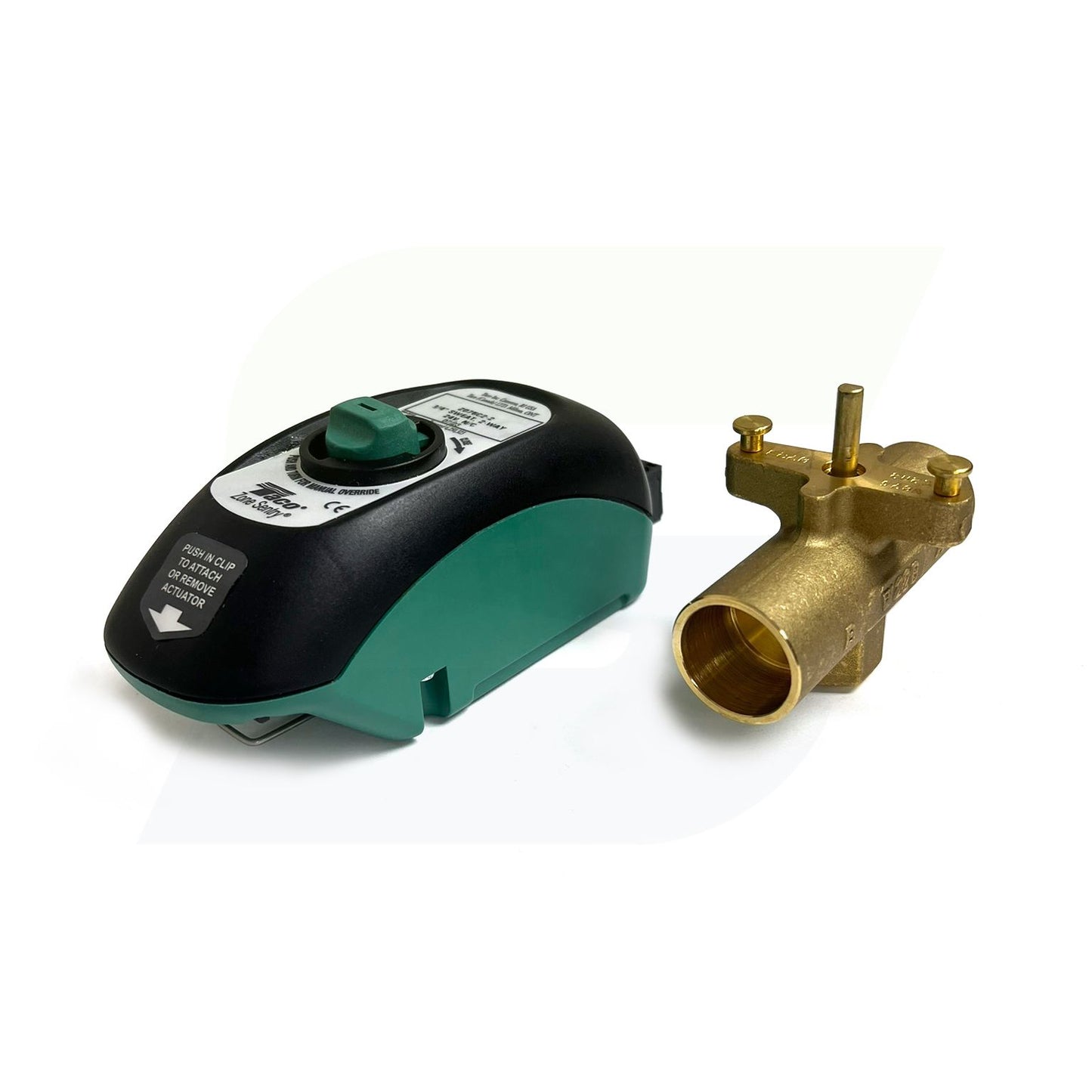

• Push button actuator replacement

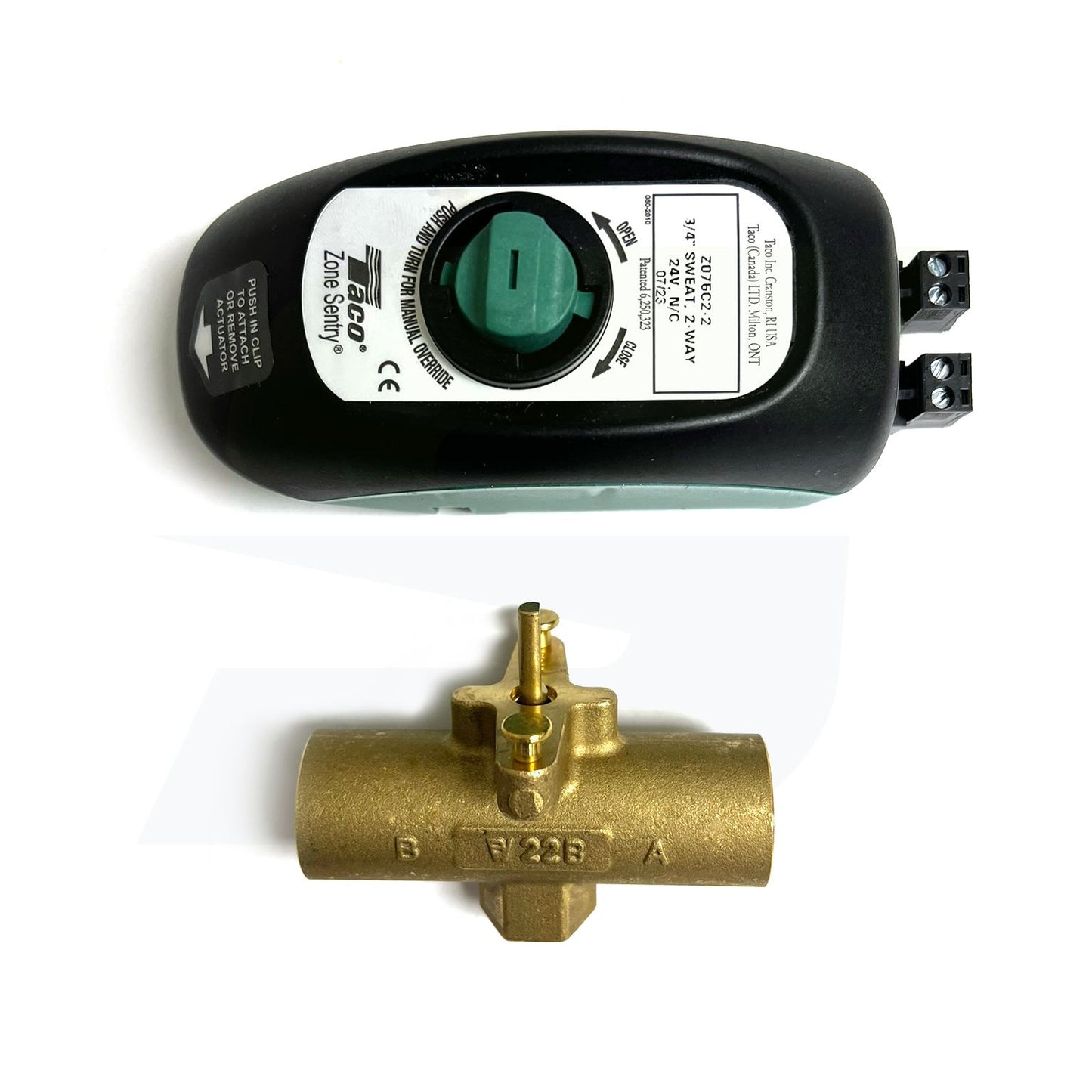

• Easy wire quick connections Manual override button
• Positional indicator
• Max Operating Pressure: 300 PSI
• Max Shutoff Pressure: 125 PSI
• Max Ambient Temp.: 135 degrees F
• Fluid Temp. Range: 20-220 degrees F (-7 - 104 degrees C)

Application:

Taco Zone Sentry zone valves provide on-off, normally open or normally closed control in closed hydronic systems. (See Geo-Sentry for open system application) The valves can be used in a wide variety of heating and condensing cooling applications, primarily designed for use with baseboard, fan coils, radiators, convectors, air handlers, heat pumps and radiant applications
