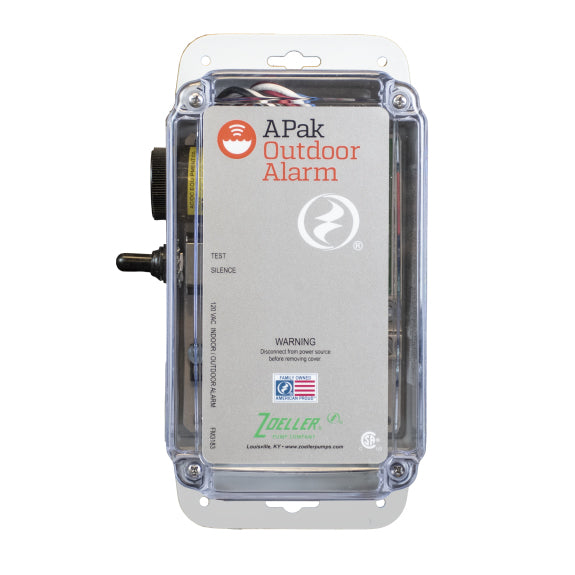

Zoeller 91104-0001 - Apak  Outdoor Alarm

The APak alarm is compact and easy to install. It is CSA approved in a NEMA 1 enclosure. Battery life is over 1 year from 2 AA batteries. Alarm may be used as AC only, DC only, or AC/DC applications. The APak alarm system sounds a horn when a potentially threatening liquid level condition occurs. The horn can be silenced, but the alarm light remains on until the condition is remedied.

A green “POWER ON” light indicates 120 V primary power to the alarm. A low battery chirp feature indicates when the battery should be replaced. A red “ALARM” light indicates a high-level condition.

NOTE: It is always recommended to power the alarm from a separate circuit than the pump to avoid losing power to both during a tripped breaker scenario.

Specifications

• APak Outdoor Alarm System Features
• NEMA 4X Outdoor use per UL 864 for US and Canada
• Alarm system (horn & light) operates to warn of a high-water condition
• Horn is rated 82 decibels at 10’ (3 m)
• Auxiliary dry contacts for high level alarm, 5 Amps
• Operates on separate circuit from pump, 115 VAC • Alarm test and horn silence switch with automatic reset
• Terminal connections for a pump and float switch (Model 91104-0001)
• Can be used with liquids to 140 °F (60 °C)
• 15’ (5 m) float switch (Model 91104-0001)
• 20’ (6 m) float switch, 6’ (2 m) power cord, watertight cord connectors (Model 10-0682)
• 3 year limited warranty (Model 10-2614, 10-0682, 91104-0001)
