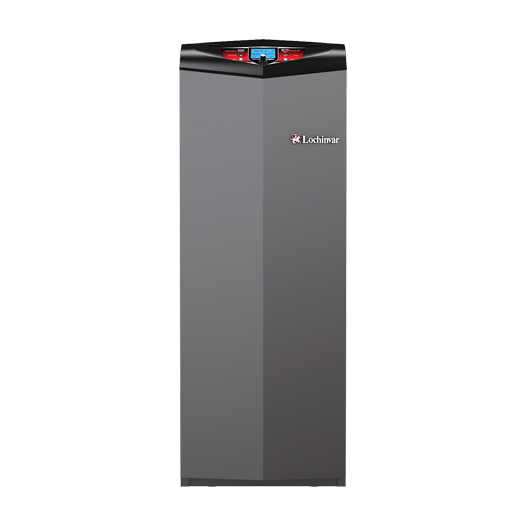

Lochinvar KHB199 - Knight 199,000 BTU Floor Mounted Condensing Fire Tube Boiler

Knight 199 MBH Natural Gas Condensing Boiler Fire Tube

199,000 BTU Output Knight High Efficiency Boiler w/ Fire Tube Heat Exchanger (Floor Mount) (NG)

THE BEST KNIGHT EVER

Lochinvar is proud to introduce the new, improved KNIGHT fire tube boiler—delivering ultimate ease of installation, unmatched operational reliability and serviceability. Recent upgrades keep KNIGHT at the head of the class, allowing it to continue to lead the
charge as the industry-leading high-efficiency residential boiler. With more adjustable parameters than any other competitor, KNIGHT is the most flexible residential boiler you can install.

Today, the new KNIGHT boiler family is available in 13 model options—six floor mounts and seven wall mounts. It also offers a broader range of heating capacity from 55,000 to 399,000 BTU/hr—while continuing to work at 95% AFUE efficiency.

Recent upgrades keep KNIGHT at the head of the class, allowing it to continue to lead the charge as the industry-leading high-efficiency residential boiler. Available in 13 models and more adjustable parameters than any other competitor, KNIGHT is the most flexible residential boiler you can install.

INDUSTRY-LEADING FEATURES

KNIGHT boilers now feature a universal vent connector, making installation easier than ever. It comes with many standard features that allows PVC, CPVC, polypropylene or stainless steel connections directly to the boiler. We've added a variable speed ECM pump as standard equipment, helping to push day-to-day operational efficiency even further. We’ve also redesigned the trap height for the condensate
pump to make installation a snap. Every KNIGHT boiler comes with a built-in 110V convenience outlet. Use this handy standard feature to power your lighting or installation equipment—or for powering the condensate pump.

As in past generations, Lochinvar’s KNIGHT boiler continues to raise the bar for installation flexibility. With our latest product enhancements, we've pushed the KNIGHT boiler’s capabilities and value to levels the industry has never seen before.

ECM PUMP STANDARD EQUIPMENT

ECM pump technology saves electricity & lowers operating costs. Lochinvar now includes this money saving technology as standard equipment on all WHB & KHB boilers. Using the Smart System to continuously match the target Delta T at all modulation rates this technology makes variable speed pump integration simple and easy. Push your savings further by taking advantage of local rebate programs for ECM variable speed pumps. Check with your local utilities company for details.

THE BEST KNIGHT EVER

Universal Vent Connectors
- Allows for easy installation of multiple vent materials.

Fire-Tube Heat Exchanger
- Low pressure drop saves on pump operation costs and provides installation flexibility, while stainless steel fights corrosion.

ECM Variable Pump
- ECM pump technology saves electricity and lowers operating costs. Variable speed pump is now standard equipment on all WHB and KHB boilers.

10:1 Modulation Turndown
- Saves money on fuel costs.

Electrical Outlet
- Comes with a built-in 110V AC convenience plug. Use this handy standard feature to power your lighting or installation equipment—or for powering the condensate pump.

Loch-N-Link® USB Programming
- Allows for saving of parameters onto a USB drive for use at a different job site.

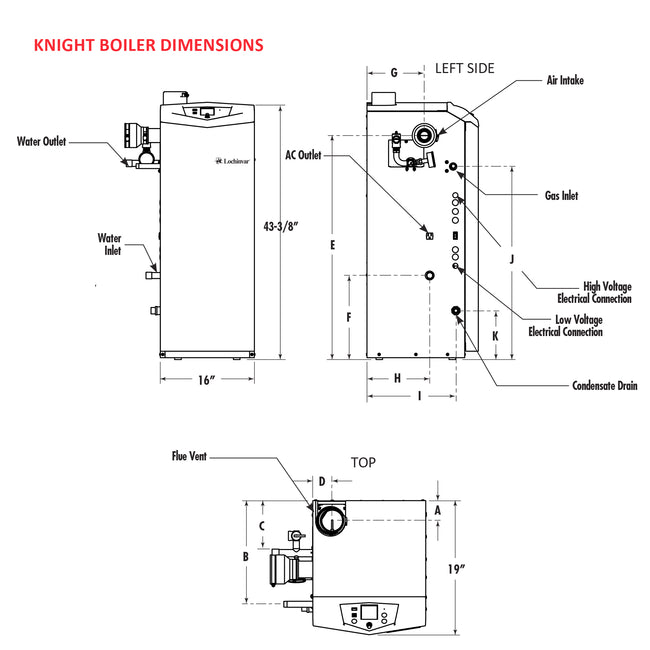

Installation Flexibility
- Top and bottom water connection for the WHB. Top and left side utility connections for the KHB for easy retrofitting, such as a cast iron efficiency upgrade.

CONTROL FROM ANYWHERE

From wherever you are, the CON·X·US option lets you use any Internet-capable device to link up with any SMART SYSTEM branded control on an unlimited number of applicable units. With CON·X·US, you’re always in touch and in control. Do regular CON·X·US checks for all your customers, and let them know you’re monitoring their unit’s performance.

Adjust setpoints, domestic hot water, reset curves, pump delays and more, using the CON·X·US interactive display.
Status alerts via text or e-mail let you know when equipment needs attention
