Easy ECM – Easy to install. Easy to program.

The 0026e is a high-performance, variable speed, wet-rotor circulator with high-efficiency ECM permanent magnet technology. With 5 easy settings, its variable speed performance curves are equivalent to the Taco 0010, 0011, 0012, 0012 3-Speed & 0014. Ideal for large residential and light commercial hydronic heating, chilled water cooling and domestic hot water systems. The 0026e reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators. With a maximum of 26 feet of head and 44 gpm, it is available in either Cast Iron or NSF certified Stainless Steel.

Application:

Maximum of 26 feet of head and 44 gpm
Maximum operating pressure:150 psi (10.3 bar)
Maximum fluid temperature: 230°F (110˚C)
Minimum fluid temperature: 14°F (-10˚C)
Electrical specifications:
- Voltage: 115/208/230V, 50/60 Hz, single phase
- Maximum operating power: 170W
- Maximum amp rating: 1.0 (115V) / .50 (230V)
Equipped with a cast iron casing
Taco circulators are for indoor use only
Acceptable for use with water or maximum of 50% water/glycol solution

Features:

5 easy dial settings to match system requirements- activeADAPT, LOW, MEDIUM, HIGH or 0-10V DC analog or PWM digital signal external input
BIO Barrier protects the pump from system contaminants
SureStart automatic unblocking and air purging mode
Replaces all single speed and 3-speed circulators in its class
Multi-color LED: power on, mode setting and error code diagnostics
Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation
Nut-grabber feature on flanges for easier fit up
Dual electrical knockouts and removable quick-connect terminal strip for easy wiring
Whisper quiet operation
Rotatable control cover to simplify installation

PKZ1900121

Collection: 25.1 to 30.0

Filter products

Type

Category

Brand

Pump Casing Material

Pump Max Flow (GPM)

Pump Max Head (Ft)

Pump Horse Power

Pump Speeds

Price

0026e - ECM High-Efficiency Circulator - Cast Iron 50 GPM - Rotated Flanges

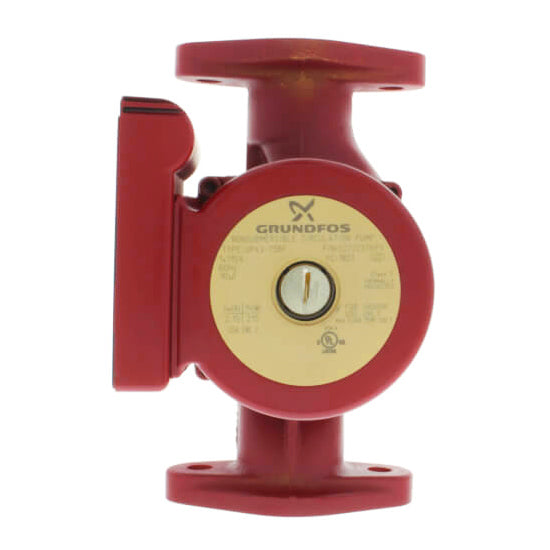

UP43-75BF 1/6 HP Circulator Pump
